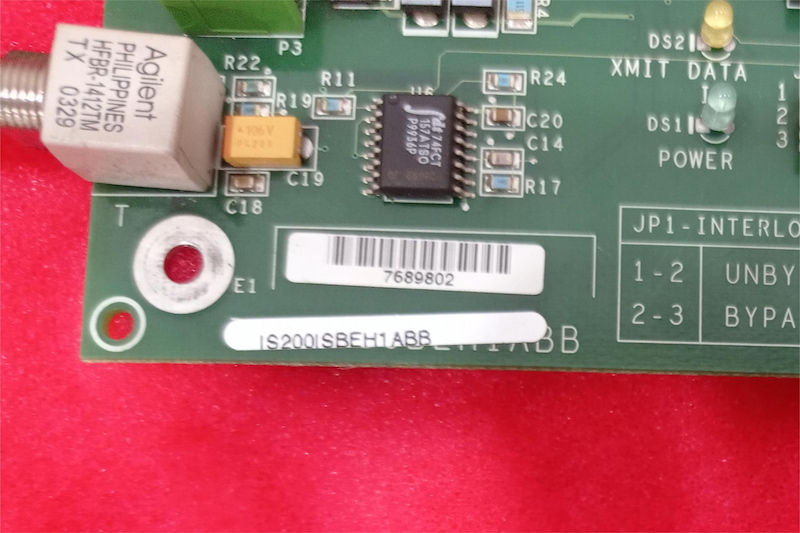

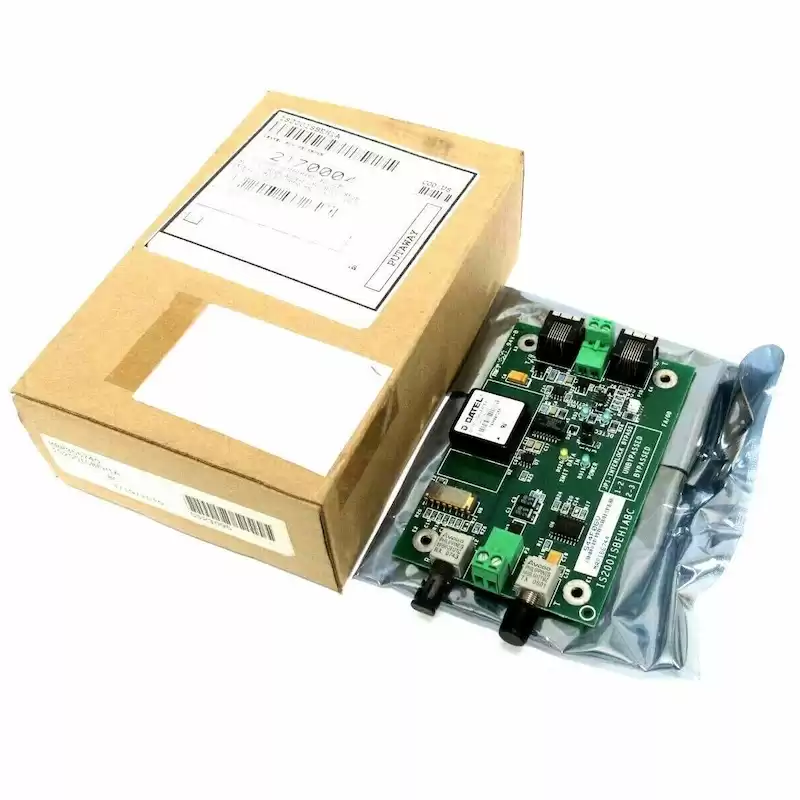

IS200ISBEH1ABB ISBus Extender Board
The IS200ISBEH1ABB ISBus Extnder Boud (ISBE) is connected between an ISBus fullduplex source (either a BALA or an ACL module) and the ISBus. It provides a fiber-optic to electrical conversion of the RS-485 signals and the capability to bypass a node of the ISBus when either power to the node is interrupted or interlock connection within the full duplex interface is opened.
A bypass relay is part of the ISBE board. It connects the transmit signals from either the full duplex input (PlA) or the AUX XMIT DATA IN (P1B) to the fiber optic transmit outout data (P2). This is done through the transmit electrical-to-optical conversion and the optical receiv- data-input connector (P3) of the ISBus, to the full duplex connector through the receive optical-to-electrical converter when 24 V dc is available (on either P1A or TB2) and the interlock connection on P1A or JPl is closed.
If the 24 V dc is not supplied to the ISBE board the follovying occurs:
· The transmit connection between P1 nd P2 is interrupted (broken).
· The receive connection between P3 and P1 is interrupted (broken).
· The connection between the receive input (P3) and the transmit output (P2) is made such that receive optical input data are converted to electrical signals, optionally retimed and reconverted to an optical output signals.
The dc-dc converter is capable of accepting an input voltage of 18 to 36 V and has a maximum input power requirement of 5 watts.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200ISBEH1ABB |
| Ordering Information |
IS200ISBEH1A |
| Product Catalog |
Mark VI |
| Description |
ISBus Extender Board |
| Voltage |
24 Vdc |
| Power |
5 watts |
| Dimensions |
12 cm x 8 cm x 6 cm |
| Weight |
0.1 kg |
