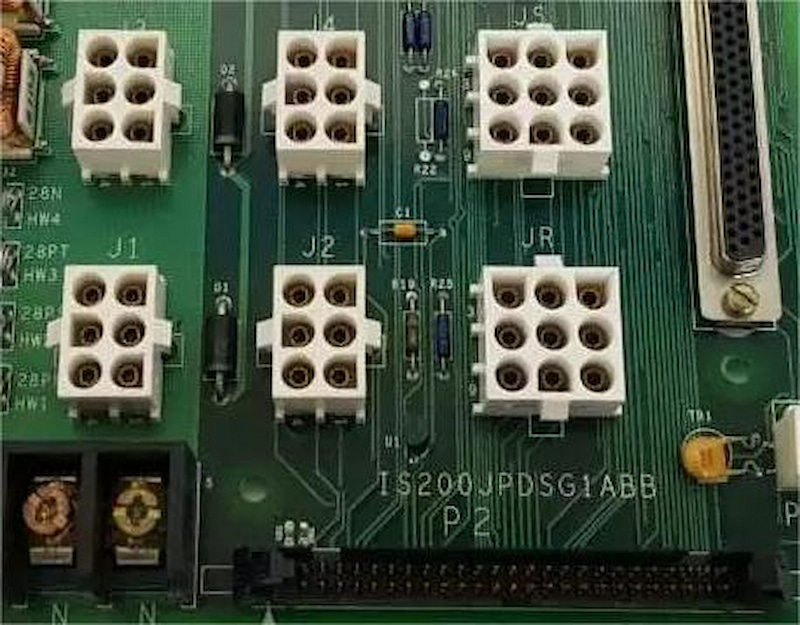

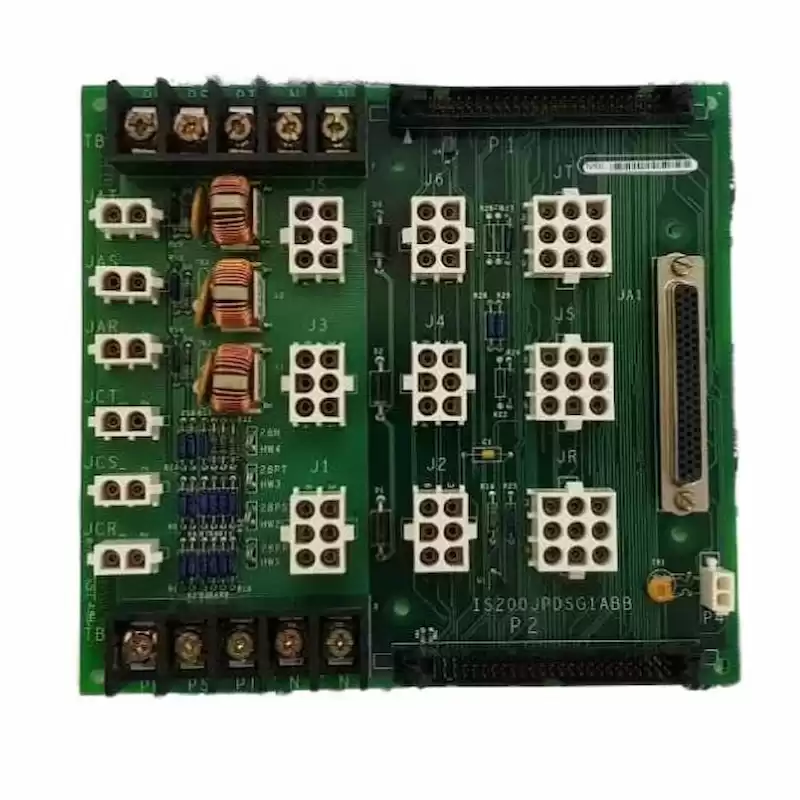

IS200JPDSG1ACB Power Distribution Board
The IS200JPDSG1ACB is a Power Distribution Board, manufactured and designed by General Electric as part of the Mark VIe Series used in the GE Speedtronic Control System.
The 28 V Power Distribution (JPDS) board receives 28 V dc input power from external ac/dc or dc/dc converters and distributes power to the control system. JPDS integrates into the PDM system feedback offered through the PPDA I/O pack.
Compatibility:
The IS200JPDS board is compatible with the feedback signal P1/P2 connectors on JPDB, JPDF, and JPDE leading to a PPDA I/O pack. The DC-62 connector on JPDS is compatible with the IS220PPDA I/O pack.
Installation:
JPDS mounts in a metal holder, which fits on a vertical DIN-rail next to other power distribution boards. Optionally, JPDS is also available with a metal holder designed for direct mounting. Refer to the wiring diagrams for power input and output routing. There is a 50-pin diagnostic connector mounted on the top and bottom of the board.
Grounding:
The IS200JPDSG1ACS board is grounded through the sheet metal bracket to the underlying back base. In most cases, this can be the system FE.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200JPDSG1ACB |
| Ordering Information |
IS200JPDSG1A |
| Product Catalog |
Mark VIe |
| Description |
Power Distribution Board |
| Voltage |
28 Vdc |
| Current |
25 A |
| Dimensions |
18 cm x 18 cm x 12 cm |
| Weight |
0.5 kg |
