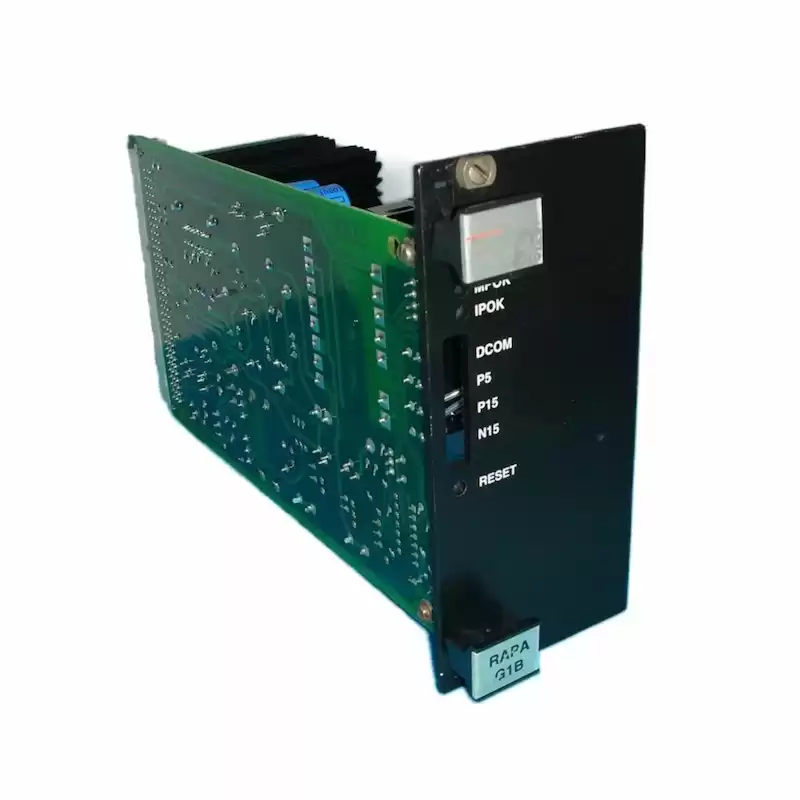

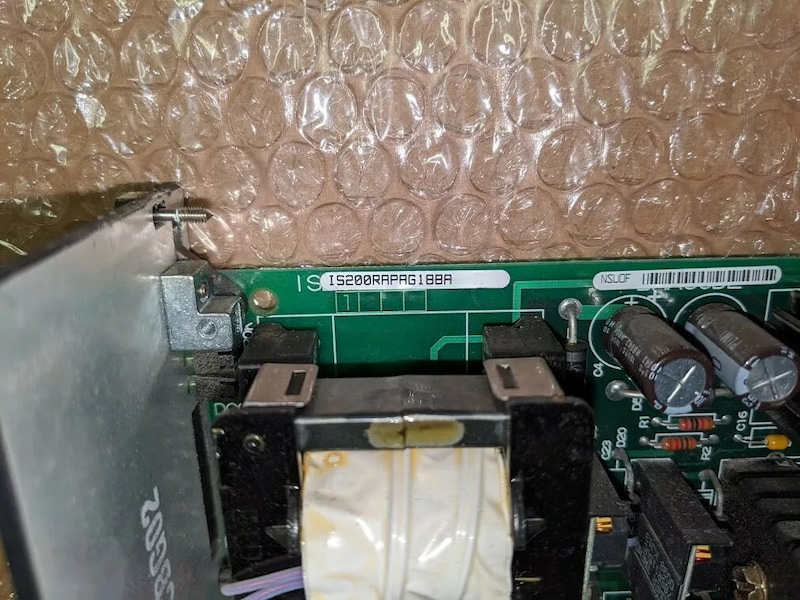

IS200RAPAG1BBA Rack Power Supply Board
The IS200RAPAG1BBA Rack Power Supply Board (RAPA) accepts a 48 V,25 kHz square wave input and provides the following:
· The dc control voltages required by other boards in the Innovation Series board rack (through the P1 connector).
· The "Power ON" and "Master RESET" functions for the control.
Two LED indicators and four test points provide diagnostic information on the board (one protective fuse is also provided). The RAPA board is mounted in the Innovation Series board rack. The RAPA board also includes a parallel-style bus host processor. All standard bus signals are interfaced through the P1 connector. There are two functional revisions of the RAPA board currently in service, the IS200RAPAG1A and the IS200RAPAG1B . There are mirror differences in the output and reference voltage tolerances between them.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200RAPAG1BBA |
| Ordering Information |
IS200RAPAG1B |
| Product Catalog |
Mark VI |
| Description |
Rack Power Supply Board |
| Voltage |
48 V |
| Square Wave |
25 kHz |
| Dimensions |
18 cm x 12 cm x 12 cm |
| Weight |
1 kg |
