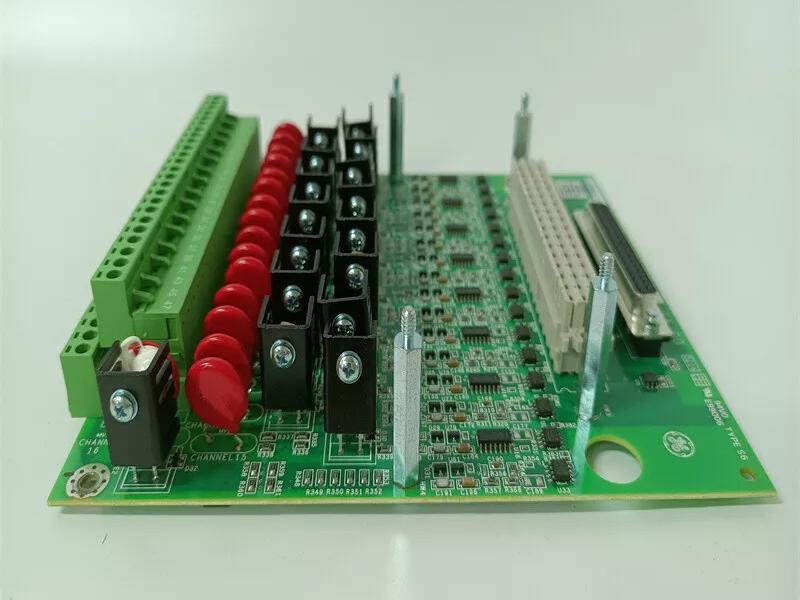

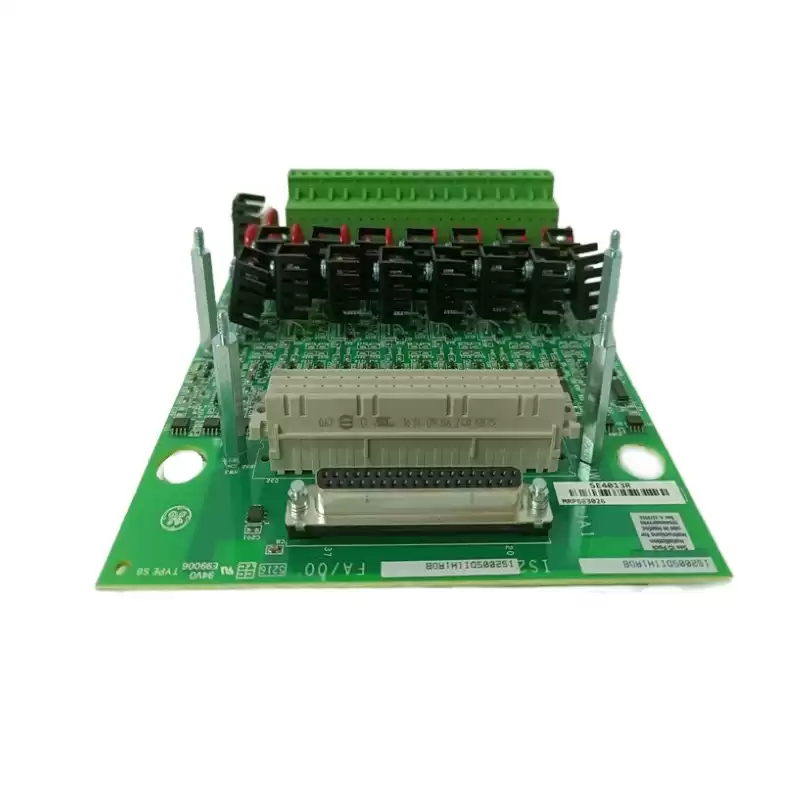

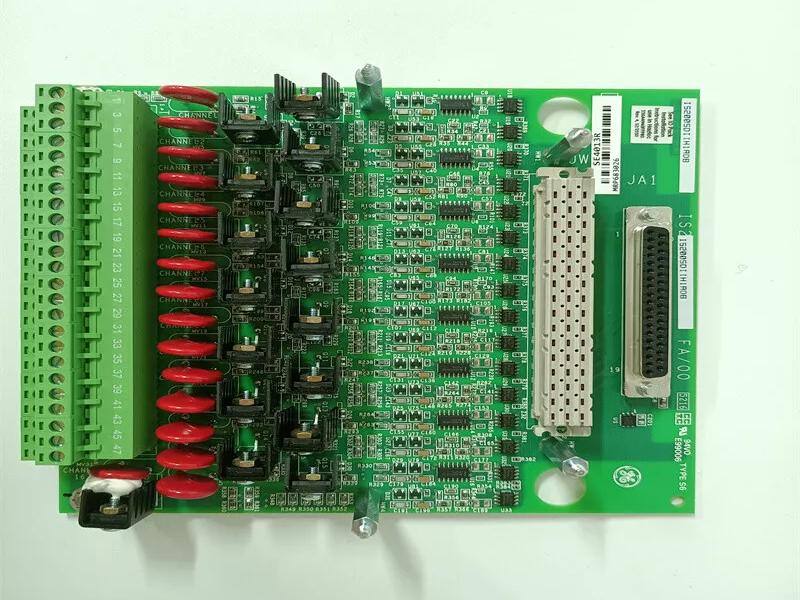

IS200SDIIH1A IS200SDIIH1ADB Contact Input With Point Isolation Terminal Board
The Contact Input with Point Isolation (SDII) terminal board provides 16 point isolated voltage detection circuits to sense a range of voltages across relay contacts, fuses, and switches and other contacts. IS200SDIIH1 has pluggable Euro-style box terminals and a connector that accepts different option boards.
Three terminals are provided for each contact input channel. Each channel can accept different voltage levels as follows: 24 V dc/ 48 V dc/ 125 V dc/ 250 V dc/ 115 V ac rms / 230 V ac rms. If PDII is used with SDII only, then all 16 channels are point-isolated channels.
There are three groups of WDII option boards that connect to SDIIH1A. If the option board WDII is connected, the point isolated channels become group isolated channels where the system wetting voltage is provided through WDII. WDII boards have an isolated voltage detector circuit similar to SDII to monitor the wetting voltage.
Using option board WDIIH1, all 16 channels can be system wetted with 24 V dc, 115 V ac rms, or 230 V ac rms. When using WDIIH1 each of the 16 channels can be individually set and configured as point isolated and each channel can accept a different voltage level as needed. A mix of point isolation and group isolation is possible in this configuration.
Using option board WDIIH2, all 16 channels can be system wetted with 48 V dc. When using WDIIH2, each of the 16 channels can be individually set and configured as point isolated and each channel can accept a different voltage level as needed. A mix of point isolation and group isolation is possible in this configuration.
Using option board WDIIH3, all 16 channels can only be system wetted with 125 V dc. With WDIIH3, there is no option provided to configure channels as point isolated.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200SDIIH1ADB |
| Ordering Information |
IS200SDIIH1A |
| Product Catalog |
Mark* VIe |
| Description |
Contact Input With Point Isolation Terminal Board |
| Voltage |
24 Vdc |
| Current |
200 mA |
| Dimensions |
18 cm x 16 cm x 8 cm |
| Weight |
0.5 kg |
