GE IS200STAIH2ABA

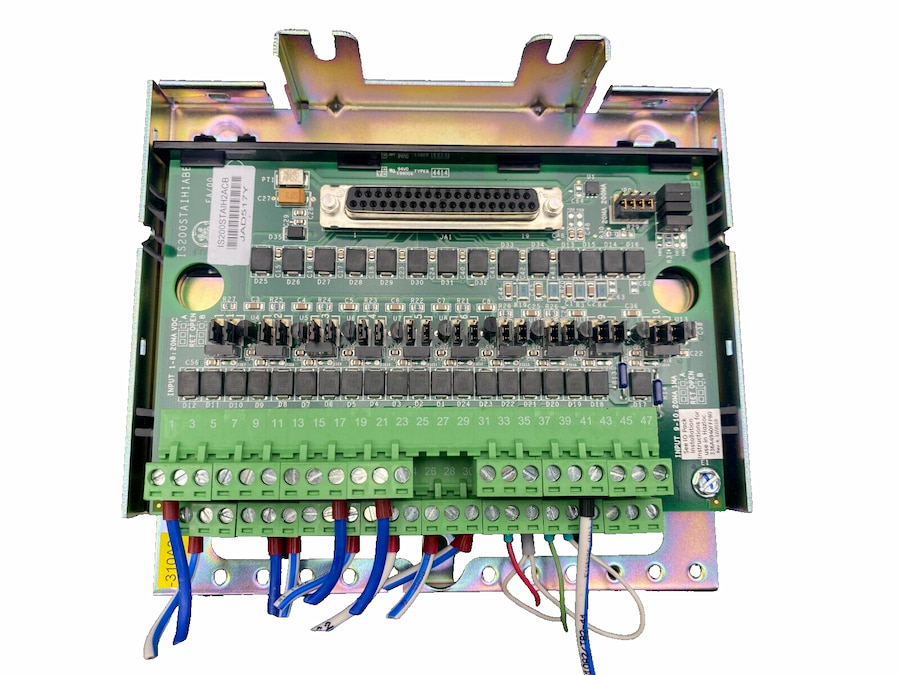

The Simplex Analog Input (STAI) terminal board is a compact analog input terminal board that accepts 10 analog inputs and two analog outputs, and connects to the pack. The 10 analog inputs accommodate two-wire, three-wire, four-wire, or externally powered transmitters. The two analog outputs are 0-20 mA but one can be jumper configured to 0-200 mA current. Only a simplex version of the board is available.
High-density Euro-block type terminal blocks are used. An on-board ID chip identifies the board to the pack for system diagnostic purposes.
Installation

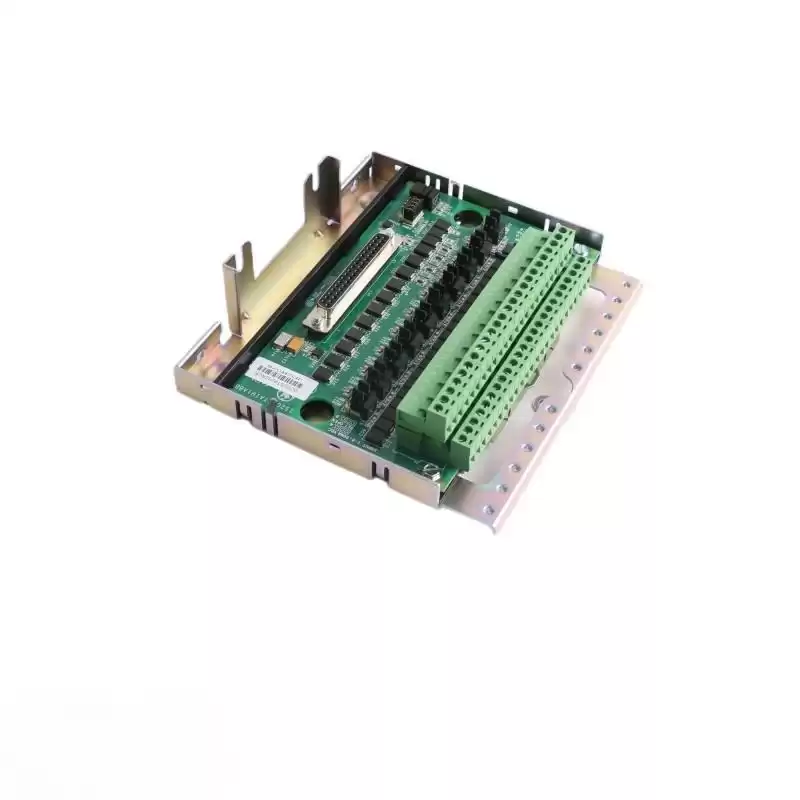

The STAI plus a plastic insulator mounts on a sheet metal carrier that then mounts on a DIN-rail. Optionally, the STAI plus insulator mounts on a sheet metal assembly and then bolts directly to a cabinet. There are two types of Euro-block terminal blocks available as follows:
• STAI_1 has a permanently mounted terminal block with 48 terminals.
• STAI_2 has a right angle header accepting a range of commercially available pluggable terminal blocks, with a total of 48 terminals.
Typically #18 AWG wires (shielded twisted pair) are used. I/O cable shield terminal is provided adjacent to the terminal blocks.
The following types of analog inputs and outputs can be accommodated:
• Analog input, two-wire transmitter
• Analog input, three-wire transmitter
• Analog input, four-wire transmitter
• Analog input, externally powered transmitter
• Analog input, voltage ±5 V, ±10 V dc
• Analog output, 0-20 mA current
• Analog output, 0-200 mA current

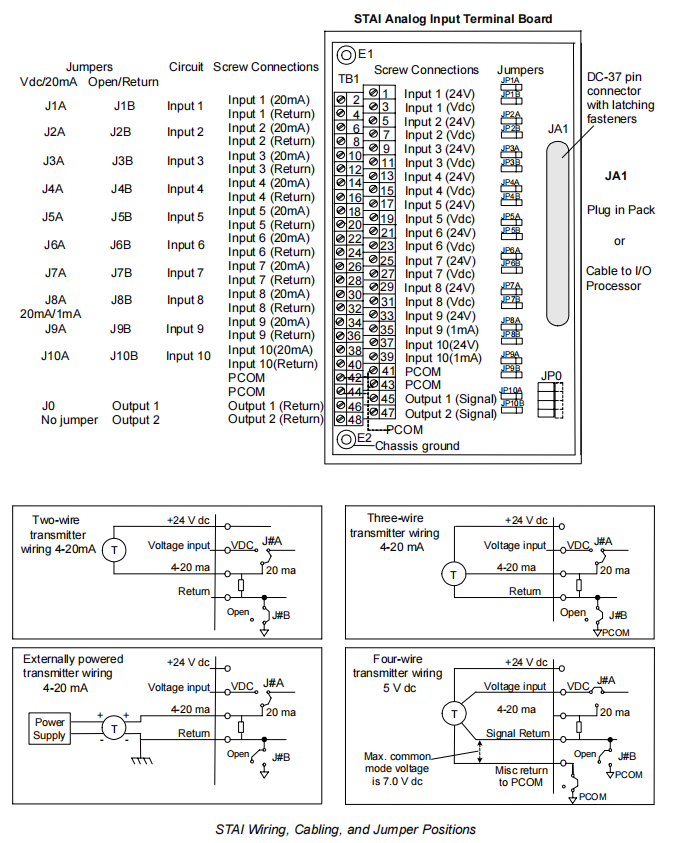

Wiring, jumper positions, and cable connections display on the wiring diagram.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200STAIH2ABA |
| Ordering Information |
IS200STAIH2A |
| Product Catalog |
Mark VIe |
| Description |
Simplex Analog Input Terminal Board |
| Voltage |
24 Vdc |
| Current |
4-20 mA |
| Dimensions |
16 cm x 11 cm x 5 cm |
| Weight |
0.2 kg |
