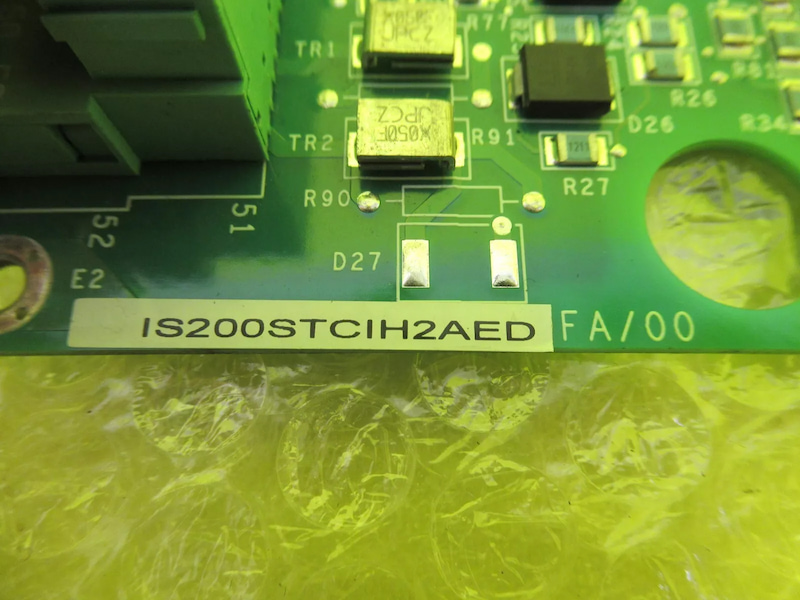

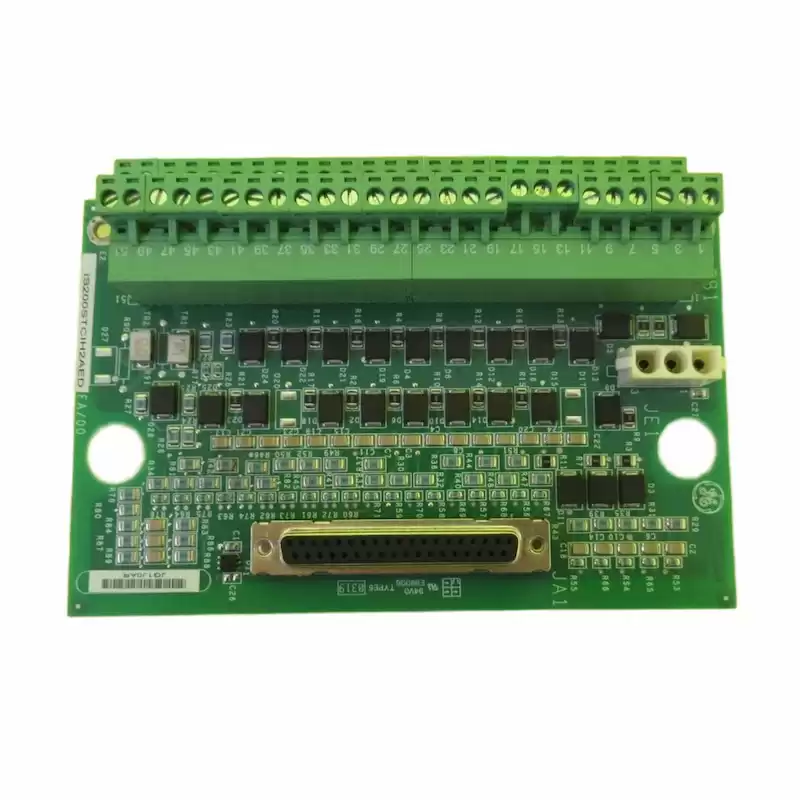

IS200STCIH2AED Simplex Contact Input Terminal Board
The Simplex Contact Input (STCI) terminal board is a compact contact input terminal board designed for DIN-rail or flat mounting. The STCI board accepts 24 contact inputs that are supplied with a nominal 24, 48, and 125 V dc excitation from an external source. The contact inputs have noise suppression to protect against surge and high-frequency noise. The STCI works with Mark VIe and Mark VIeS systems.
Installation
The STCI plus a plastic insulator mounts on a sheet metal carrier that then mounts on a DIN rail. Optionally the STCI plus insulator mounts on a sheet metal assembly that then bolts in a cabinet. The contact inputs are wired directly to the terminal block, typically using #18 AWG wires. Shields should be terminated on a separate bracket.
Two types of Euro-block terminal blocks are available:
• STCIH1 has a permanently mounted terminal block with 52 terminals.
• STCIH2, STCIH4, and STCIH6 has a right-angle header accepting a range of commercially available pluggable terminal blocks, with a total of 52 terminals.
Operation
The function and on-board signal conditioning are the same as those on TBCI, they are scaled for 24, 48, and 125 V dc excitation. The input excitation range is 16 to 32 V dc, 32 to 64 V dc, and 100 to 145 V dc respectively. The threshold voltage is 50% of the excitation voltage. The contact sensing circuits are displayed in the figure. Contact input currents are resistance limited to 2.5 mA on the first 21 circuits, and 10 mA on circuits 22 through 24. The 24 V dc supply is current limited to 0.5 A using polymer positive temperature coefficient fuses that can be reset.
Filters reduce high-frequency noise and suppress surge on each input near the point of signal entry. The discrete input voltage signals go to the I/O processor which passes them through optical isolators, converts them to digital signals, and transfers them to the controller.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200STCIH2AED |
| Ordering Information |
IS200STCIH2A |
| Product Catalog |
Mark VIe |
| Description |
Simplex Contact Input Terminal Board |
| Voltage |
24 Vdc |
| Current |
0.5 A |
| Dimensions |
16 cm x 11 cm x 5 cm |
| Weight |
0.2 kg |
