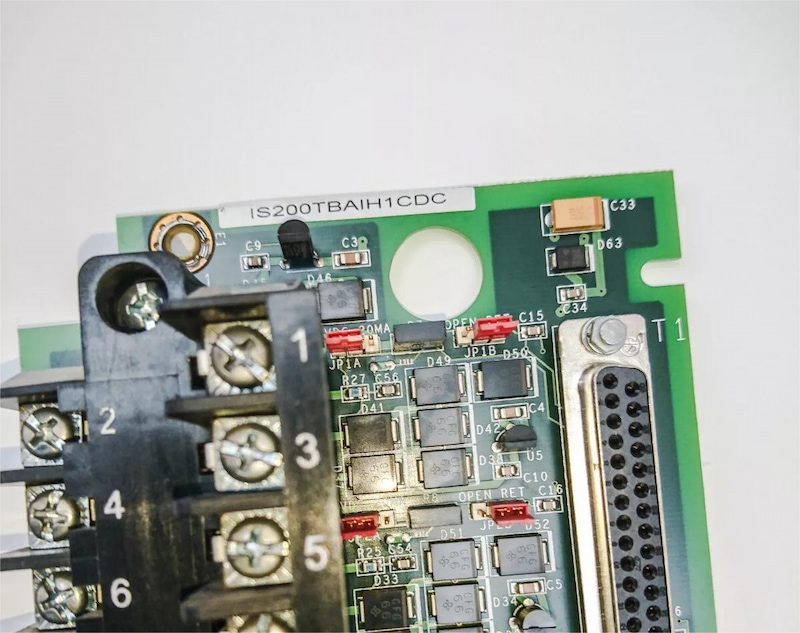

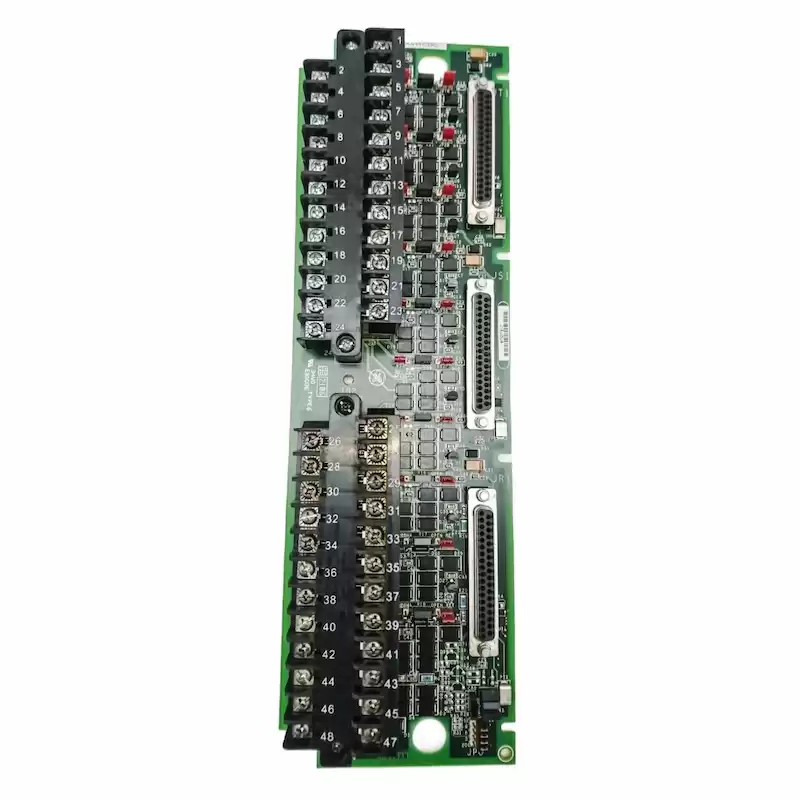

IS200TBAIH1CDC Analog Input/Output Terminal Board
The Analog Input/Output (TBAI) terminal board supports 10 analog inputs and 2 outputs. The 10 analog inputs accommodate two-wire, three-wire, four-wire, or externally powered transmitters. The analog outputs can be set up for 0-20 mA or 0-200 mA current. Inputs and outputs have noise suppression circuitry to protect against surge and high frequency noise.
TBAI has three DC-37 pin connectors provided on TBAI for connection to the I/O processors. Simplex applications are supported using a single connector (JR1). TMR applications are supported using all three connectors.
In TMR applications, the input signals are fanned to the three connectors for the R, S, and T controls. TMR outputs combine the current of the three connected output drivers and determine the total current with a measuring shunt.TBAI then presents the total current signal to the I/O processors for regulation to the commanded set point.
Installation:
Connect the input and output wires directly to two I/O terminal blocks mounted on the terminal board. Each block is held down with two screws and has 24 terminals accepting up to #12 AWG wires. A shield terminal attachment point is located adjacent to each terminal block.
TBAI can accommodate the following analog I/O types:
• Analog input, two-wire transmitter
• Analog input, three-wire transmitter
• Analog input, four-wire transmitter
• Analog input, externally powered transmitter
• Analog input, voltage ±5 V, ±10 V dc
• Analog output, 0-20 mA
• Analog output, 0-200 mA
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200TBAIH1CDC |
| Ordering Information |
IS200TBAIH1C |
| Product Catalog |
Mark VIe |
| Description |
Analog Input/Output Terminal Board |
| Voltage |
24 Vdc |
| Current |
0-200 mA |
| Dimensions |
34 cm x 11 cm x 5 cm |
| Weight |
0.3 kg |
