GE IS200TBAOH1C Analog Output Terminal Board
SPECIFICATIONS:
Part Number: IS200TBAOH1C
Manufacturer: General Electric
Series: Mark VI
Number of channels: 16
Analog output current: 0-20 mA
Size: 10.16 cm wide x 33.02 cm
Temperature: -30 to +65 C
Power Requirements: +5 V dc
Operating temperature: -30 to + 65oC
Technology: Surface Mount
Size: 17.8 cm wide x 33.02 cm
Availability: In Stock
Country of Origin: United States
Manual: GEH-6421M

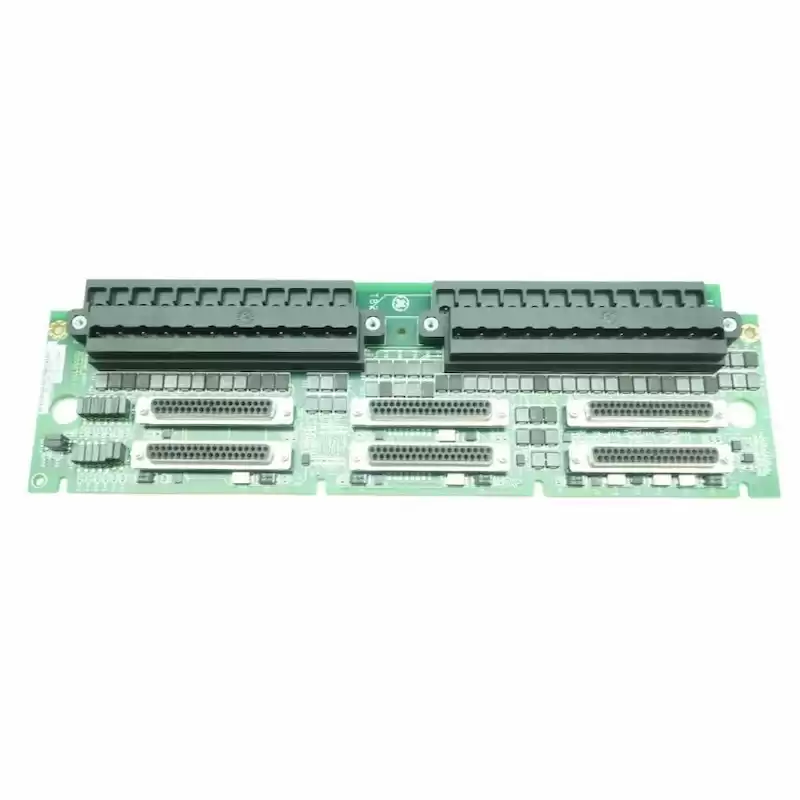

The Analog Output (TBAO) terminal board supports 16 analog outputs with a current range of 0-20 mA. Current outputs are generated by the I/O processor, which can be local (Mark* VIe control) or remote (Mark VI control). The outputs have noise suppression circuitry to protect against surge and high-frequency noise. TBAO has two barrier-type terminal blocks for customer wiring and six D-type cable connectors.
Mark VI Systems:
In Mark VI systems, TBAO works with VAOC processor and supports simplex and TMR applications. Cables with molded plugs connect TBAO to the VME rack where the VAOC board is located. In TMR systems, TBAO is cabled to three VOAC boards.
Mark VIe Systems:
In Mark VIe systems, TBAO works with the PAOC I/O pack and supports simplex applications only. The I/O packs plug into the D-type connectors and communicate over Ethernet with the controller.
Installation:
Attach TBAO to a vertical mounting plate. Connect the wires for the 16 analog outputs directly to the two I/O terminal blocks mounted on the left of the board. Each point can accept two 3.0 mm (#12AWG) wires with 300 V insulation per point using spade or ring type lugs. Each block is held down with two screws and has 24 terminals. A shield terminal strip attached to chassis ground is located immediately to the left of each terminal block. Make cable
connections to TBAO follows:
• In Mark VI systems, connect cables with molded plugs to the D-type connectors on the TBAO and to the VME rack where the VAOC processor is located. Use two cables for simplex or six cables for TMR.
• In Mark VIe systems, plug the PAOC I/O packs directly into selected D-type connectors. Special side mounting brackets support the packs.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200TBAOH1CCB |
| Ordering Information |
IS200TBAOH1C |
| Product Catalog |
Mark VI, Mark VIe |
| Description |
Analog Output Terminal Board |
| Voltage |
24 Vdc |
| Current |
0-20 mA |
| Dimensions |
34 cm x 11 cm x 3 cm |
| Weight |
0.3 kg |
