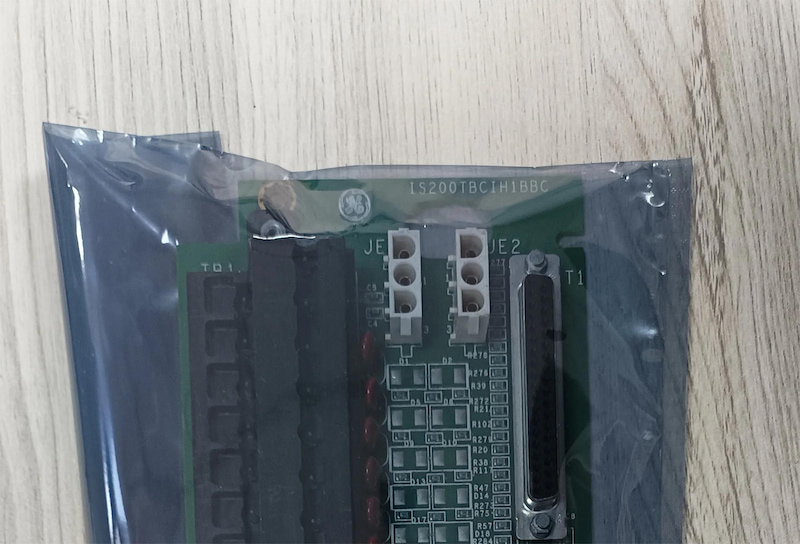

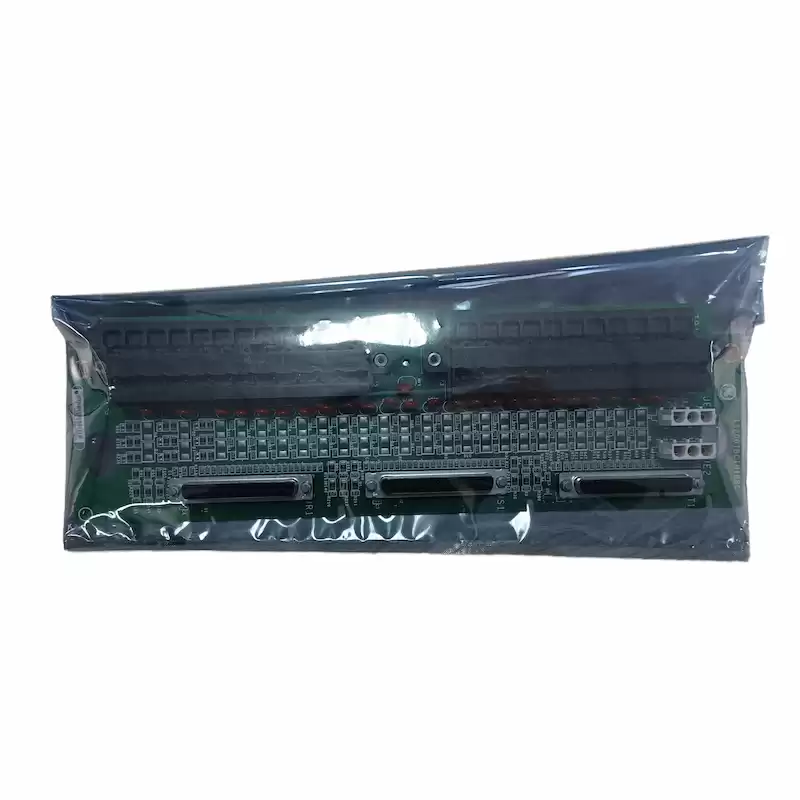

GE IS200TBCIH1B IS200TBCIH1BBC
The Contact Input with Group Isolation (TBCI) terminal board accepts 24 dry contact inputs wired to two barrier-type terminal blocks. Dc power is wired to TBCI for contact excitation. The contact inputs have noise suppression circuitry to protect against surge and high-frequency noise.
Mark VI Systems
In the Mark* VI system, TBCI works with VTCC/VCRC and supports simplex and TMR applications. Cables with molded plugs connect TBCI to VME rack where the VCCC or VCRC processor board is located. Both board versions TBCIH_B and TBCIH_C work correctly with Mark VI and are functionally identical.
Mark VIe Systems
In the Mark VIe system, the TBCI works with the PDIA I/O pack and supports simplex, dual, and TMR applications. One, two, or three PDIAs can be plugged directly into the TBCI. Mark VIe requires the C version of this board for correct mechanical alignment of connector JT1 with I/O pack mechanical support.
Installation Wiring
Connect the wires for the 24 dry contact inputs directly to two I/O terminal blocks on the terminal board. These blocks are held down with two screws and can be unplugged from the board for maintenance. Each block has 24 terminals accepting up to #12 AWG wires. A shield terminal strip attached to chassis ground is located immediately to the left of each terminal block.
Power Connection

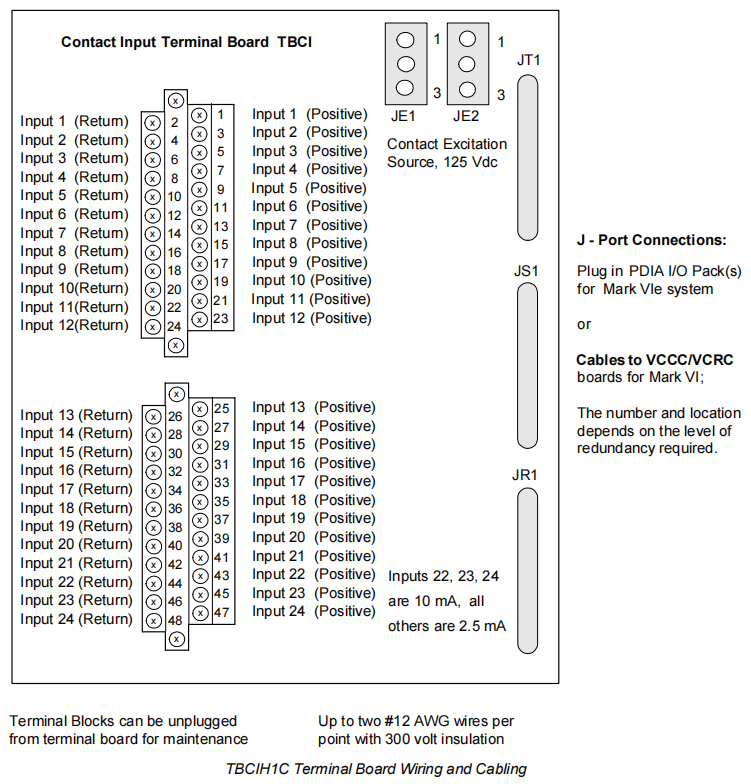

Connect TBCI to the contact excitation voltage source using plugs JE1 and JE2, as shown in following figure.
Cabling Connections
In a simplex system, connect TBCI to the I/O processor using connector JR1. In a TMR system, connect TBCI to the I/O processors using connectors JR1, JS1, and JT1. Cables or I/O packs are plugged in depending on the type of Mark VI or Mark VIe system, and the level of redundancy.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200TBCIH1BBC |
| Ordering Information |
IS200TBCIH1B |
| Product Catalog |
Mark VI or Mark VIe |
| Description |
Contact Input with Group Isolation Terminal Board |
| Voltage |
125 Vdc |
| Current |
2.5 mA |
| Dimensions |
34 cm x 11 cm x 3 cm |
| Weight |
0.3 kg |
