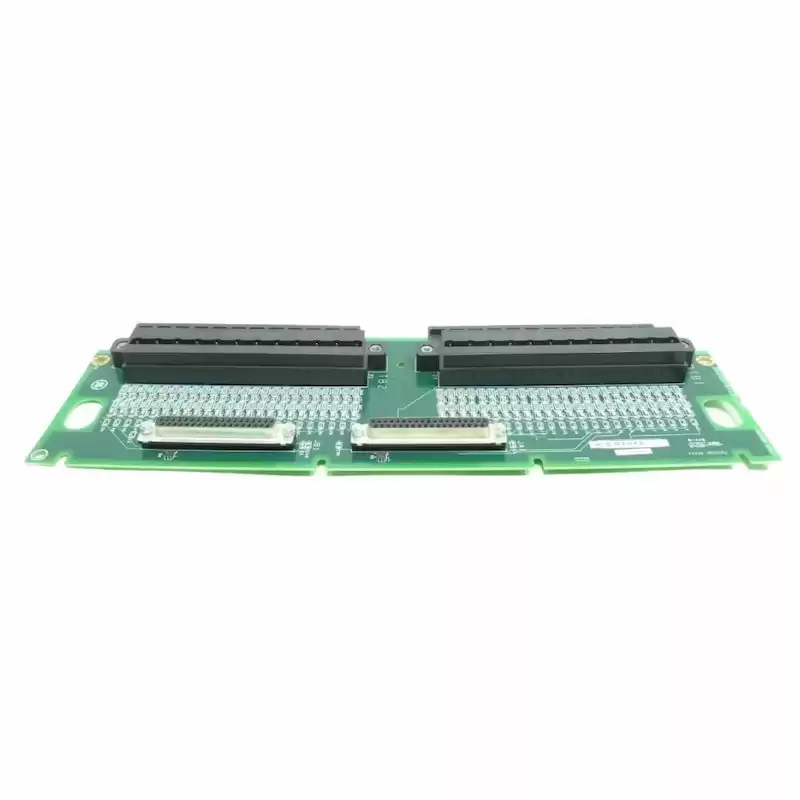

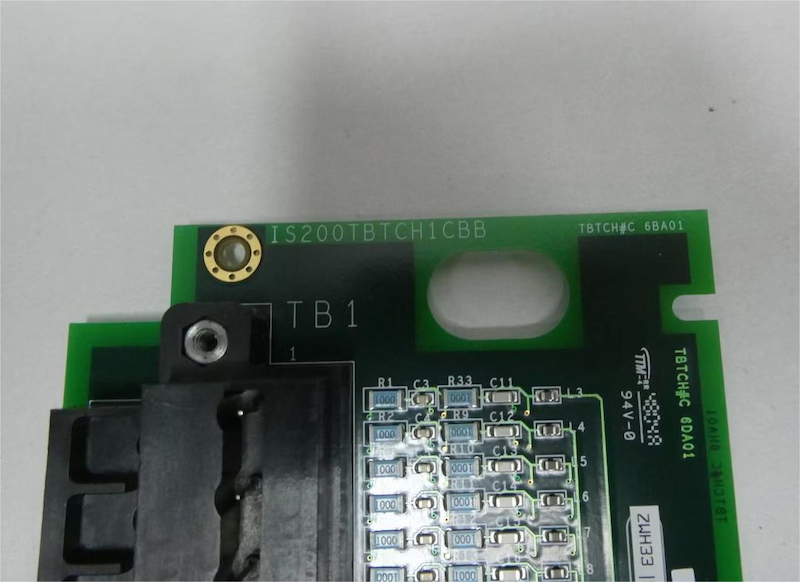

IS200TBTCH1CBB Thermocouple Input Terminal Board
The Thermocouple Input (TBTC) terminal board accepts 24-type E, J, K, S, or T thermocouple inputs. It accepts additional B, N and R types of thermocouple inputs only when used with PTCCH2 in Mark VIe. These inputs are wired to two barriertype blocks on the terminal board. TBTC communicates with the I/O processor through DC-type connectors. Two types of the TBTC are available, as follows:
• TBTCH1C for simplex applications has two DC-type connectors.
• TBTCH1B for TMR applications has six DC-type connectors.
Mark VI Systems
In the Mark VI system, TBTC works with the VTCC processor and supports simplex and TMR applications. One TBTCH1C connects to the VTCC with two cables. In TMR systems, TBTCH1B connects to three VTCC boards with six cables.
Mark VIe Systems
In the Mark VIe system, TBTC works with the PTCC I/O pack and supports simplex, dual, and TMR applications. In simplex systems, two PTCC packs plug into the TBTCH1C for a total of 24 inputs. With the TBTCH1B, one, two, or three PTCC packs can be connected, supporting a variety of system configurations.
• Simplex pack – 12 inputs
• Simplex packs – 24 inputs
• TMR packs – 12 inputs
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200TBTCH1CBB |
| Ordering Information |
IS200TBTCH1C |
| Product Catalog |
Mark VI or Mark VIe |
| Description |
Thermocouple Input Terminal Board |
| Voltage |
24 Vdc |
|
Number of channels
|
24 channels |
| Dimensions |
34 cm x 12 cm x 3 cm |
| Weight |
0.3 kg |
