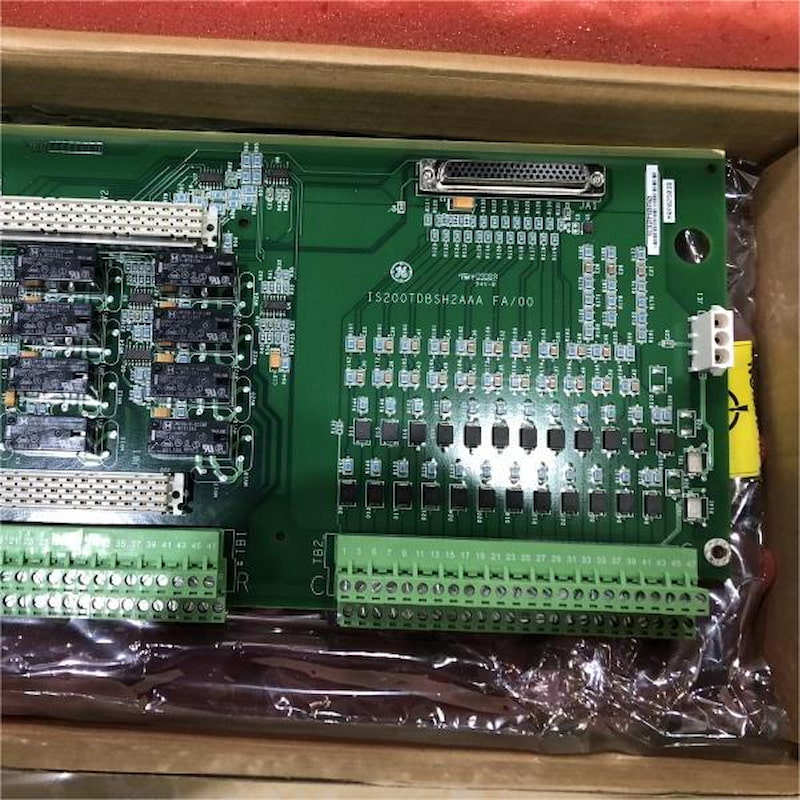

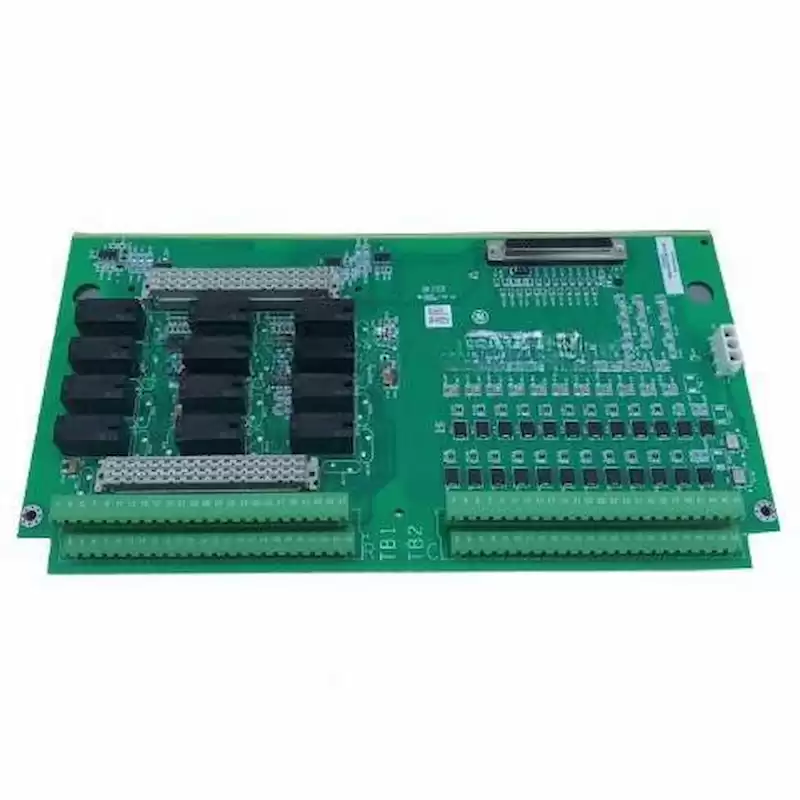

IS200TDBSH2AAA Simplex Discrete Input/Output Terminal Board
The Simplex Discrete Input/Output (TDBS) terminal board is a simplex contact input/output terminal board designed for DIN-rail or flat mounting. The TDBS board accepts 24 group isolated contact inputs that are supplied with a nominal 24, 48, or 125 Vdc wetting voltage from an external source. The contact inputs have noise suppression to protect against surge and high-frequency noise. TDBS provides 12 form-C relay outputs and accepts different option cards to expand relay functions.
Mark VIe Systems
In the Mark* VIe systems, the PDIO I/O pack works with the TDBS. The I/O pack plugs into the D-type connector and communicates with the controller over Ethernet. A single connection point for PDIO is provided with one or two network connections possible from PDIO to the controllers.
Installation

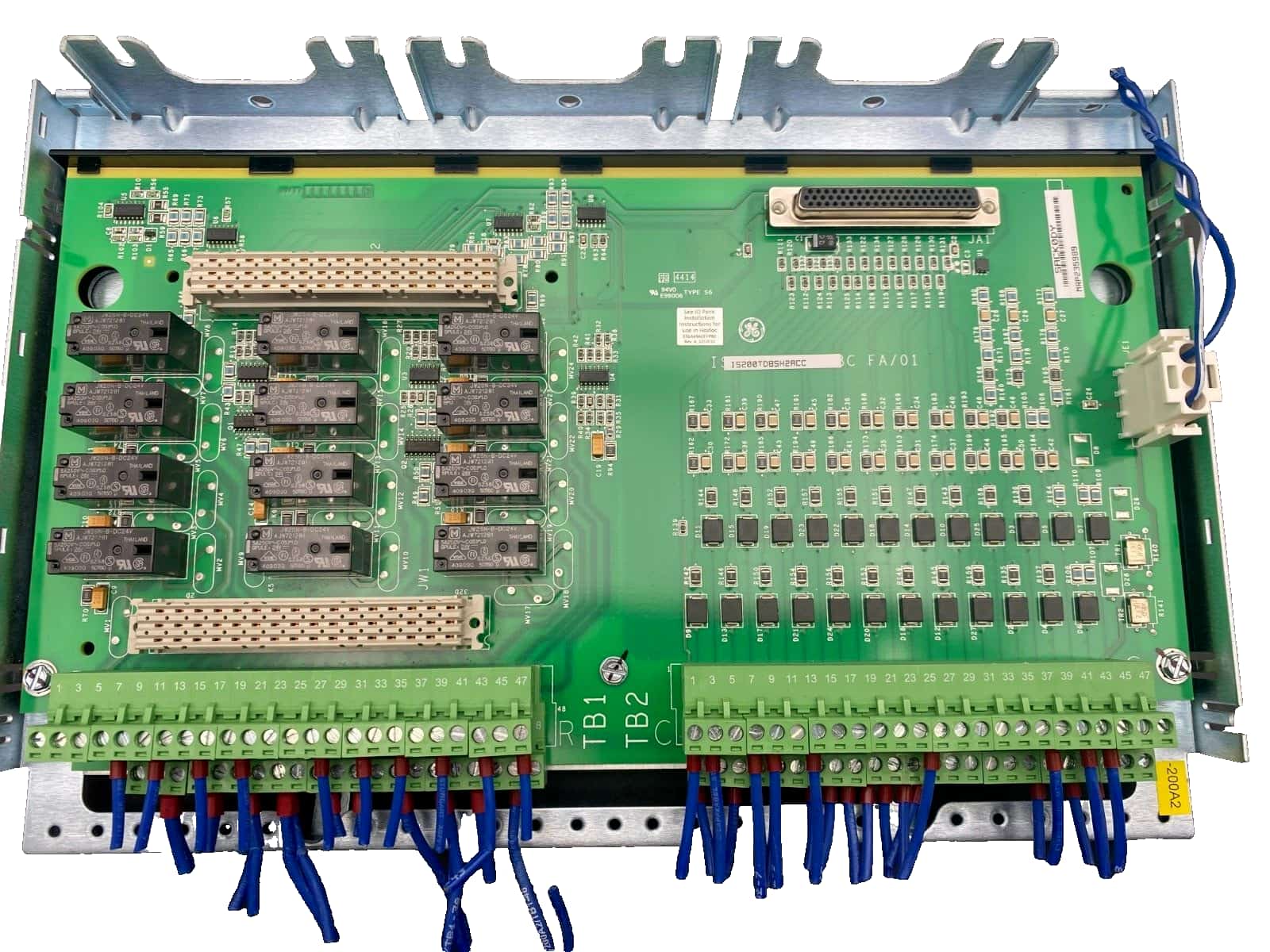

The TDBS plus a plastic insulator mounts on a sheet metal carrier that then mounts on a DIN rail. Optionally the TDBS plus insulator mounts on a sheet metal assembly that then bolts in a cabinet. The connections are wired directly to two sets of 48 point terminal blocks, typically using #18 AWG wires. The upper set of terminals, TB1, connects to the relay portion of the board and the lower set of terminals, TB2, connect to the contact input circuits. Shields should be terminated on a separate bracket.
If a relay option board is used, it plugs onto TDBS connectors JW1 and JW2 and is held in place by the force of the connectors. The following table identifies the function of each relay terminal point grouped as TB1 as it relates to the presence of an option board. If external power is to be supplied it is wired to a connector provided on the option board.
• NC - normally closed contact of a form C relay
• COM - common point of a form C relay contact
• NO - normally open contact of a form C relay
• SOL - return circuit path for a solenoid that is powered by the relay board
• VSENSE - the input to a voltage sensor that looks between VSENSE and COM
• RETURN - return power path for devices powered by the WROG option
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200TDBSH2AAA |
| Ordering Information |
IS200TDBSH2A |
| Product Catalog |
Mark* VIe |
| Description |
Simplex Discrete Input/Output Terminal Board |
| Voltage |
24 Vdc |
| Current |
2.5 mA |
| Dimensions |
34 cm x 18 cm x 5 cm |
| Weight |
0.5 kg |
