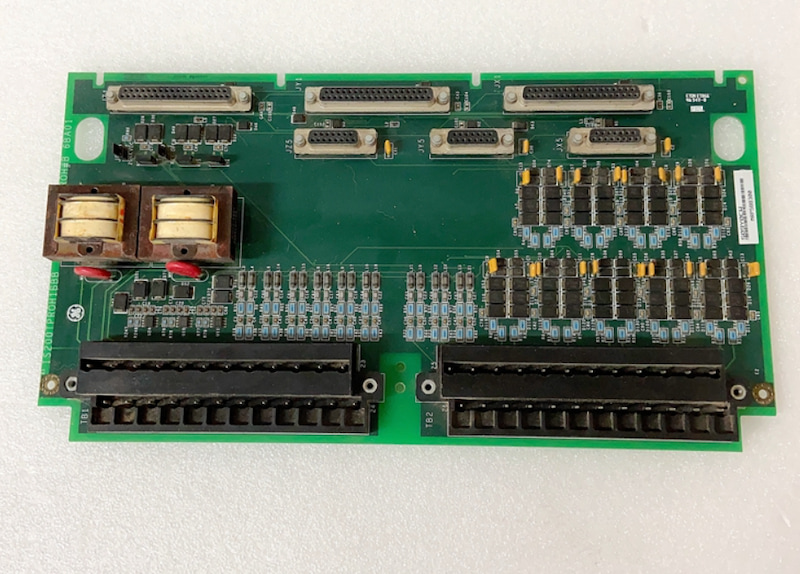

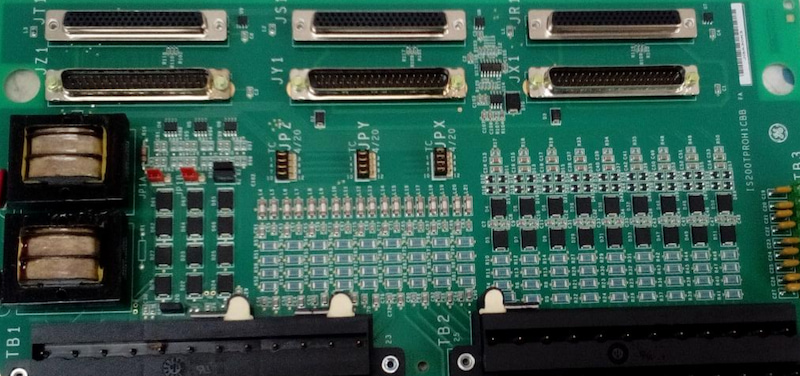

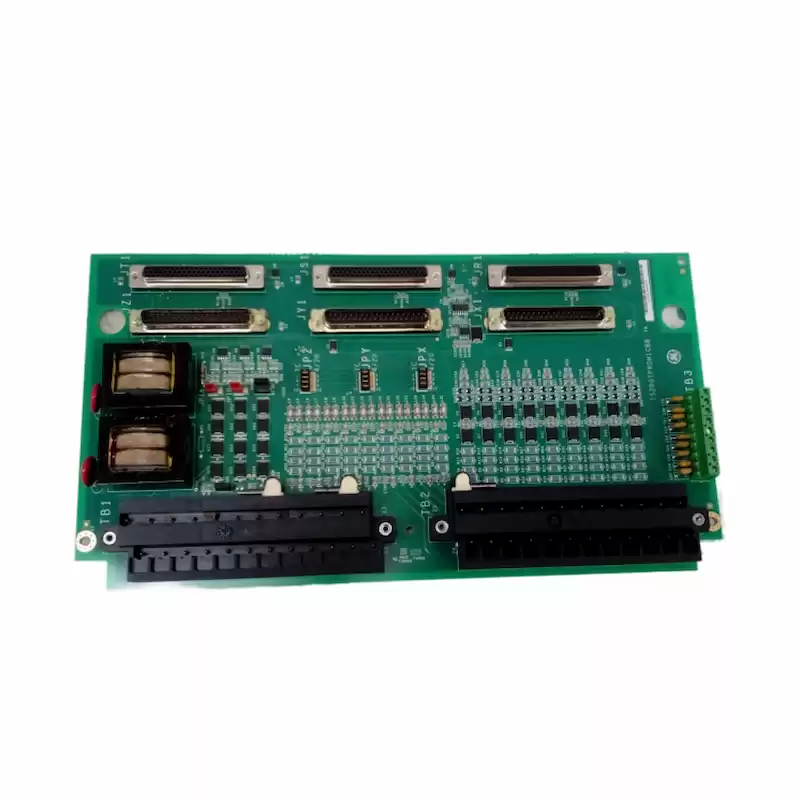

GE IS200TPROH1CAA Emergency Protection Terminal Board
The Emergency Protection (TPRO) terminal board hosts three PPRO I/O packs. It conditions speed signal inputs for the PPROs and contains a pair of potential transformers (PTs) for bus and generator voltage input. It has three DC-37 pin connectors, each adjacent to the PPRO pack connectors.
Each DC-37 accepts a cable leading to a Mark* VIe backup trip relay terminal board.
• TPROH1C features two 24 barrier terminals, each in a pluggable block
• TPROH2C features two 24 pluggable Euro-style box terminals
Compatibility
TPROH#C works with the PPRO I/O pack and supports simplex and TMR applications. In TMR systems, TPROH#C connects to three PPRO I/O packs. Both TPROH1CD and H12C accept direct mounting of three PPROH1As and provide DC-37 connectors for three cables to the selected backup trip relay terminal boards. TPRO is cable-compatible with the trip boards listed in the following table.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200TPROH1CAA |
| Ordering Information |
IS200TPROH1C |
| Product Catalog |
Mark VIe |
| Description |
Emergency Protection Terminal Board |
| Number of channels |
24 |
| Thermocouple types |
E, J, K, S, T |
| Dimensions |
18 cm × 12 cm × 12 cm |
| Weight |
1 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
