IS200TRPGH1BCC Turbine Primary Trip Terminal Board

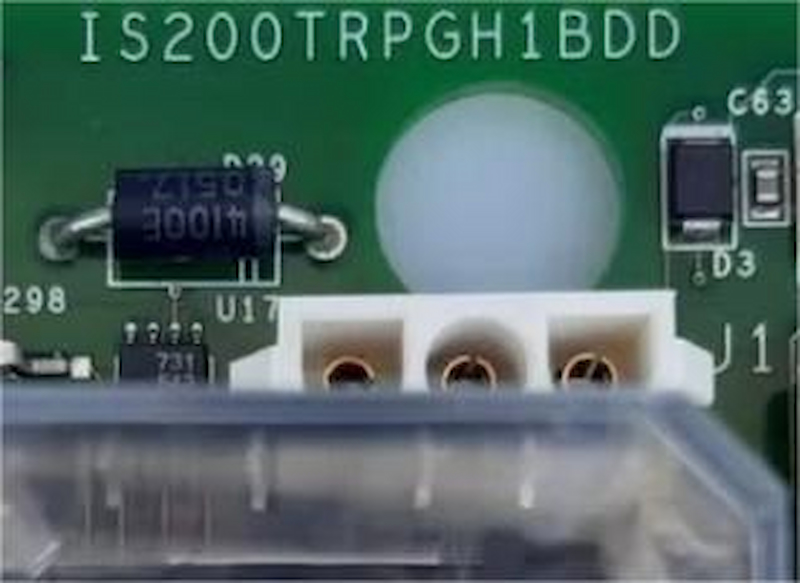

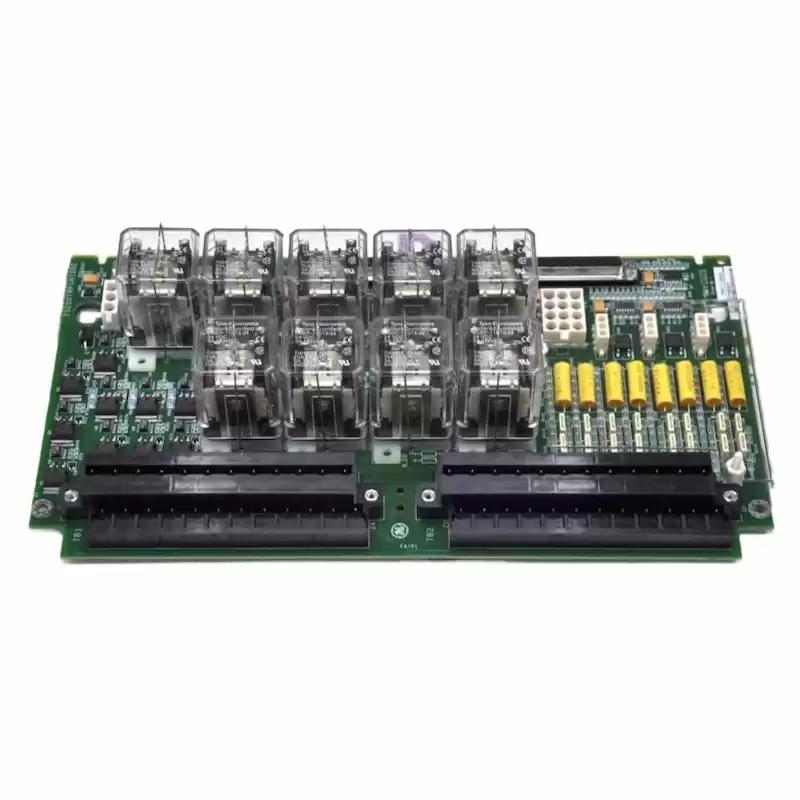

The Gas Turbine Primary Trip (TRPG) terminal board is controlled by the Primary Turbine Protection controller (VTUR or PTUR). TRPG contains nine magnetic relays in three voting circuits to interface with three trip solenoids (ETDs). The TRPG works in conjunction with the TREG to form the primary and emergency sides of the interface to the ETDs. TRPG also accommodates inputs from eight Geiger-Mueller® flame detectors for gas turbine applications.
There are two board types as follows:
• The H1A and H1B version for TMR applications has three voting relays per trip solenoid.
• The H2A and H2B version for simplex applications has one relay per trip solenoid.
Mark VI System
In the Mark* VI system, the TRPG works with the VTUR board and supports simplex and TMR applications. Cables with molded plugs connect TRPG to the VME rack where the VTUR board is located.
Mark VIe System
In the Mark VI system, the TRPG is controlled by the PTUR packs on TTURH1C and supports simplex and TMR applications. The I/O packs plug into the D-type connectors on TTURH1C, which is cabled to TRPG.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200TRPGH1BCC |
| Ordering Information |
IS200TRPGH1B |
| Product Catalog |
Mark VI or Mark VIe |
| Description |
Turbine Primary Trip Terminal Board |
| Voltage |
125 Vdc |
| Current |
1 A |
| Dimensions |
34 cm x 18 cm x 5 cm |
| Weight |
0.8 kg |
