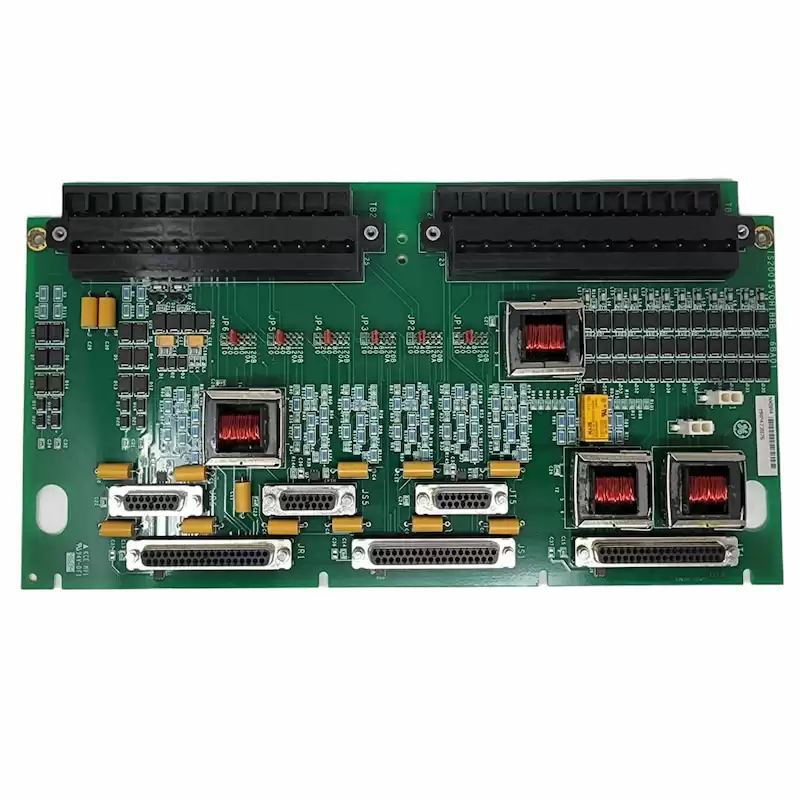

IS200TSVOH1BBB Servo Input/Output Terminal Board
The Servo Input/Output (TSVO) terminal board interfaces with two electro-hydraulic servo valves that actuate the steam/fuel valves. Valve position is measured with LVDTs. Two cables connect to VSVO using the J5 plug on the front of VSVO and the J3 or J4 connector on the VME rack. TSVO provides simplex signals through the JR1 connector, and fans out TMR signals to the JR1, JS1, and JT1 connectors. Plugs JD1 or JD2 are for an external trip from the protection module.
Installation

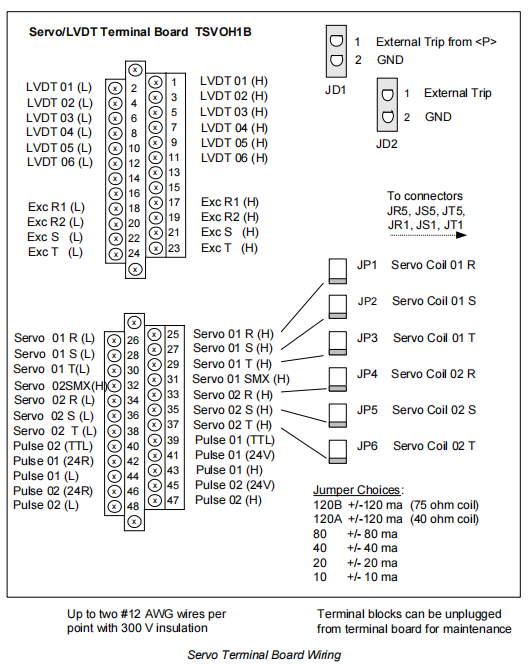

Connect the wires for the sensors and servo valves directly to two I/O terminal blocks on the terminal board, as displayed in the figure Servo Terminal Board Wiring. Each block is held down with two screws and has 24 terminals accepting up to #12 AWG wiring. A shield termination strip attached to chassis ground is located immediately to the left of each terminal block. Connect the wires for the external trip into JD1 or JD2. Cable the J5 connectors to the front of VSVO boards in racks , and . Cable the J1 connectors to the VME rack below VSVO in , and .
Each servo output can have three coils in TMR configuration. Each coil current is jumper selected using JP1-6.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200TSVOH1BBB |
| Ordering Information |
IS200TSVOH1B |
| Product Catalog |
Mark VI |
| Description |
Servo Input/Output Terminal Board |
| Voltage |
24 Vdc |
| Current |
120 mA |
| Dimensions |
34 cm x 18 cm x 3 cm |
| Weight |
0.4 kg |
