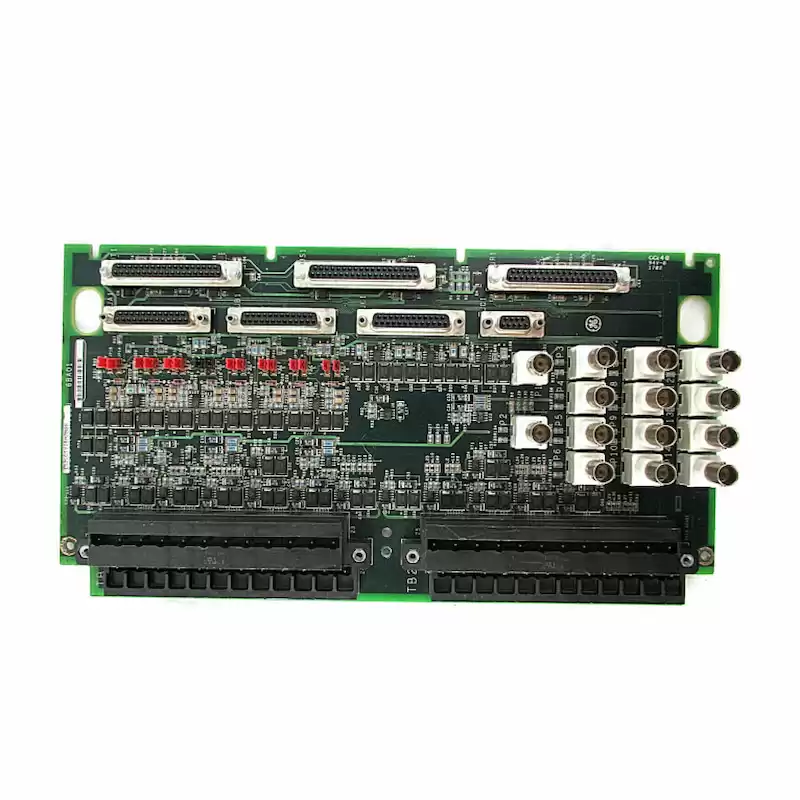

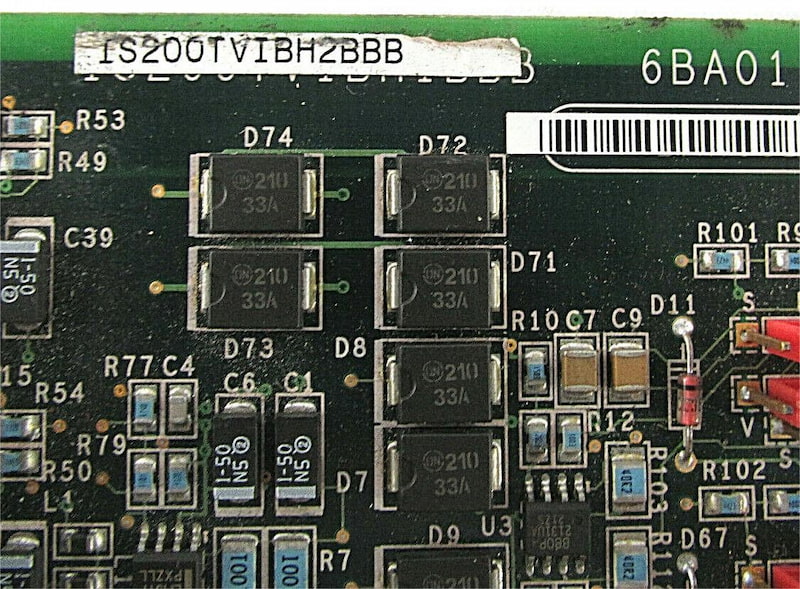

IS200TVIBH2B IS200TVIBH2BBB Vibration Input Terminal Board
The Vibration Input (TVIB) terminal board accepts up to 14 vibration probes, two of which can be cabled directly to the VVIB board. VVIB processes and digitizes the displacement and velocity signals, which are then sent over the VME bus to the controller. The Mark* VI system uses Bently Nevada probes for shaft vibration monitoring. The following vibration probes are compatible with TVIB:
• Proximity
• Velocity
• Acceleration
• Seismic
• Phase
There are two types of TVIB terminal boards, H1A and H2A. The H2A type board has BNC connectors allowing portable vibration data gathering equipment to be plugged in for predictive maintenance purposes. Both types have connectors so that Bently Nevada vibration monitoring equipment can be permanently cabled to the terminal board to measure and analyze turbine vibration.
In the Mark VI system TVIB works with the VVIB processor and supports simplex and TMR applications. Two TVIBs connect to VVIB with two cables. In TMR systems, TVIB connects to three VVIB processors with three cables.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200TVIBH2BBB |
| Ordering Information |
IS200TVIBH2B |
| Product Catalog |
Mark VI system |
| Description |
Vibration Input Terminal Board |
| Voltage |
28 Vdc |
| Current |
12 mA |
| Dimensions |
34 cm x 18 cm x 5 cm |
| Weight |
0.4 kg |
