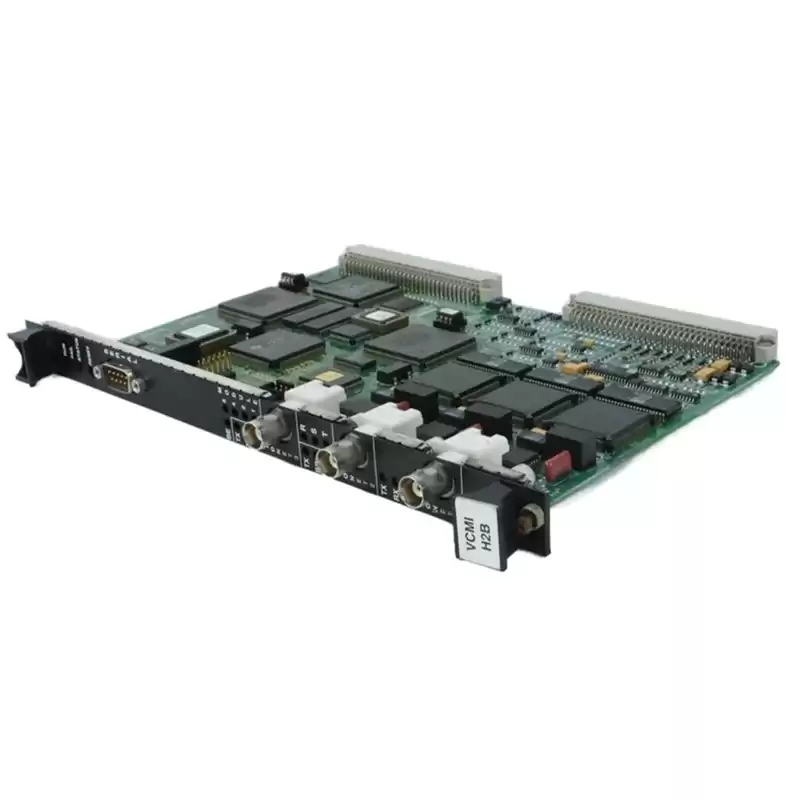

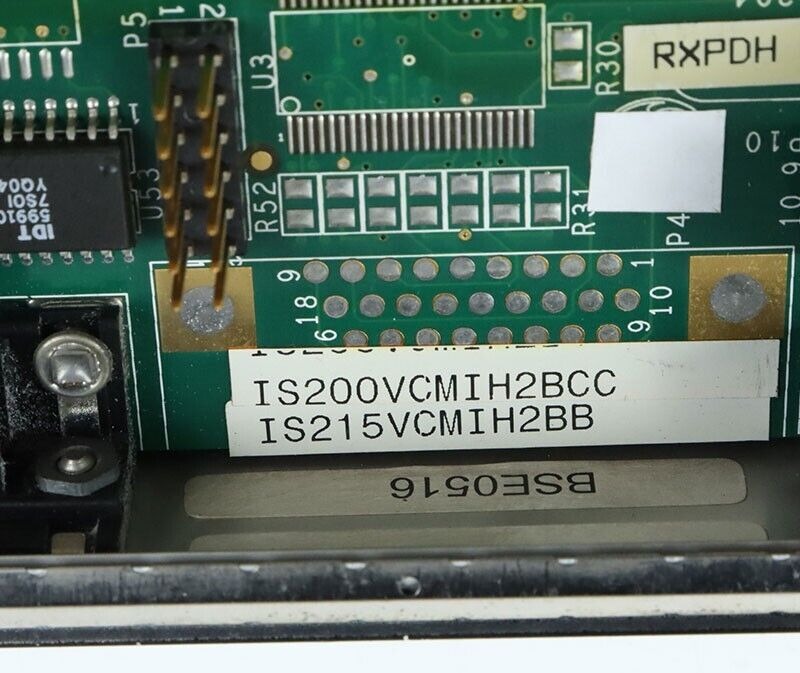

IS200VCMIH2BCC Bus Master Controller Board
Functional Description

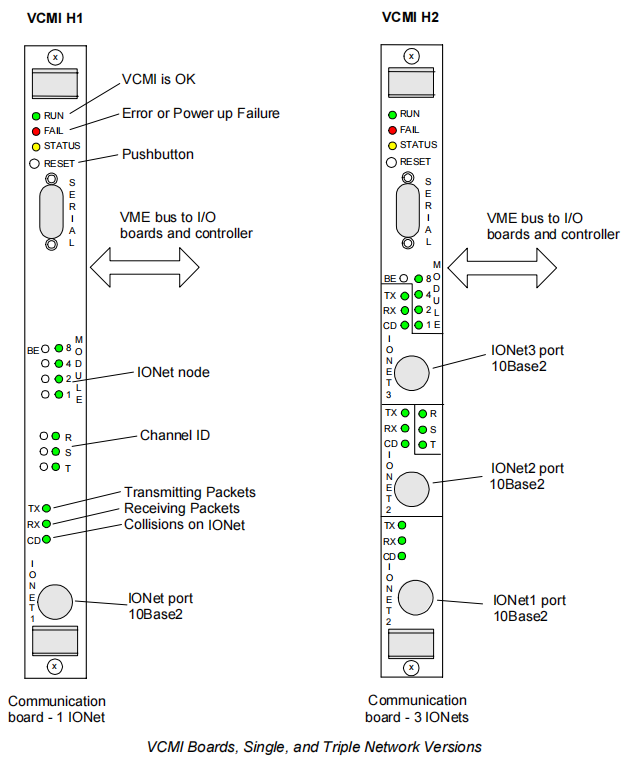

The VME Bus Master Controller (VCMI) board is the communication interface between the controller and the I/O boards, and the communication interface to the system control network, known as IONet. VCMI is also the VME bus master in the control and I/O racks, and manages the IDs for all the boards in the rack and their associated terminal boards. The two versions of the VCMI are shown in the following figure:

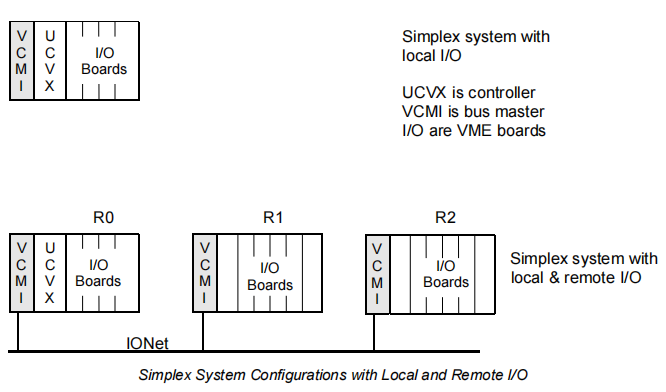

Multiple I/O racks can be connected to the IONet, each rack with its own VCMI board. The following figure shows three simplex system configurations with local and remote I/O using the VCMI.

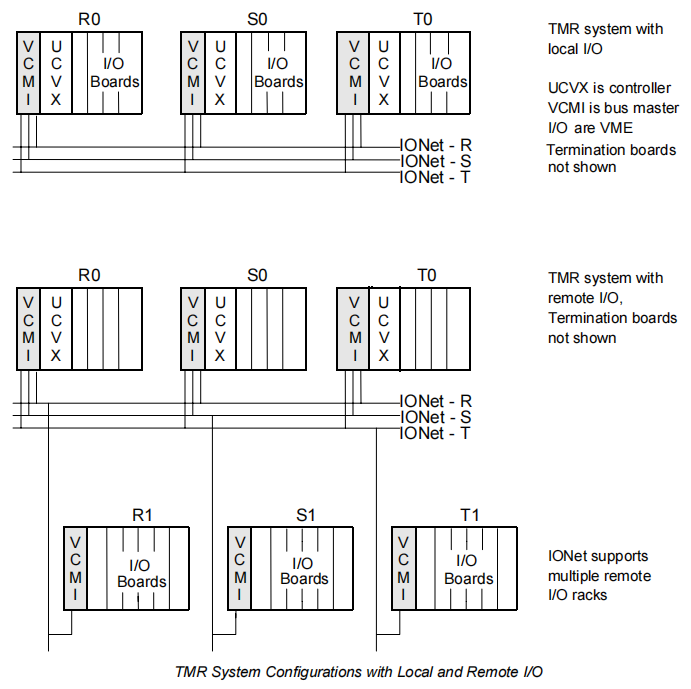

The following figure shows two sizes of triple modular redundant (TMR) systems. The first example is a small system where all the I/O is mounted in the VME control rack so no remote I/O racks are required. Each channel (R, S, T) has its own IONet, and the VCMI has three IONet ports.
The second example is a larger system with remote I/O racks. Each IONet supports multiple I/O racks, but only one rack is shown here. All I/O channels (R, S, T) are identical in terms of I/O boards and points.
Technical Specifications
| Manufacturer |
GE |
|
Part Number
|
IS200VCMIH2BCC |
| Ordering Information |
IS200VCMIH2B |
| Product Catalog |
Mark VI |
| Description |
Bus Master Controller Board |
| Voltage |
28 V |
|
Frame Rate
|
40 ms (25 Hz)
|
| Dimensions |
28 cm x 20 cm x 3 cm |
| Weight |
0.8 kg |
