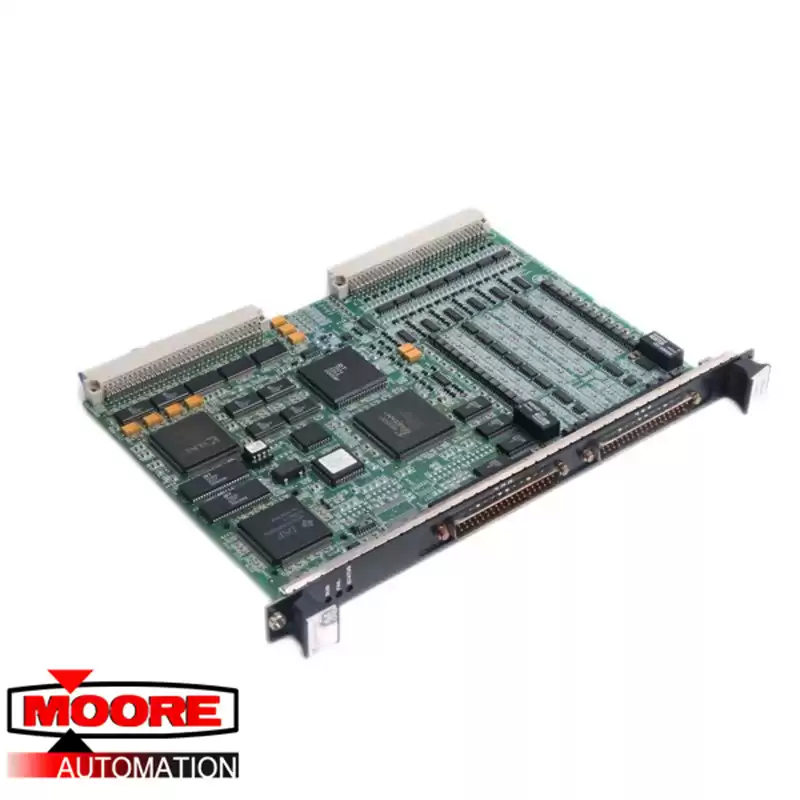

The IS200VCRCH1BBC is a Discrete I/O board with the same functionality as a VCCC board. However, the IS200VCRCH1BBC does not have a daughterboard while the VCCC does. While this allows the IS200VCRCH1BBC to take up less rack space, relay outputs must then be cabled through the J3 and J4 ports on the VME rack. If cabling on the front panel is undesirable, the suggested solution is to use a VCCC board rather than a VCRC board.
The IS200VCRCH1BBC attaches to a single-slot faceplate that is built with three LED indicators. These are labeled status, fail, and run and are orange, red, and green in color. Two cable connectors (J33 and J44) are also positioned on the surface of the faceplate.
