Dimensions: 13cmx8.6cmx6.5cm
|
Weight: 2.6kg
|
Input Range: 105 mA
|
|
Series: Mark VI
|
Voltage Range: 250 Volts
|
|
Full Description: New Factory Package Cleaned and Tested. With 1 Year Warranty.
|
|
IS2020RKPSG3A
|

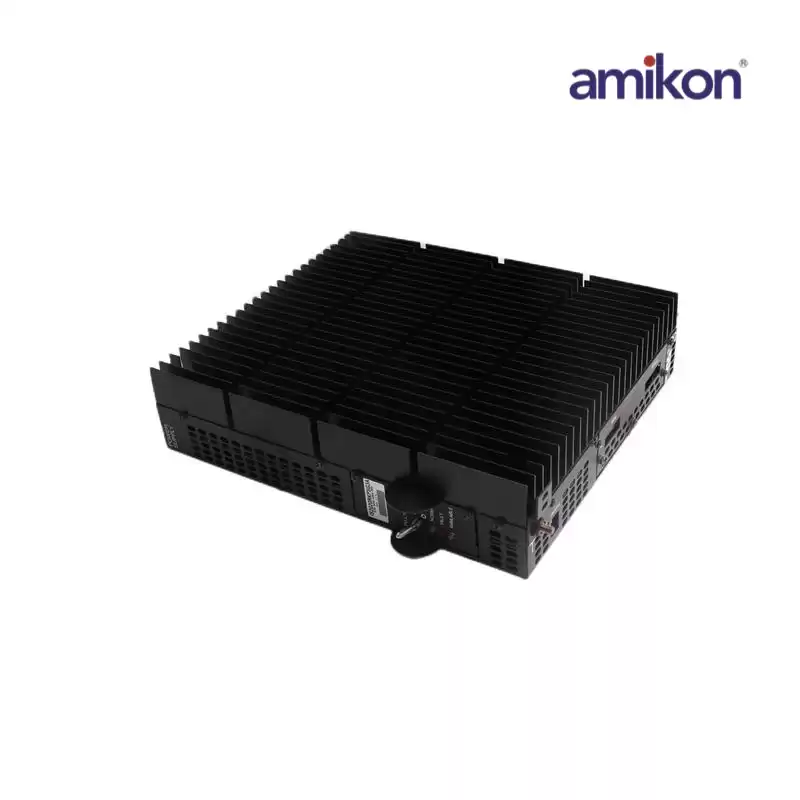

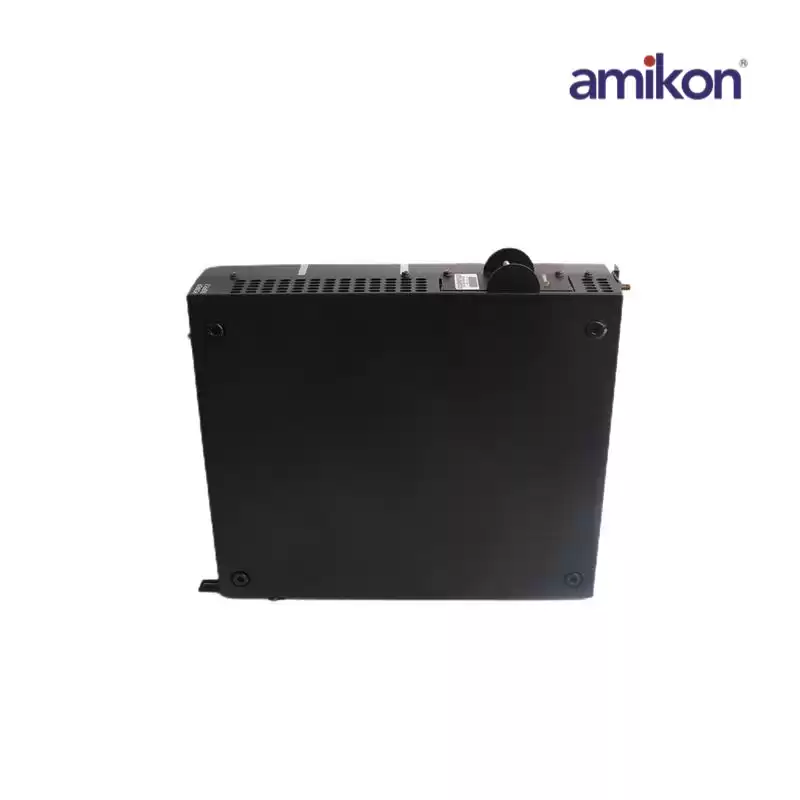

The IS2020RKPSG3A is one of seven (major) versions of the VME Rack Power Supply. Each of these versions has different input and output requirements. The IS2020RKPSG3A has an output rating of 400W. Its input voltage rating is 125 Vdc. The module has a Status ID output, a remote +28V PSA output, and an additional five +28V PSA outputs.

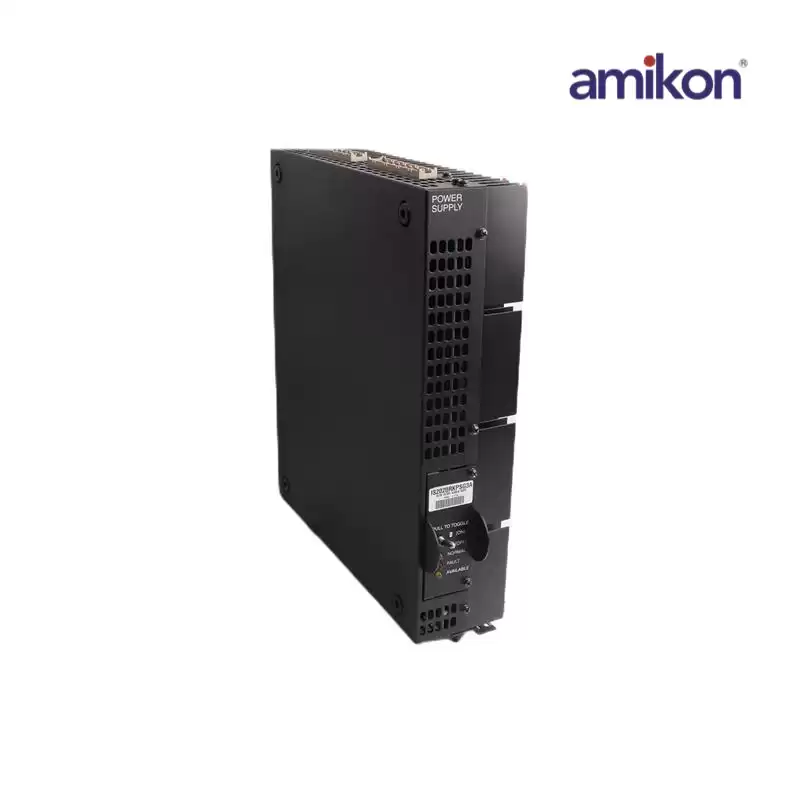

The module is designed to mount to the right side of the VME control and interface racks.The IS2020RKPSG3A module has a front faceplate with a toggle switch that is the only user control on the module. Module faults can be reset using this toggle switch. The faceplate also has three LED indicators, including a green, a red, and a yellow LED. Connections mentioned in the previous paragraph (PSA outputs) are located on the top and bottom of the unit.
|
