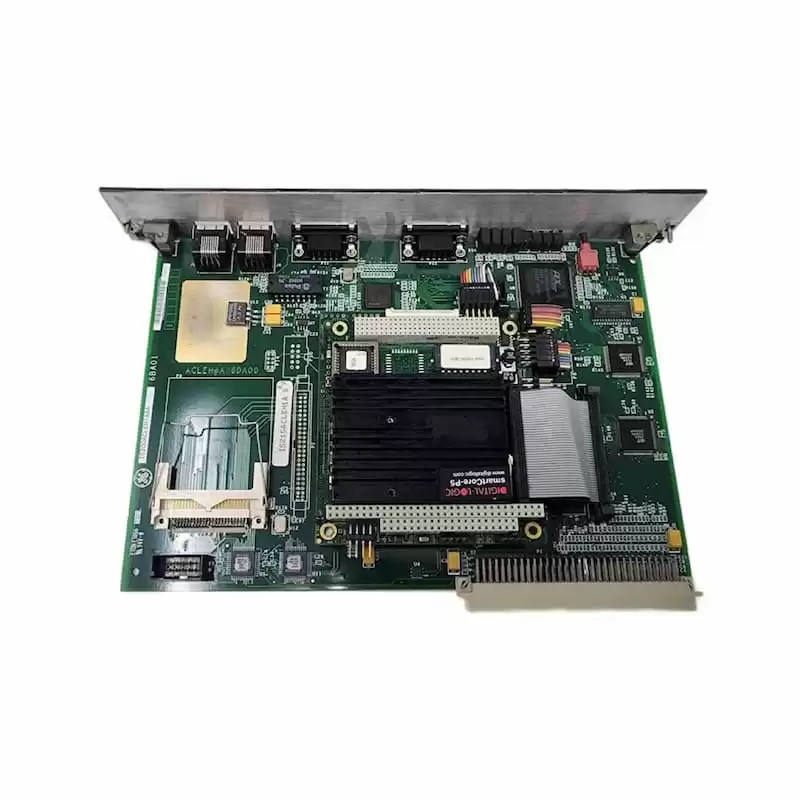

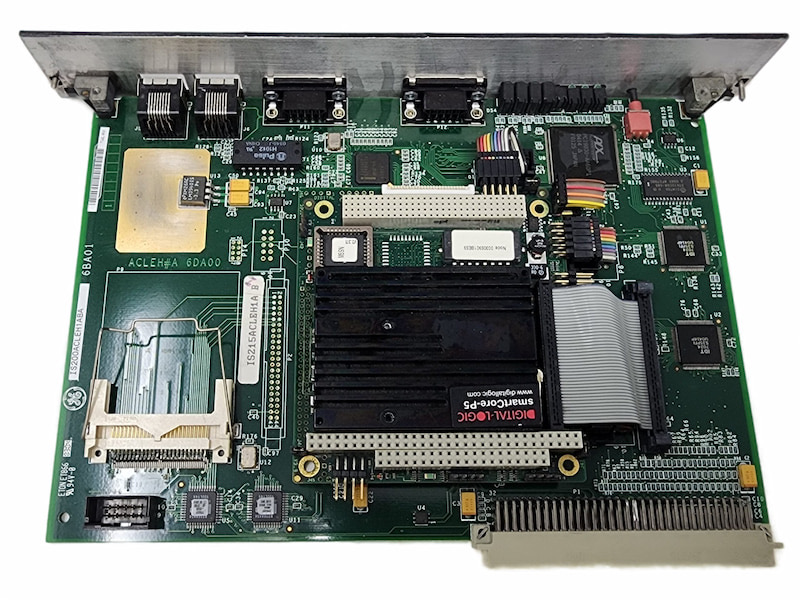

GE IS215ACLEH1A Application Control Layer Board
The IS215ACLEH1A Application Control Layer Module (ACL) is a microprocessorbased master controller used to perform multiple duties over communication networks such as Ethernet TM and ISBus. The ACL mounts in a standard Innovation Series TM drive or EX2100 exciter board rack and occupies two half-slots. The ACL and board rack are located in the control cabinet. In drive applications, the ACL's P1 connector (4-row 128-pin) plugs into the Control Assembly Backplane Board (CABP). In the EX2100 exciter, the ACL mounts in the Exciter Backplane (EBKP).
Hardware Features
Integrated circuits on the ACL provide the following features:
• Central processing unit (CPU)
• Peripheral component interconnect (PCI) controller
• 128 K byte level 2 cache
• 8 MB dynamic random access memory (DRAM)
• 4 MB flash memory basic input/output system (BIOS)
• Ethernet
• Bus target interface
• Serial ports COM1 and COM2
• Ethernet
Technical Specifications
| Manufacture |
GE |
| Part Number |
IS215ACLEH1A |
| Ordering Information |
IS215ACLEH1A |
| Product Catalog |
EX2100 Excitation Control |
| Description |
Application Control Layer Board |
| Origin |
United States (US) |
| HS Code |
85389091 |
| Dimension |
18x12x12 inches |
| Weight |
0.45 kg |
