IS215UCCAM03A
-------------------------------------------------------------
|
Origin
|
USA
|
|
Status
|
Brand New In Stock
|
|
Shipment
|
From Xiamen, China to Worldwide
|
|
Year of Production
|
2020-2022 available
|
-------------------------------------------------------------
IS215UCCAM03A :

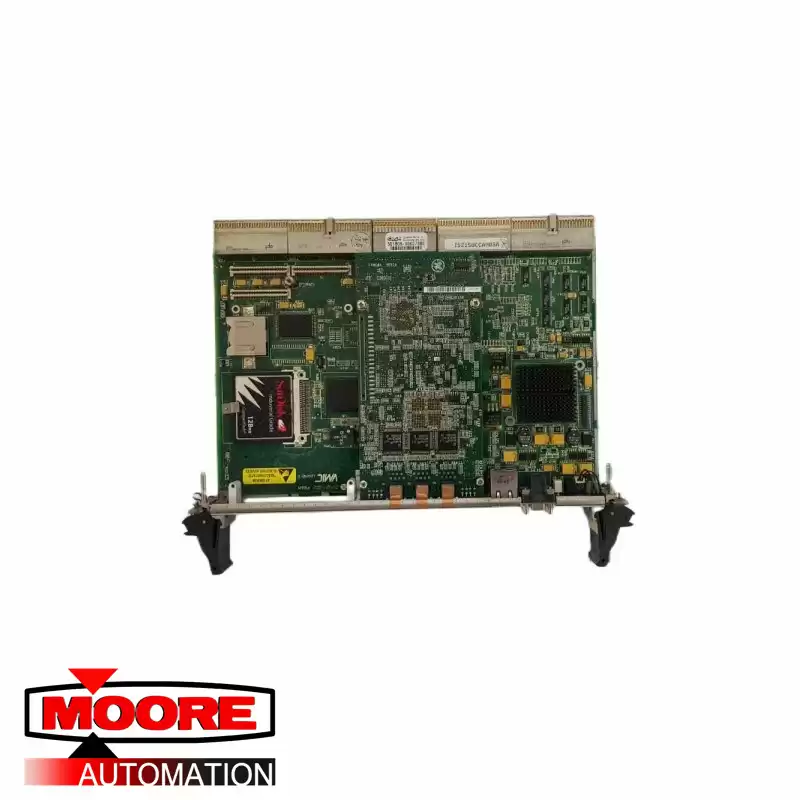

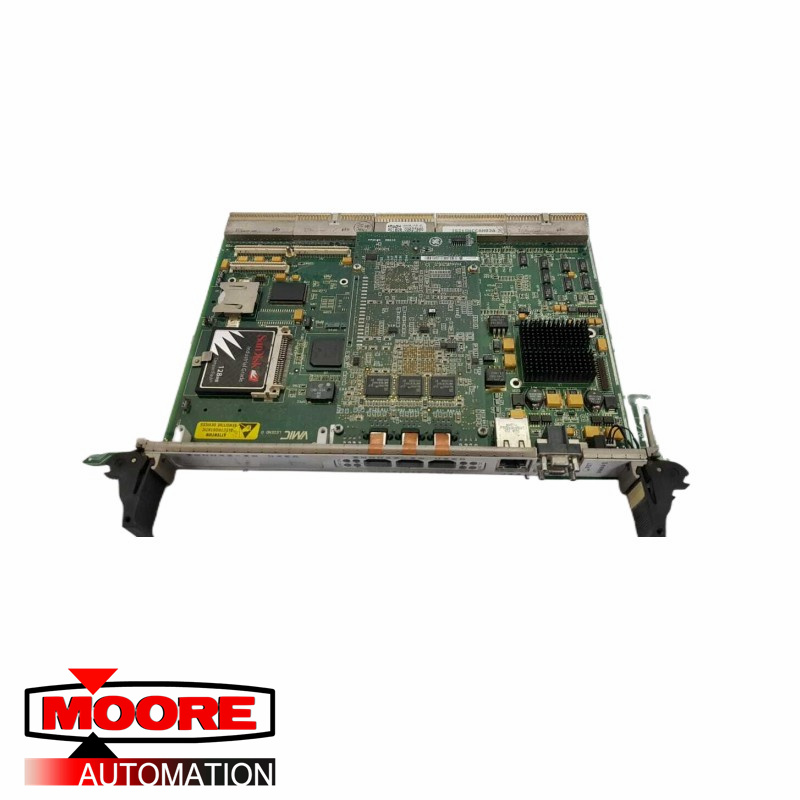

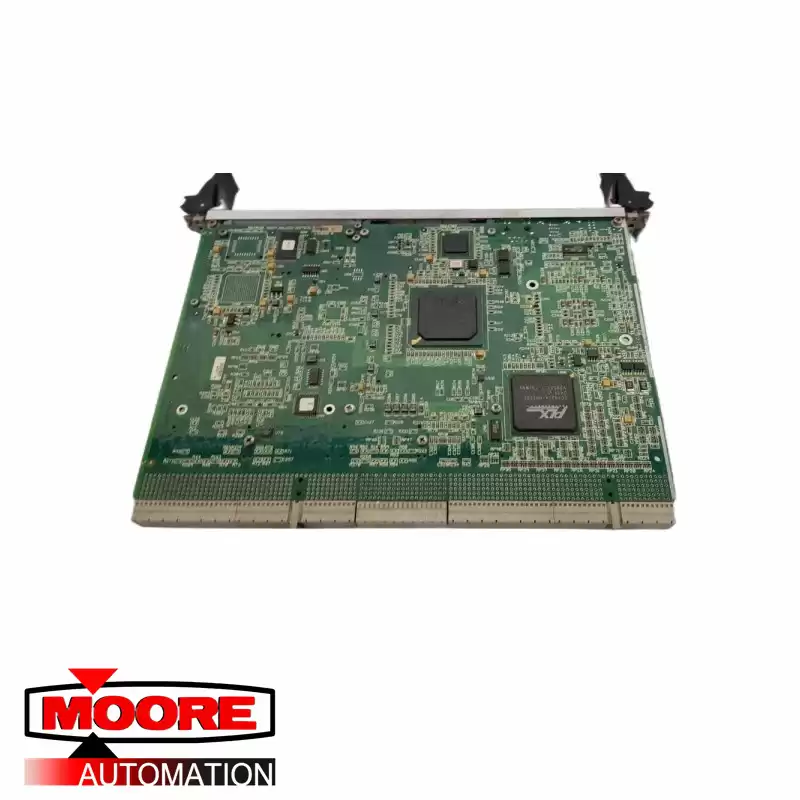

This board, the IS215UCCAM03A board, is one of the UCCx controllers. The UCCx controller is based on a single-board computer known as the CompactPCI, or CPCI. This board is part of the Mark VIe system produced by General Electric. This model is essentially an IS215UCCAH3 board combined with an IS200EPMC, 128 MB of flash memory, and 128 MB of DRAM. This board has several LEDs on the front faceplate of the board. Some of these LEDs are; UDH Ethernet Status, Status, DC, Diag, IONet Ethernet, and ON LEDs. There are three statuses for the UDH Ethernet LED, there is an Active LED which will blink, and there is a Speed LED, which is green for the 100 BaseTX, and yellow for 10 Base T.
There are item specifications for the IS215UCCAM03A board, which vary quite a bit. Some of the items as the memory, COM ports, programming, and EPMC Ethernet Interface. The EPMC Ethernet Interface is made up of three ports, an RJ-45 connector, and a twisted pair of 10BaseT and 100BaseTX connectors. Within the EPMC Ethernet Interface, there are protocols that are used to communicate between the I/O packs and controllers; those protocols are TCP/IP protocols.
The IS215UCCAM03A board will have at minimum one controller and up to four slots of CPCI rack with a maximum of two power supplies. Please note that if the first slot controller is removed then the remainder of the controllers will cease operation. If any of the boards require removal power must be removed from the rack. There are several ways that power from the rack can be removed, one of which is using a remote disconnect switch.
