IS215UCVGM06A IS215UCVGH1A Mark VI Controller Board
Functional Description

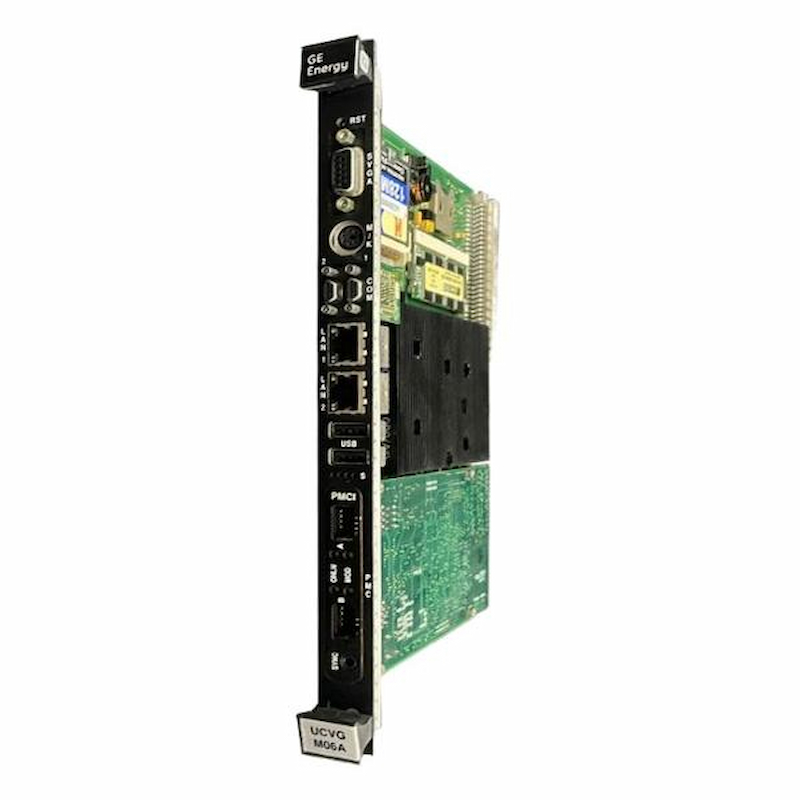

The IS215UCVGM06A is a UCVG Controller Board, manufactured and designed by General Electric as part of the Mark VI Series used in the GE Speedtronic Control System.

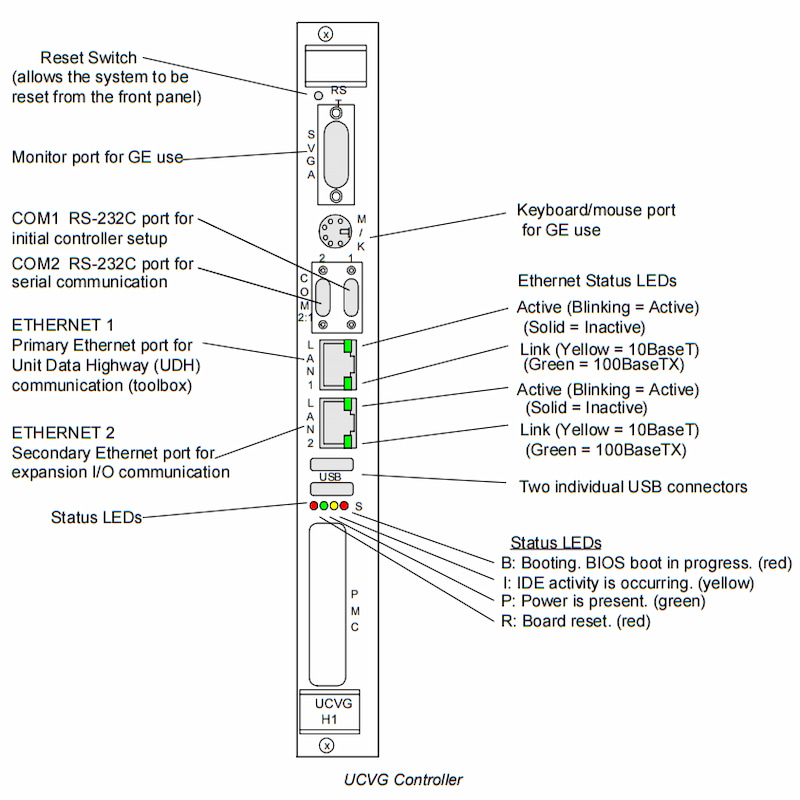

The UCVG is a single-slot board using an Intel® Ultra Low Voltage Celeron™ 650 MHz processor with 128 MB of flash memory and 128 MB of SDRAM. Two 10BaseT/100BaseTX (RJ-45 connector) Ethernet ports provide connectivity. The first Ethernet port allows connectivity to the UDH for configuration and peer-to-peer communication.
The second Ethernet port is for use on a separate IP logical subnet and can be used for Mod bus or private Ethernet Global Data (EGD) network. This Ethernet port is configured through the toolbox. The controller validates its toolbox configuration against the existing hardware each time the rack is powered up.
Note
A separate subnet address allows the controller to uniquely identify an Ethernet port. IP subnet addresses are obtained from the Ethernet network administrator (for example, 192.168.1.0, 192.168.2.0).
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS215UCVGM06A |
| Ordering Information |
IS215UCVGH1A |
| Product Catalog |
Mark VI |
| Description |
Controller Board |
| Microprocessor |
Intel Ultra Low Voltage Celeron 650 MHz |
|
Memory
|
128 MB SDRAM
128 MB Compact Flash Module
256 KB Advanced Transfer Cache
|
| Operating System |
QNX |
| Operating temperature |
0ºC to 70ºC (32 ºF to 158 ºF) |
| Voltage |
24 Vdc |
| Current |
5.4 A |
| Dimensions |
30 cm x 30 cm x 5 cm |
| Weight |
1 kg |
Datasheet Link
GE IS215UCVGM06A Datasheet
