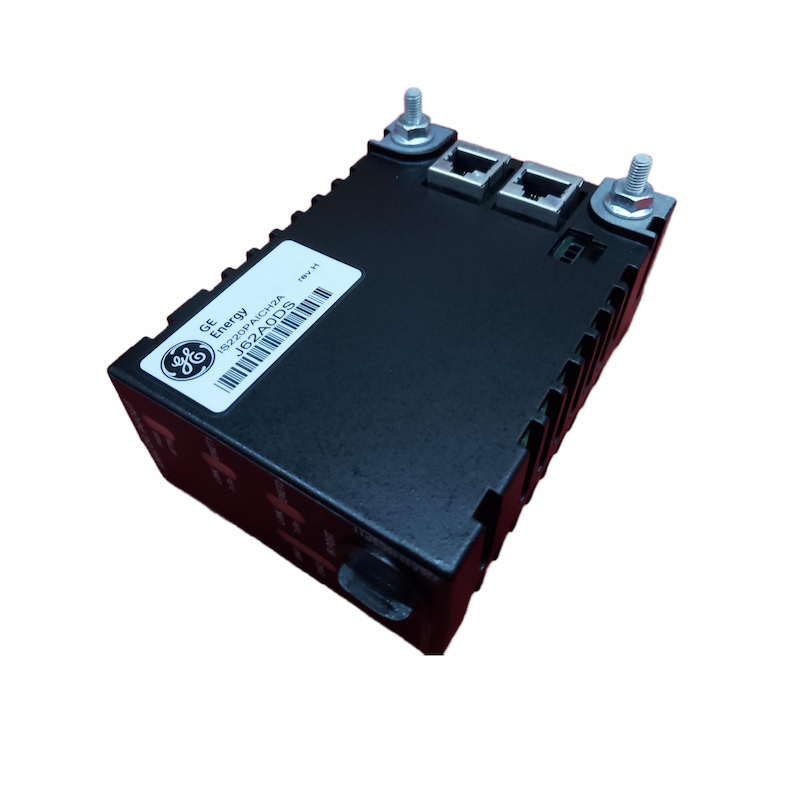

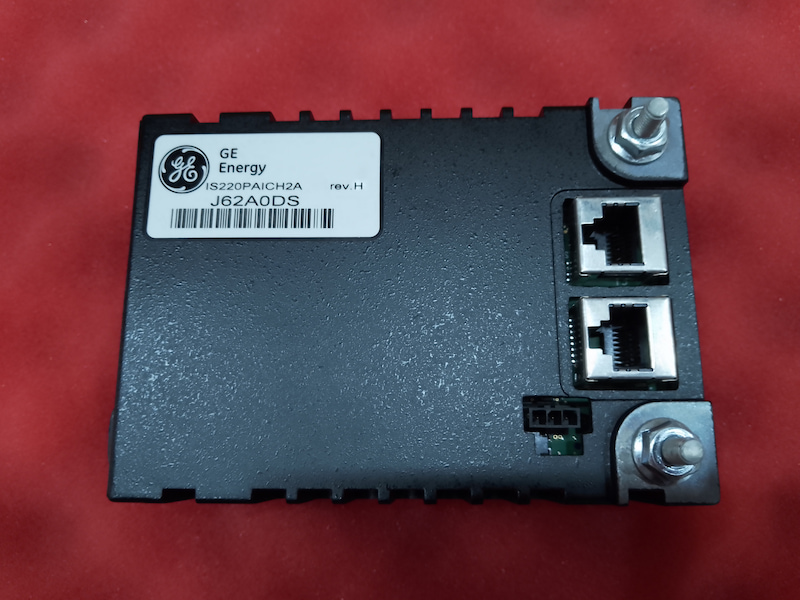

IS220PAICH2A Analog Input/Output Module
The Analog Input/Output (PAIC) pack provides the electrical interface between one or two I/O Ethernet networks and an analog input terminal board. The pack contains a processor board common to all Mark* VIe distributed I/O packs and an acquisition board specific to the analog input function. The pack is capable of handling up to 10 analog inputs, the first eight of which can be configured as ±5 V or ±10 V inputs, or 0-20 mA current loop inputs.
The last two inputs may be configured as ±1 mA or 0-20 mA current inputs. The load terminal resistors for current loop inputs are located on the terminal board and voltage is sensed across these resistors by the PAIC. The IS220PAICH1A also includes support for two 0-20 mA current loop outputs. The IS220PAICH2A includes extra hardware to support 0-200 mA current on the first output.
Input to the pack is through dual RJ45 Ethernet connectors and a three-pin power input. Output is through a DC-37 pin connector that connects directly with the associated terminal board connector. Visual diagnostics are provided through indicator LEDs.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS220PAICH2A |
| Ordering Information |
IS220PAICH2A |
| Product Catalog |
Mark* VIe |
| Description |
Analog Input/Output Module |
| Voltage |
±10 V |
| Current |
200 mA |
| Dimensions |
8.3 cm × 4.2 cm × 12.2 cm |
| Weight |
340 g |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
