GE IS220PAOCH1A Analog Output Module

The IS220PAOCH1A is a General Electric analog output module

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IS220PAOCH1A
 Product ID  IS220PAOCH1A
 Catalog  Mark VIe
 Description  IS220PAOCH1A Analog Output Module
 Origin  United States (US)
 Dimension  205 mm x 156 mm x 26.5 mm
 Weight  1kg

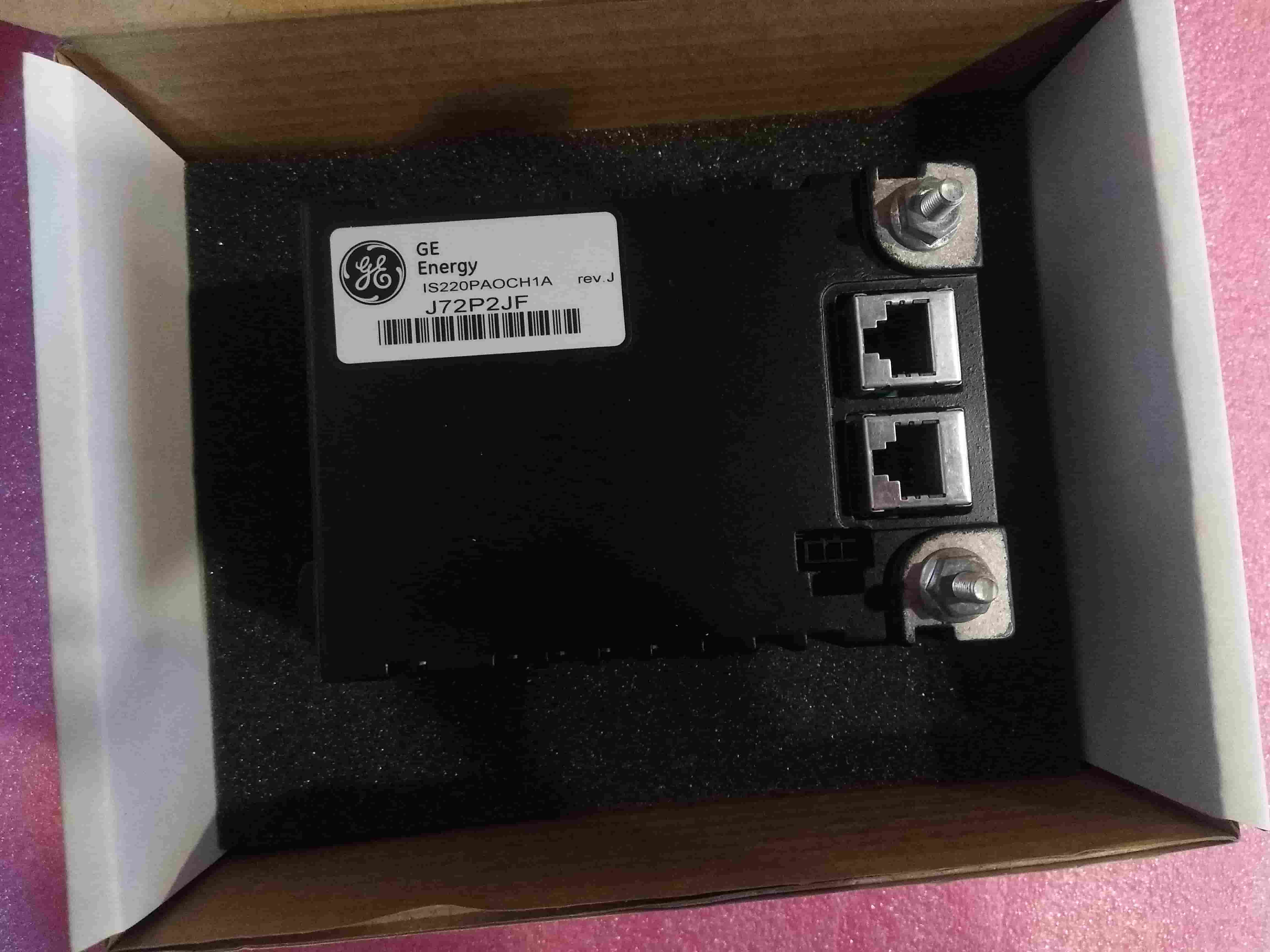

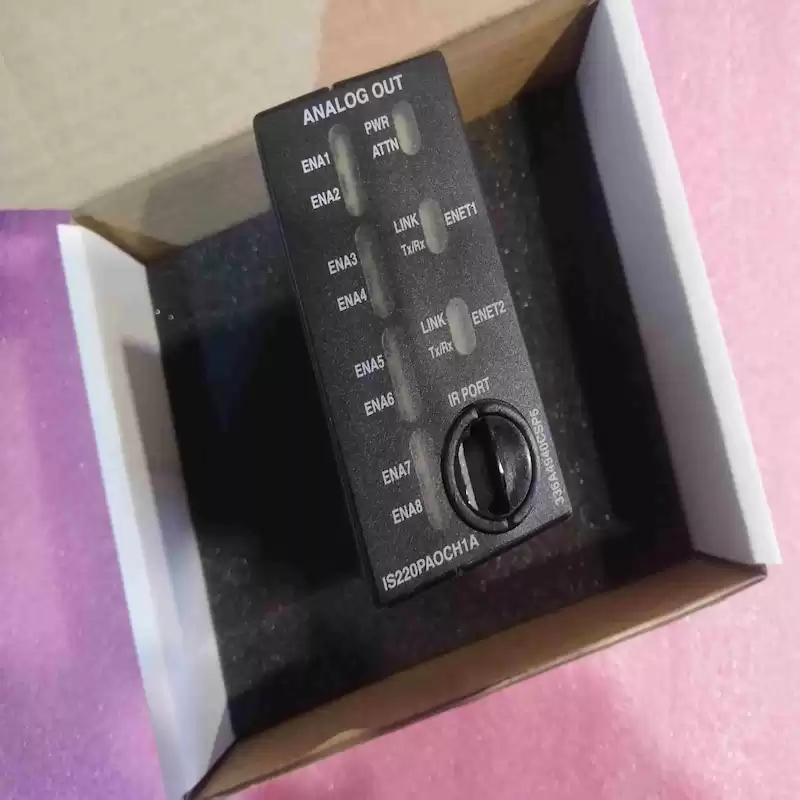

IS220PAOCH1A Analog Output Module

The IS220PAOCH1A is a General Electric analog output module that is part of the Mark VIe used in gas turbine control systems. The analog output (PAOC) provides an electrical interface between one or two Ethernet I/O networks and the analog output terminal block. The PAOC consists of a BPPx processor board and a pair of receiver boards optimized for analog output functionality. The PAOC provides eight simplex 0-20 mA current loop outputs and also provides an analog-to-digital converter for each current feedback output. Two RJ-45 Ethernet connectors and a 3-pin power input serve as inputs to the PAOC. The corresponding terminal block connector connects directly to the gate using a 37-pin DC-37 connector. LED indicators are used to indicate visual detection.


  •  » Datasheet Link

GE IS220PAOCH1A Analog Output Module Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
