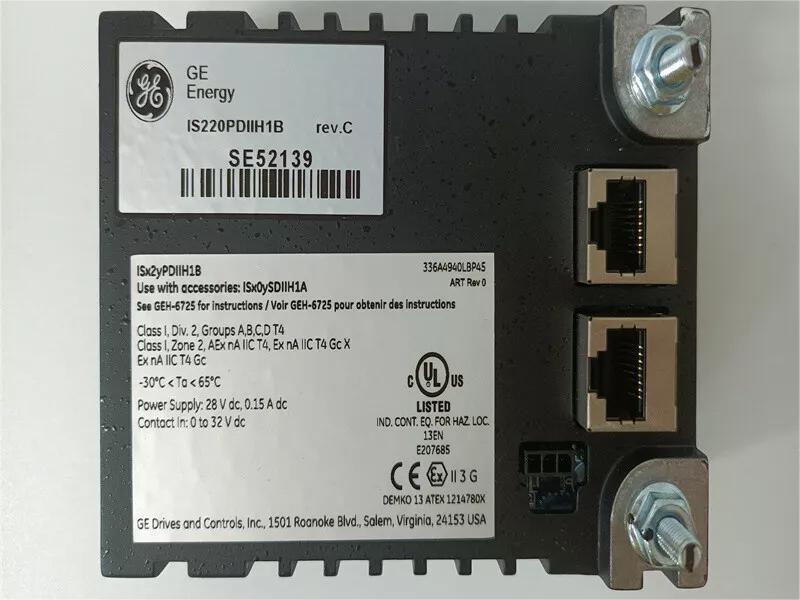

IS220PDIIH1B Isolated Discrete Input Module
The IS220PDIIH1B Isolated Discrete Input (PDII) pack provides the electrical interface between one or two I/O Ethernet networks and a point/group isolated discrete input terminal board. The pack contains a processor board common to all Mark* VIe distributed I/O packs and an acquisition board specific to the isolated discrete input function.
The pack accepts up to 16 isolated contact inputs that can be point isolated, group isolated, or a mix based on the terminal and optional board configurations. Each channel can accept different voltage levels as follows: 24 V dc/ 48 V dc/ 125 V dc/ 250 V dc/ 115 V ac rms / 230 V ac rms.
If the pack is used with terminal board SDII and the optional board WDIIH1, all 16 channels can be system wetted with 24 V dc, 115 V ac rms, or 230 V ac rms. When using WDIIH1, each of the 16 channels can be individually set and configured as point isolated and each channel can accept a different voltage level as needed. A mix of point isolation and group isolation is possible in this configuration.
If the pack is used with terminal board SDII and the optional board WDIIH2, all 16 channels can be system wetted with 48 V dc. When using WDIIH2, each of the 16 channels can be individually set and configured as point isolated and each channel can accept a different voltage level as needed. A mix of point isolation and group isolation is possible in this configuration.
If the pack is used with terminal board SDII and the optional board WDIIH3, all 16 channels can only be system wetted with 125 V dc. With WDIIH3, there is no option provided to configure channels as point isolated.

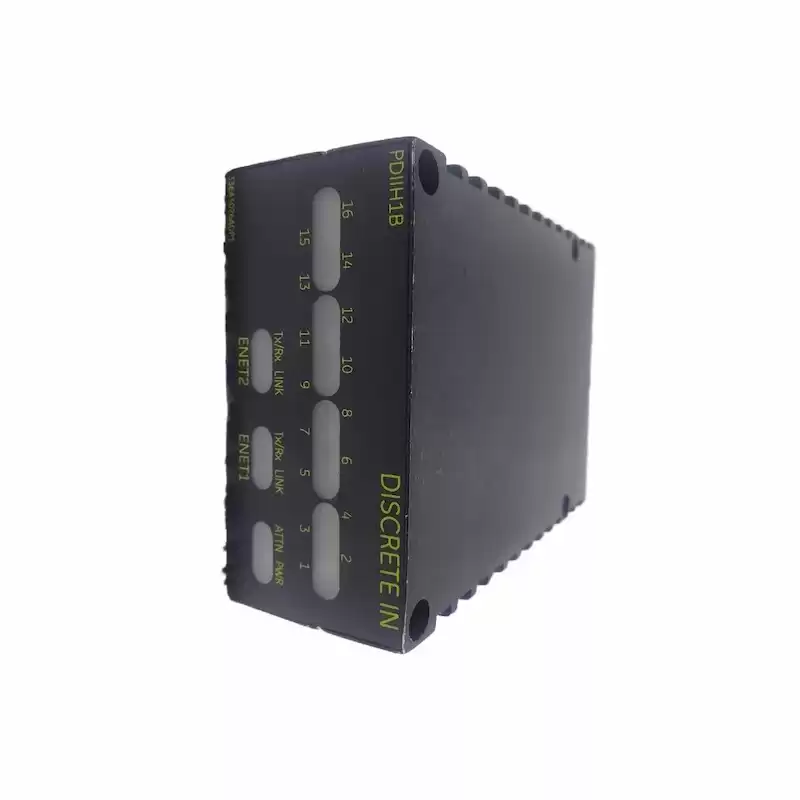

System input to the pack is through dual RJ45 Ethernet connectors and a three-pin power input. Discrete signal input is through a DC-37 pin connector that connects directly with the associated terminal board connector. Network, pack, and contact input status visual indicators are provided through pack front LEDs.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS220PDIIH1B |
| Ordering Information |
IS220PDIIH1B |
| Product Catalog |
Mark VIe |
| Description |
Isolated Discrete Input Module |
| Voltage |
24 Vdc |
|
Frame rate
|
1000 Hz |
| Dimensions |
8.3 cm × 4.2 cm × 12.2 cm |
| Weight |
340 g |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
