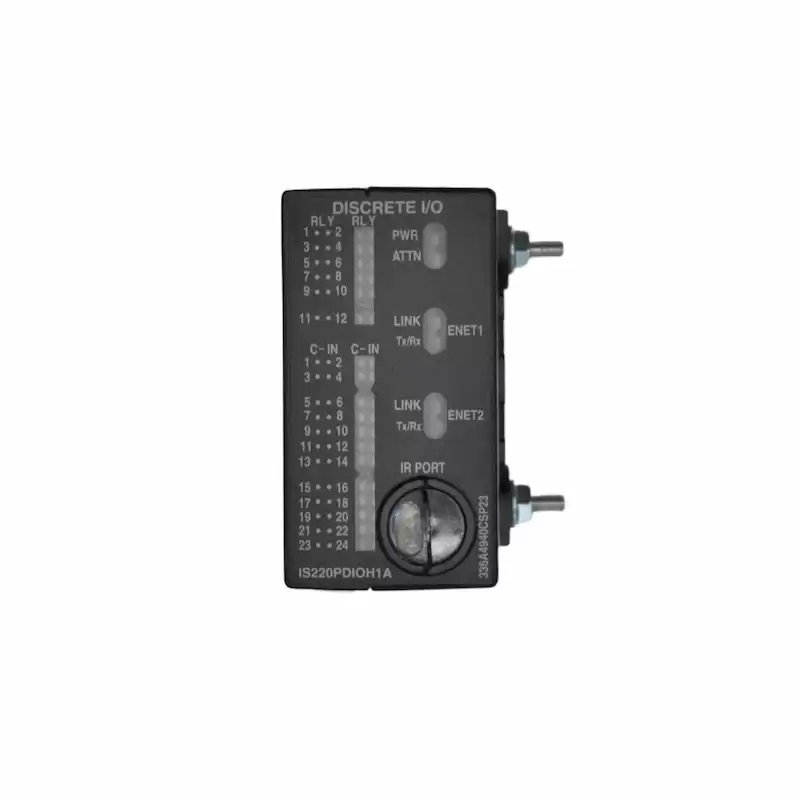

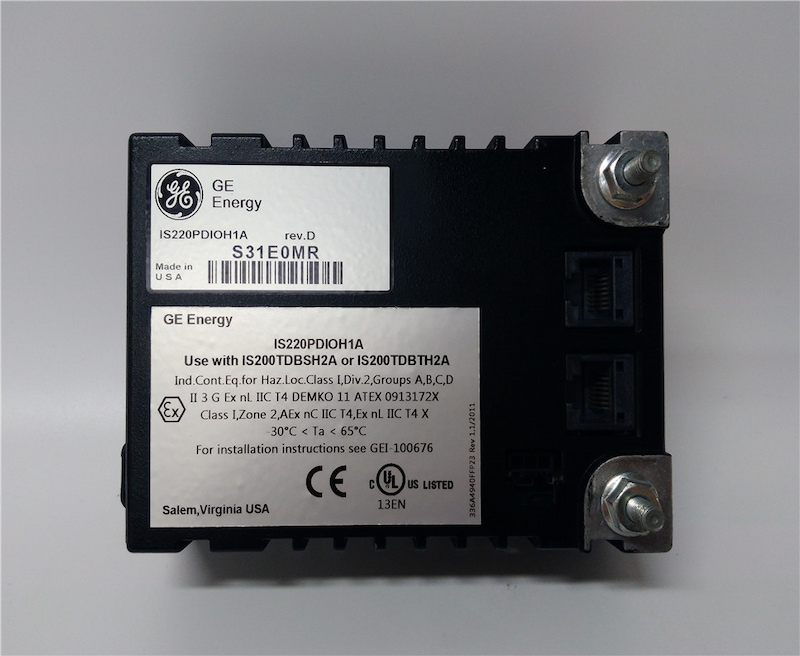

IS220PDIOH1A Discrete I/O Module
The IS220PDIOH1A Discrete I/O pack (PDIO) provides the electrical interface between one or two I/O Ethernet networks and a discrete input/output terminal board. The PDIO contains a BPPx processor board and an acquisition board specific to the discrete input/output function. The I/O pack accepts up to 24 contact inputs, controls up to 12 relay outputs, and receives terminal board specific feedback signals. The associated terminal board determines voltage capability of the PDIO. System input to the I/O pack is through dual RJ-45 Ethernet connectors and a three-pin power input. Discrete signal input/output is through a DC-62 connector that connects directly with the associated terminal board connector. Visual diagnostics are provided through indicator LEDs.
The PDIO is the functional equivalent of a PDIA and a PDOA I/O pack combined into a single assembly. For simplex applications, it is mounted to a TDBS terminal board, which is the equivalent of a SRLY relay terminal board combined with a STCI contact input terminal board. For TMR applications, it is mounted to a TDBT terminal board, and can include a WROB option board for fused and sensed power distribution to the first six relay outputs and dedicated power to the last relay output. The following figure displays the signals for three PDIO I/O packs mounted on a TDBT terminal board.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS220PDIOH1A |
| Ordering Information |
IS220PDIOH1A |
| Product Catalog |
Mark VIe |
| Description |
Discrete I/O Module |
|
Number of Input Channels
|
24 DI and 12 form C contact DO
|
|
AC Voltage Rejection
|
60 V rms at 50/60 Hz at 125 V dc wetting voltage
|
|
Number of Relay Command Channels
|
12 relays
|
|
Ambient Rating for Enclosure Design
|
-30 to 65°C (-22 to 149 °F)
|
|
Dimensions
|
8.3 cm × 4.2 cm × 12.2 cm
|
|
Weight
|
340 g
|
