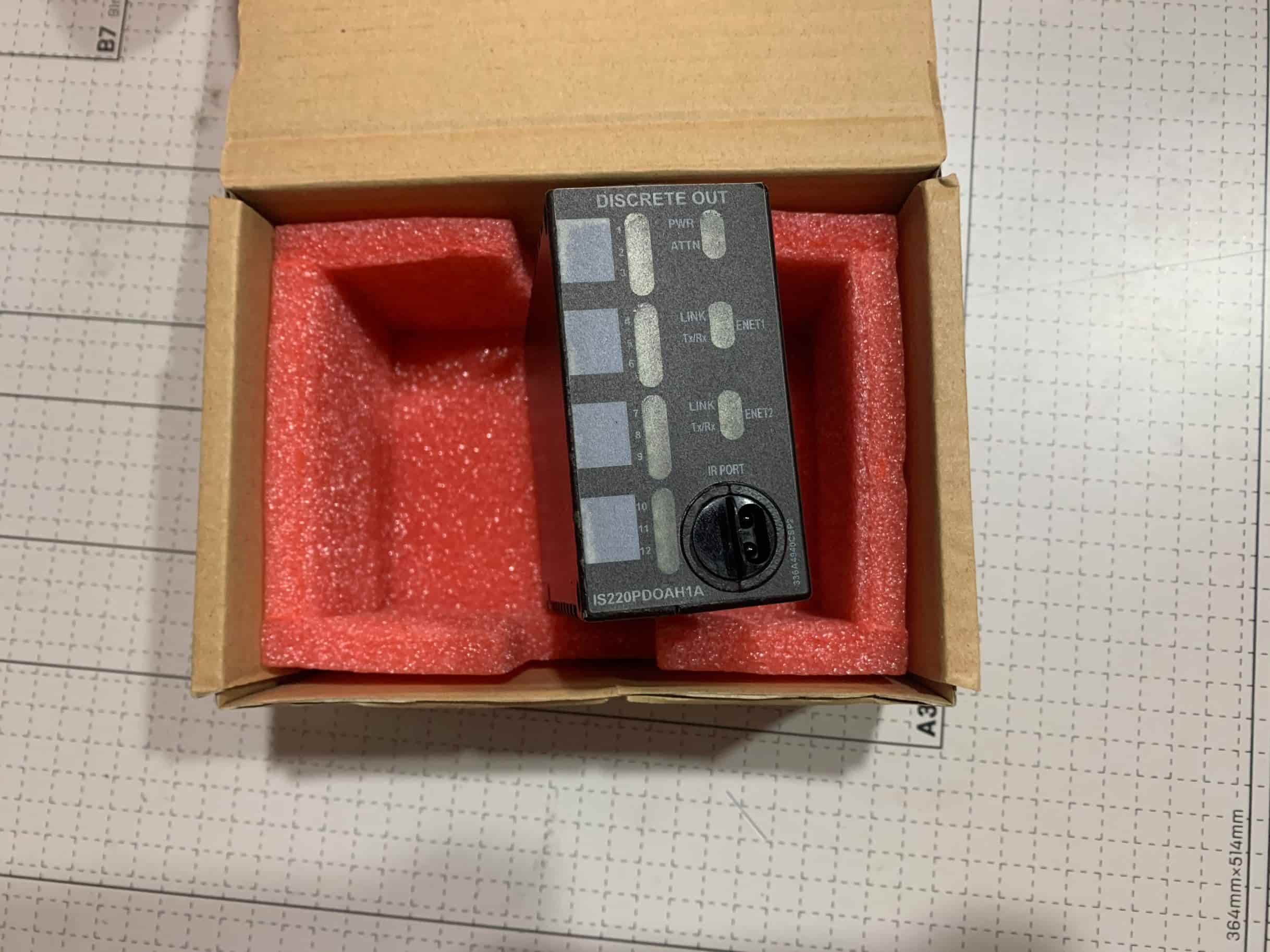

GE IS220PDOAH1A Discrete Output Module I/O Pack

The IS220PDOAH1A H is a Mark VIe I/O pack.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IS220PDOAH1A
 Product ID  IS220PDOAH1A
 Catalog  Mark VIe
 Description  IS220PDOAH1A Discrete Output Module
 Country of Origin  United States (US)
 Dimension  205 mm x 156 mm x 99.1 mm
 Weight  1kg



GE IS220PDOAH1A Discrete Output Module


The IS220PDOAH1A is a discrete output package that is part of the GE Speedtronic Mark VIe gas turbine control system. It connects one or two I/O Ethernet connections to discrete output terminal boards via an electrical interface. The package includes a processor board shared by all Mark VIe distributed I/O packages and an acquisition board dedicated to discrete output functions.
IS220PDOAH1A Functional Description
The kit can control up to 12 relays and accept feedback from terminal boards. There are magnetic relays (TRLYH1B, C, D, and F terminal boards) and solid-state relays (TRLYH1E board) available. The kit is powered by a three-pin power input and two RJ45 Ethernet connectors. Outputs are made through a DC-37-pin connector that connects directly to the associated terminal board connector. LED indicators provide visual diagnostics and an infrared port allows local diagnostic serial communications.
Compatibility It works with six different types of discrete (relay) output terminal boards, including TRLY and SRLY boards, but not with DIN rail mounted DRLY boards.
The number of I/O packages used in the signal path is called the control mode:
Simplex uses a single I/O package and one or two network connections.
Dual uses two I/O packages and one or two network interfaces.
TMR uses three I/O packages, each with one network connection
