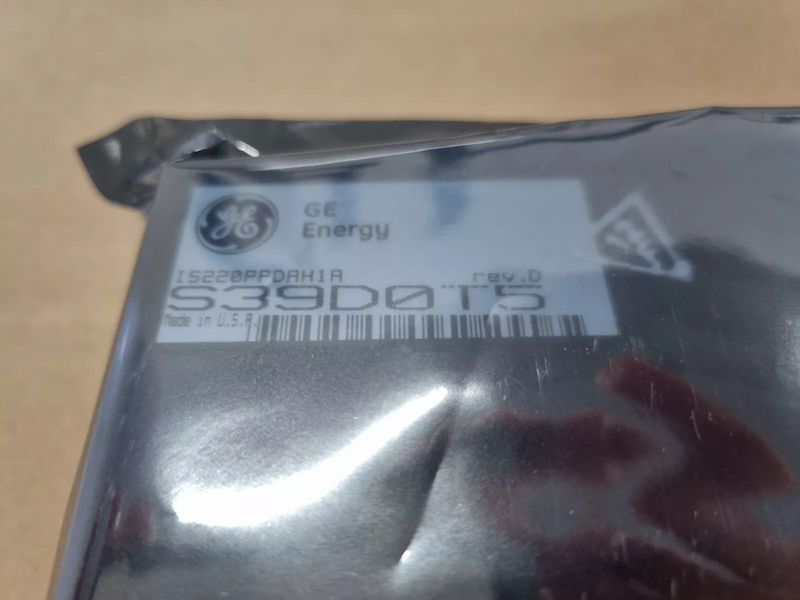

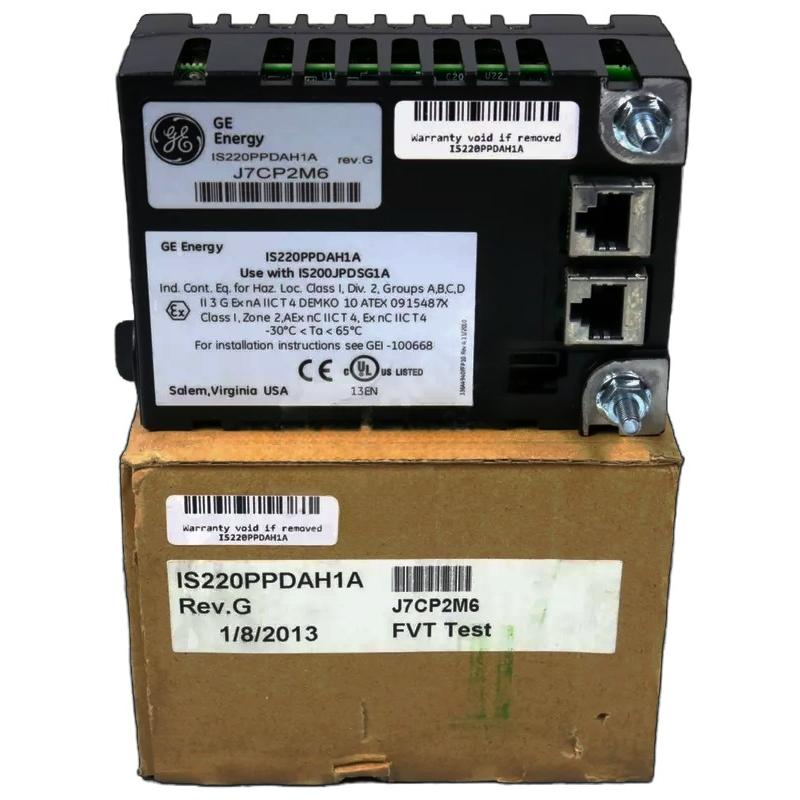

GE IS220PPDAH1A I/O Pack
The Power Distribution System Feedback (PPDA) I/O pack produces system feedback signals for power bus voltages, branch circuit status, ground fault detection, and bulk power supply health from the connected core distribution board(s). The I/O pack accepts inputs from up to a maximum of six power distribution boards or up to six sets of feedback signals. It conditions the board feedback signals and provides a dual redundant Ethernet interface to the Mark VIe or Mark VIeS controllers. The PPDA feedback is structured to be plug and play, using electronic IDs to determine the power distribution boards wired into it. This information is then used to populate the IONet output providing correct feedback from connected boards.
The PPDA I/O pack is hosted by the JPDS, JPDM, JPDG, or JPDC 28 V dc control power distribution board. Additional boards are connected using 50-pin ribbon cable jumpers that are wired pin 1 to pin 1. Each board contributes one feedback group to the PPDA. The PPDA I/O pack is compatible with the feedback signals created by the JPDB, JPDE, and JPDF.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS220PPDAH1A |
| Ordering Information |
IS220PPDAH1A |
| Product Catalog |
Mark VIe |
| Description |
Power Distribution System Feedback I/O Pack |
|
Number of Channels
|
5 channels per feedback set, total 30 channels for six feedback sets
|
|
Input Converter Resolution
|
16 bit analog-to-digital converter
|
|
Power Consumption
|
5.3 W typical, 6.2 W worst case
|
|
Technology
|
Surface mount
|
Ambient Rating for Enclosure Design
|
-30 to 65ºC (-22 to 149 ºF)
|
|
|
8.3 cm × 4.2 cm × 12.2 cm
|
|
|
340 g
|
