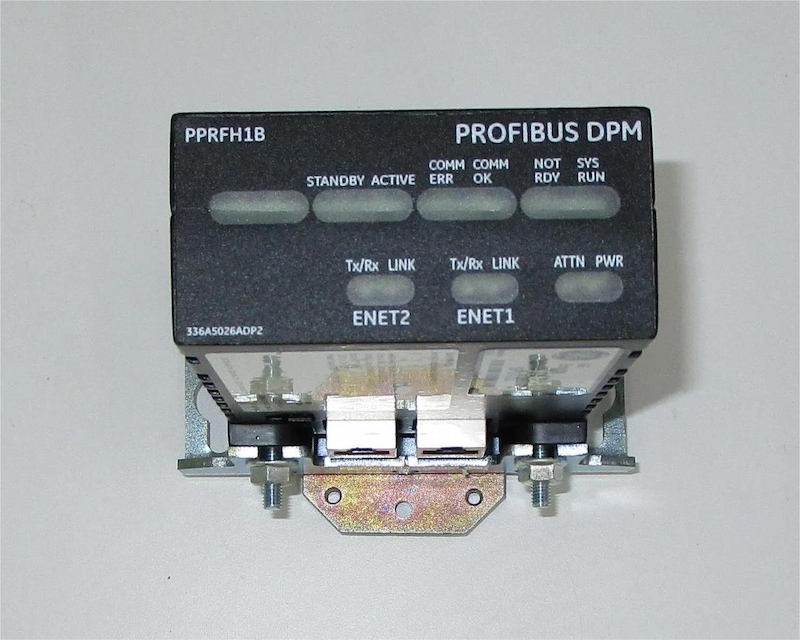

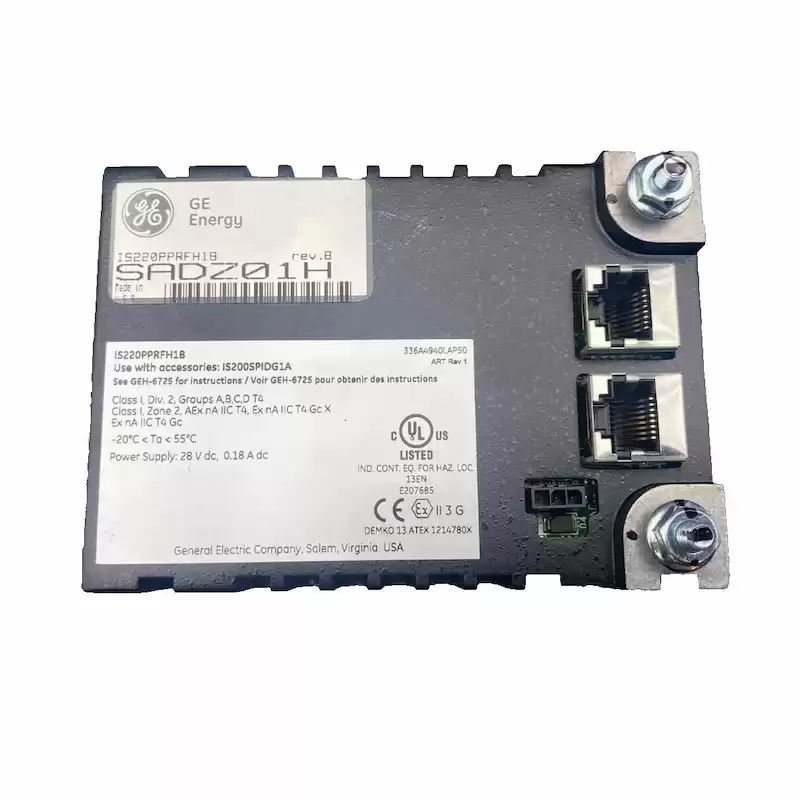

IS220PPRFH1B PROFIBUS Master Gateway (PPRF)
The PROFIBUS Master Gateway (PPRF) pack is a PROFIBUS DPV0, Class 1 master that maps I/O from PROFIBUS slave devices to Mark* VIe controllers on the I/O Ethernet.
The module contains a processor board common to all Mark VIe distributed I/O modules and an acquisition carrier board fitted with a COM-C PROFIBUS communication module supplied by Hilscher GmbH. The COM-C module provides a PROFIBUS RS-485 interface through a DE-9 D-sub receptacle connector. It serves as a PROFIBUS DP master supporting transmission rates from 9.6 KBaud to 12 MBaud and up to 125 slaves with 244 bytes of inputs and outputs per slave.
The PPRF supports the following redundancy options:
• Single I/O pack with single I/O Ethernet connection (no redundancy)
• Single I/O pack with dual I/O Ethernet connections
• Hot-backup I/O pack with dual I/O Ethernet connections
The dual I/O Ethernet connection configuration is common to other IO packs. However, in the hot-backup two PPRFs are employed, one operating as the active PROFIBUS master communicating with slave devices, and the other operating in a passive, stand-by mode, ready to become the active master in the event of an active master failure.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS220PPRFH1B |
| Ordering Information |
IS220PPRFH1B |
| Product Catalog |
Mark VIe |
| Description |
PROFIBUS Master Gateway Module |
| Voltage |
28 Vdc |
| Current |
18 A |
| Dimensions |
8.3 cm × 4.2 cm × 12.2 cm |
| Weight |
340 g |
