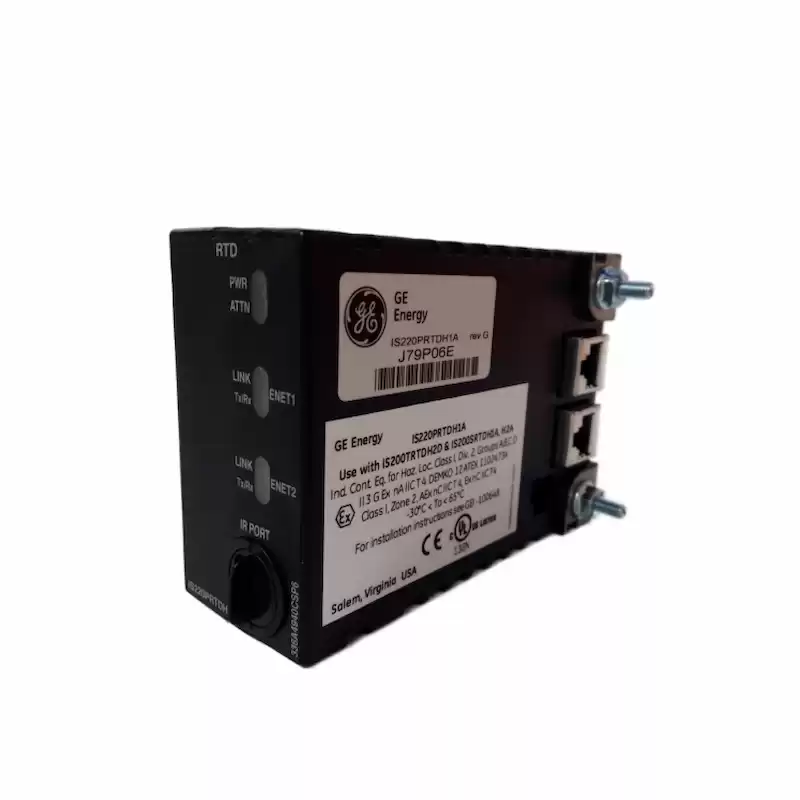

GE IS220PRTDH1A Resistance Temperature Device Input Module
The Resistance Temperature Device (RTD) Input (PRTD) pack provides the electrical interface between one or two I/O Ethernet networks and a RTD input terminal board. The pack contains a processor board common to all Mark*VIe distributed I/O packs and an acquisition board specific to the thermocouple input function. The I/O pack is capable of handling up to eight RTD inputs and can handle 16 RTD inputs on the TRTD terminal boards.
Input to the pack is through a DC-37 pin connector that connects directly with the associated terminal board connector, and a three-pin power input. Output is through dual RJ45 Ethernet connectors. Visual diagnostics are provided through indicator LEDs.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS220PRTDH1A |
| Ordering Information |
IS220PRTDH1A |
| Product Catalog |
Mark* VIe
|
| Description |
Resistance Temperature Device Input Module |
| Voltage |
28 Vdc |
| Current |
0.36 A |
| Dimensions |
8.3 cm × 4.2 cm × 12.2 cm |
| Weight |
340 g |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
