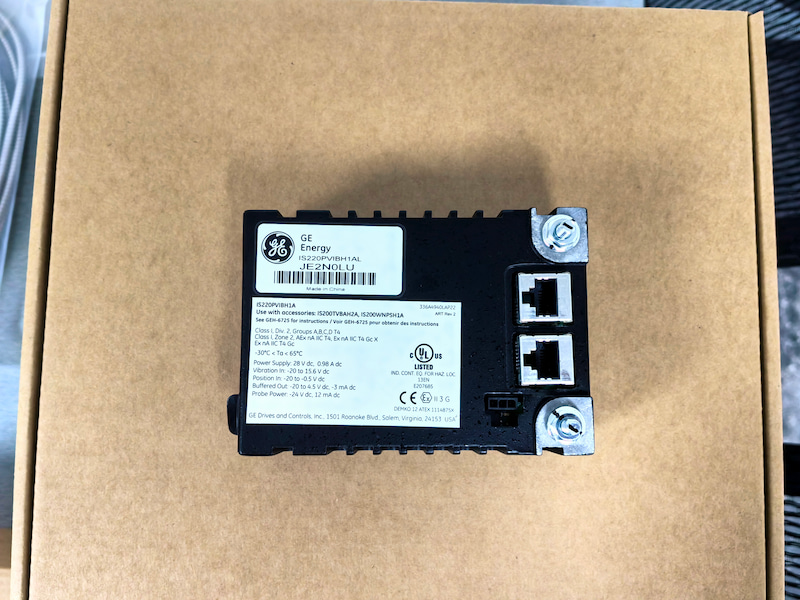

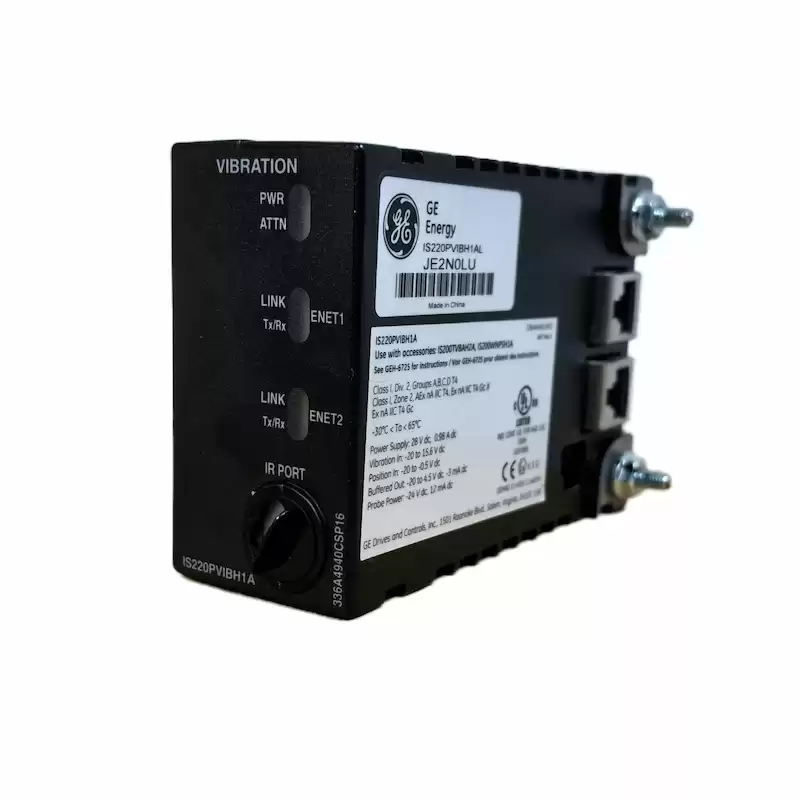

PVIB Vibration Monitor Module
The Vibration Monitor (PVIB) pack provides the electrical interface between one or two I/O Ethernet networks and the TVBA vibration terminal board. The pack contains a processor board common to all Mark* VIe distributed I/O packs, an acquisition board and a daughterboard. The pack uses channels 1 through 8 to read vibration or proximity information from the following sensor types: Proximitors®, accelerometers with an integrated output (Channels 1-3 only), Velomitor®, or seismics. Channels 9 through 12 only support proximitors and channel 13 can input either a Keyphasor® signal-type or a proximity-type signal.
Input to the pack is through dual RJ45 Ethernet connectors and a 3-pin power input. The PVIB supports dual Ethernet networks for frame rates slower than 100 Hz. It supports single Ethernet network for frame rates of 3.125, 6.25, 12.5, 25, 50, and 100 Hz. Output is through a DC-37 pin connector that connects directly with the associated terminal board connector. Visual diagnostics are provided through indicator LEDs.
Compatibility
PVIBH1A is compatible with the Vibration Terminal Board (TVBA), but not compatible with the TVIB. The following table gives details of the compatibility:
| Terminal Board |
TVBA |
|
TVIB |
| Control mode |
Simplex-yes |
TMR-yes |
No |
Control mode refers to the number of I/O packs used in a signal path:
• Simplex uses one I/O pack with one or two network connections.
• TMR uses three I/O packs with one network connection on each pack.
Technical Specifications
| Manufacturer |
General Electric |
| Part Number |
IS220PVIBH1A |
| Ordering Information |
IS220PVIBH1A |
| Product Catalog |
Mark VIe Control Systems |
| Description |
Vibration Monitor I/O Pack |
| Voltage |
28 Vdc |
| Current |
1 A |
| Dimension |
8.3 cm × 4.2 cm × 12.2 cm |
| Weight |
340 g |
