Product Description：

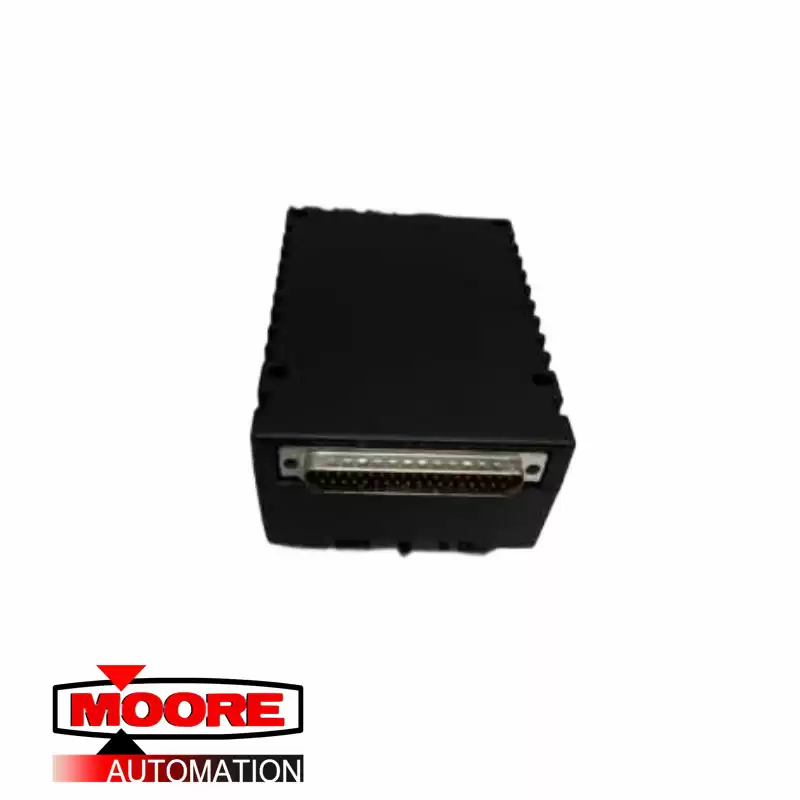

The IS220PVIBH1A model was designed as a Vibration Monitor Pack. The main function of the PVIB pack is to provide an electrical interfacing function between up to two I/O Ethernet networks and a vibration terminal board. The main components of this pack are the main processor board which is used with a majority of the MK VIe distributed I/O packs as well as a daughterboard and an acquisition board.
The sensor types are used with different channels, for example, the accelerometers are only used with channels one, two, and three. Please note that channels nine, ten, eleven, and twelve can only be used in supporting proximitors while the thirteenth channel can input a proximity-type or Keyphasor signal type. Note that the thirteen differential inputs on the IS220PVIBH1A pack have a DAC (digital analog converter) which is used for bias adjustment which can void the DC content of the signal which will better center the A/D (analog-to-digital) input range.
