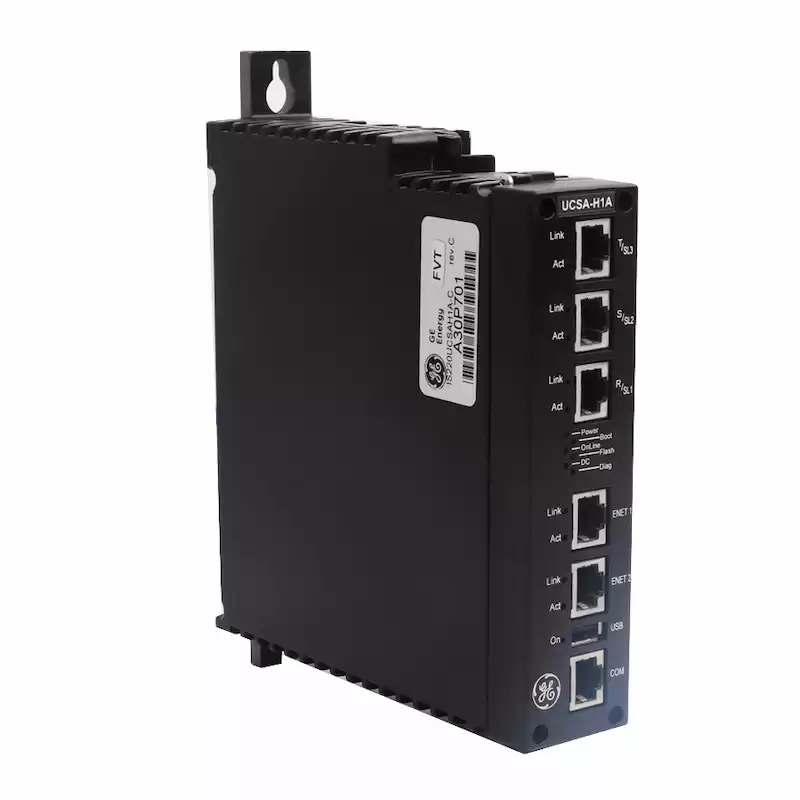

IS220UCSAH1A Mark VIe Controller Module
The IS220UCSAH1A Module contains a 667 MHz Power QUICC II Pro Freescale processor. Two 10/100BaseTX Ethernet ports provide connectivity to the UDH, and three additional 10/100Base TX Ethernet ports provide connectivity to the IONets.
LEDs
The UCSA module has the following LEDs:
• Link displays solid green if the Ethernet PHY on the UCSA has established a link with an Ethernet switch port.
• Act indicates packet traffic on an Ethernet interface. This LED may blink if the traffic is low, but is solid green in most systems.
• Power displays solid Green when the internal 5 V supply is up and regulating. The UCSA converts the incoming 28 V dc to 5 V dc. All other internal power planes are derived from the 5 V.
• Boot displays solid red or blinking red during the boot process. The boot blink codes are described below.
− Online displays solid green when the controller is online and running application code.
− Flash blinks amber when any flash device is being accessed.
− Dc displays solid green when the controller is the designated controller.
− Diag displays solid red when the controller has a diagnostic available. The diagnostic can be viewed and cleared using the ToolboxST application.
− On displays solid green when the USB is active.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS220UCSAH1A |
| Ordering Information |
IS220UCSAH1A |
| Product Catalog |
Mark VIe |
| Description |
Controller Module |
| Voltage |
28 Vdc |
|
Frequency
|
1 Hz |
| Dimensions |
20 cm x 16 cm x 4 cm |
| Weight |
1 kg |
