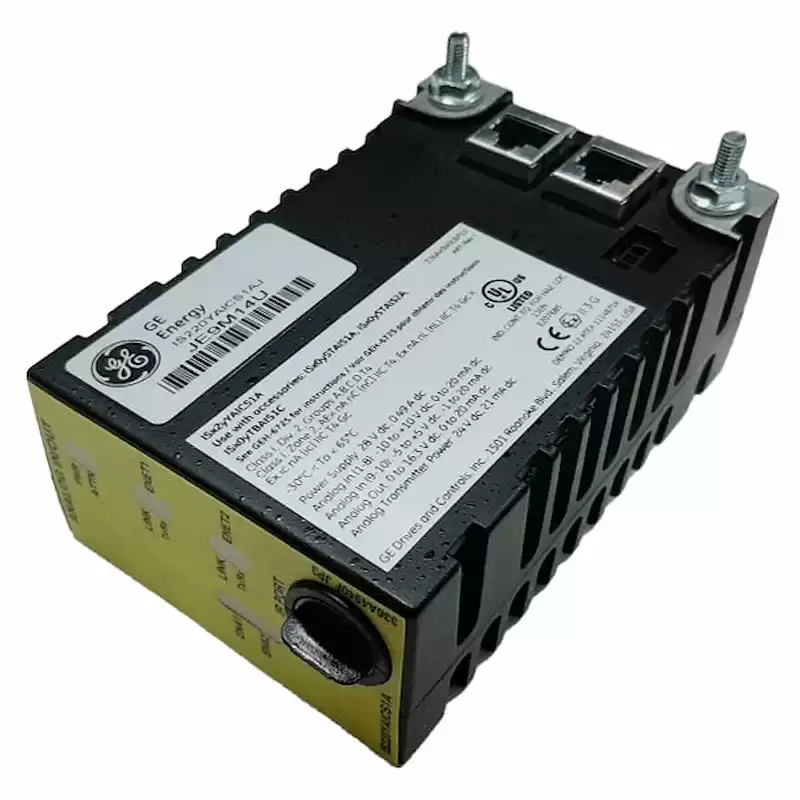

IS220YAICS1A Mark VIeS Safety Analog I/O Pack
The Analog I/O pack (IS220YAICS1A) provides the electrical interface between one or two I/O Ethernet networks and an analog I/O terminal board. The YAIC contains a common processor board and an acquisition board specific to the analog input function. The I/O pack is capable of handling up to 10 analog inputs, the first eight of which can be configured as ±5 V or ±10 V inputs, or 4-20 mA current loop inputs. The last two inputs can be configured as ±1 mA or 4-20 mA current inputs.

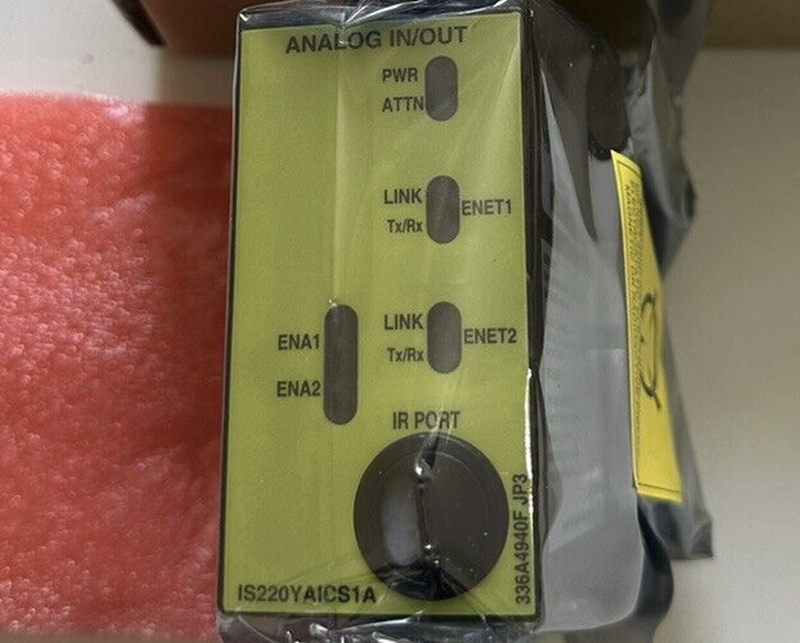

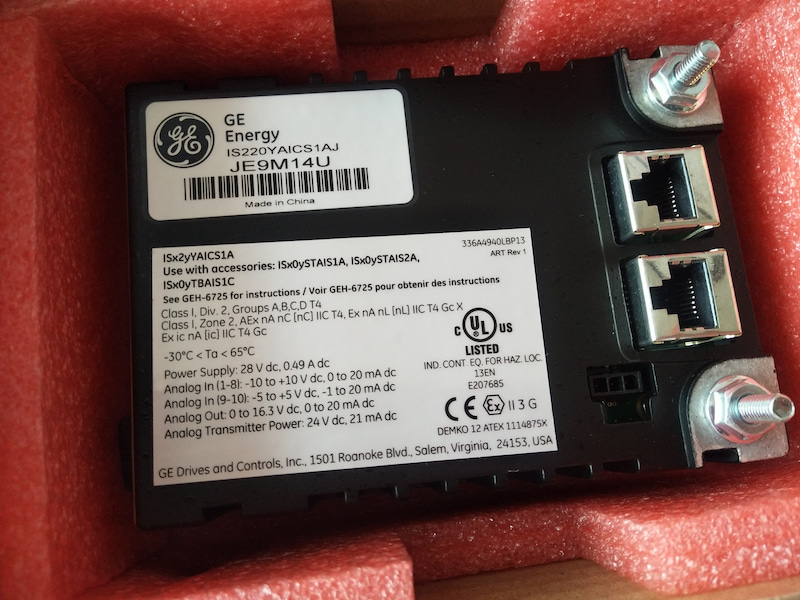

The load terminal resistors for current loop inputs are located on the terminal board and voltage is sensed across these resistors by the YAIC. The I/O pack also includes support for two 0-20 mA current loop outputs. The I/O pack receives or sends data through dual RJ-45 Ethernet connectors to the controller and has a three-pin connector to power it on. Output is through a DC-37 pin connector that connects directly with the associated terminal board connector. Visual diagnostics are provided through indicator LEDs.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS220YAICS1A |
| Ordering Information |
IS220YAICS1A |
| Product Catalog |
Mark VIeS |
| Description |
Safety Analog I/O Pack |
| Voltage |
24 Vdc |
| Current |
20 mA |
| Dimensions |
8.3 cm × 4.2 cm × 12.2 cm |
| Weight |
340 g |
