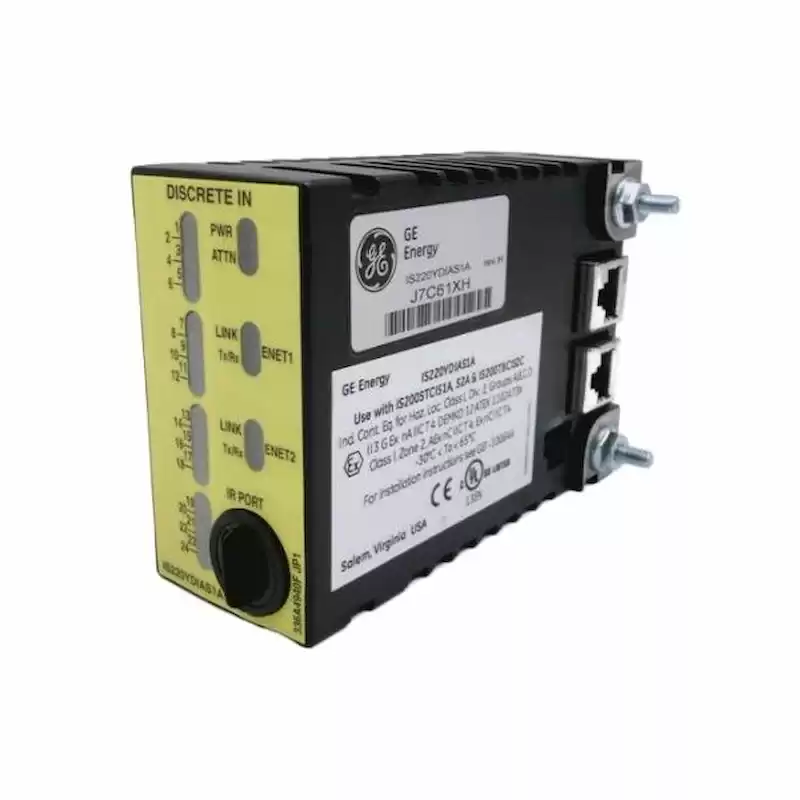

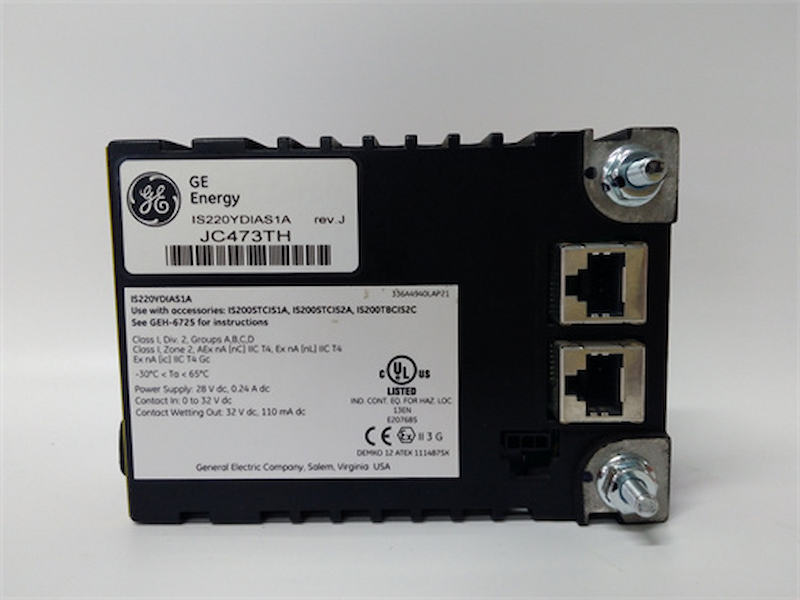

IS220YDIAS1A Discrete Input Module
The Discrete Input (IS220YDIAS1A) I/O pack provides the electrical interface between one or two I/O Ethernet networks and a discrete input terminal board. The YDIA contains a common processor board and an acquisition board specific to the discrete input function. The YDIA I/O pack accepts up to 24 contact inputs and terminal board specific feedback signals, and supports three different voltage levels.
System input to the pack is through dual RJ-45 Ethernet connectors and a three-pin power input. Discrete signal input is through a DC-37 pin connector that connects directly with the associated terminal board connector. Visual diagnostics are provided through indicator LEDs.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS220YDIAS1A |
| Ordering Information |
IS220YDIAS1A |
| Product Catalog |
Mark VIeS |
| Description |
Discrete Input Module |
| Voltage |
28 Vdc |
| Current |
110 mA |
| Dimensions |
8.3 cm × 4.2 cm × 12.2 cm |
| Weight |
340 g |
