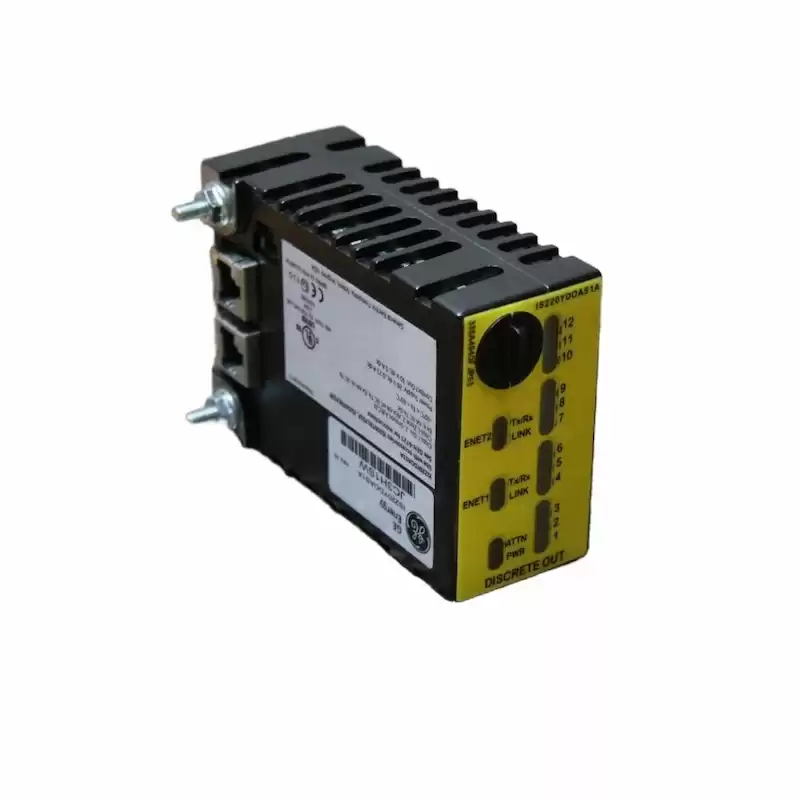

IS220YDOAS1A Mark VIeS Safety Discrete Output I/O Pack
The IS220YDOAS1A Discrete Output I/O pack provides the electrical interface between one or two I/O Ethernet networks and a discrete output terminal board. The pack contains a common processor board and an acquisition board specific to the discrete output function.

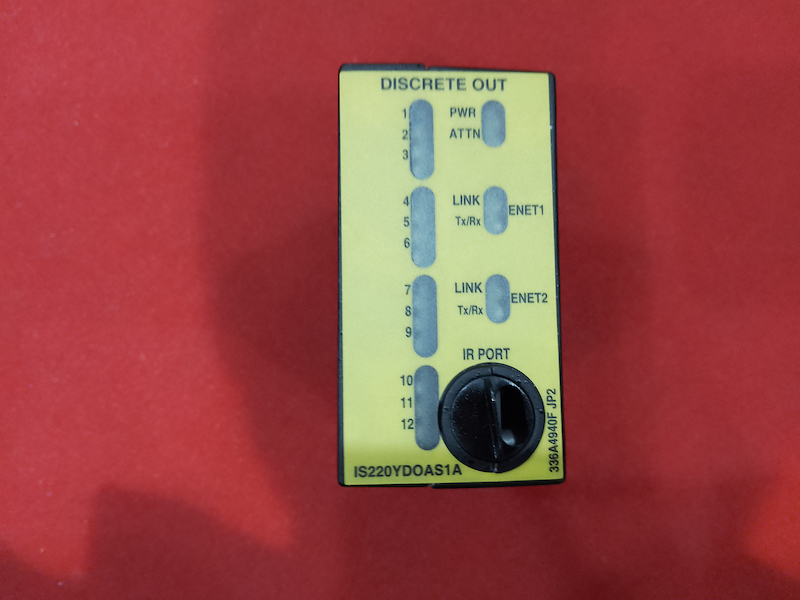

The IS220YDOAS1A is capable of controlling up to 12 relays and accepts terminal board specific feedback. Electromagnetic relays (with types TRLYS1B, D, and F terminal boards) are available. Input to the pack is through dual RJ-45 Ethernet connectors and a three-pin power input.Output is through a DC-37 pin connector that connects directly with the associated terminal board connector. Visual diagnostics are provided through indicator LEDs.
Connectors:
• A DC-37 pin connector on the underside of the YDOA connects directly to a discrete output terminal board.
• An RJ-45 Ethernet connector named ENET1 on the pack side is the primary system interface.
• A second RJ-45 Ethernet connector named ENET2 on the pack side is the redundant or secondary system interface.
• A 3-pin power connector on the pack side is the input point for 28 V dc power for the pack and terminal board.
Technical Specifications
| Manufacturer |
General Electric |
| Part Number |
IS220YDOAS1A |
| Ordering Information |
IS220YDOAS1A |
| Product Catalog |
Mark VIeS Safety System |
| Description |
Discrete Output I/O Pack |
| Voltage |
28 Vdc |
| Current |
1 A |
| Dimension |
8.3 cm × 4.2 cm × 12.2 cm |
| Weight |
340 g |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
