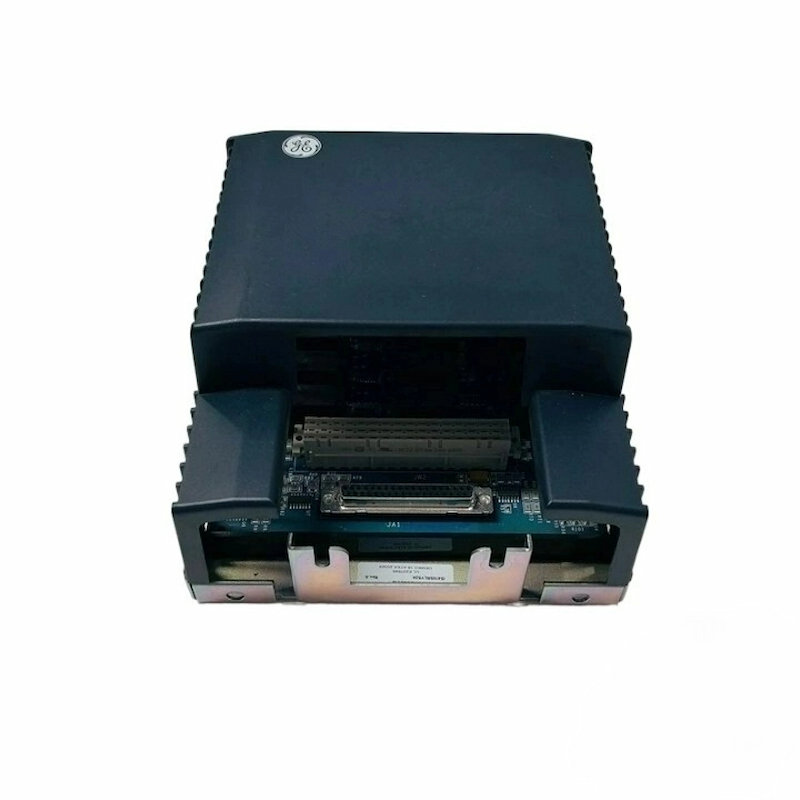

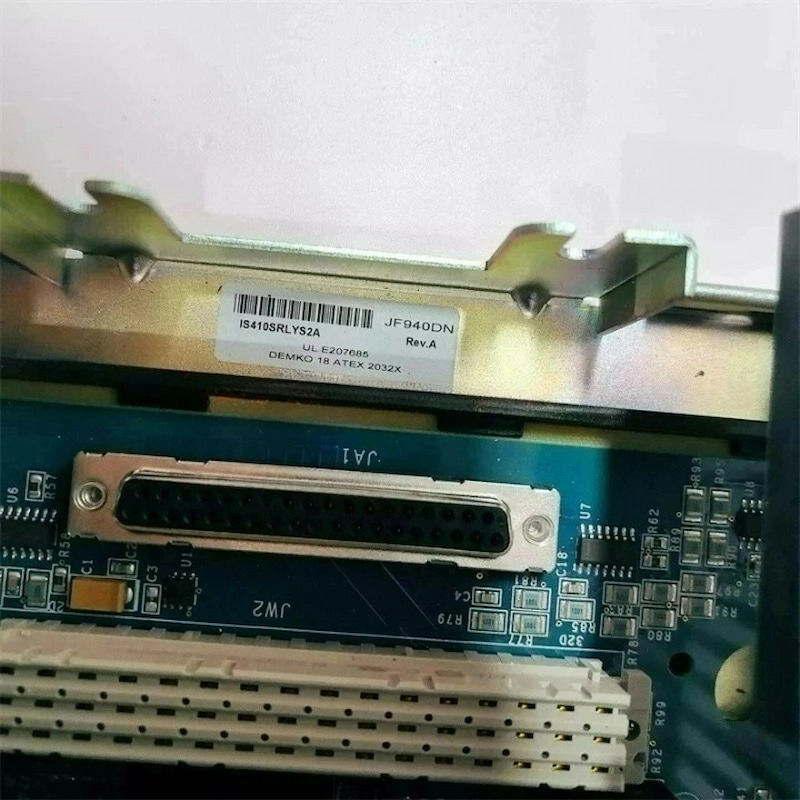

IS410SRLYS2A Simplex Relay Output Terminal Board
The Simplex Relay Output (SRLY) terminal board is a simplex S-type terminal board accepting a YDOA I/O pack and providing 12 form-C relay output circuits through 48 customer terminals. The SRLY has the same physical size, customer terminal locations, and I/O pack mounting as other S-type terminal boards. There will be no components higher than an attached I/O pack, permitting double stacking of terminal boards. Each relay on SRLY uses an isolated contact pair as position feedback to the I/O pack.
One SRLY group is approved for use with the YDOA: the IS410SRLYS2A terminal board has pluggable, Euro style box-type terminal blocks and two connectors that can accept a variety of optional daughterboards.
There are three optional daughterboards available to plug onto the SRLYS2A:
• IS400WROBH1A turns SRLY into the functional equivalent of the TRLYS1B. This option provides fused and sensed power distribution to the first six relays and dedicated power to the last relay.
• IS400WROFH1A puts a single fuse in series with each relay common connection. Fuse voltage feedback is included.
• IS400WROGH1A distributes power from an input connector to each relay through a single fuse. Fuse voltage feedback is included.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS410SRLYS2A |
| Ordering Information |
IS410SRLYS2A |
| Product Catalog |
Mark VIeS |
| Description |
Simplex Relay Output Terminal Board |
| Voltage |
24 Vdc |
| Current |
2.25 A |
| Dimensions |
15.9 cm x 17.8 cm x 8.6 cm |
| Weight |
2 kg |
