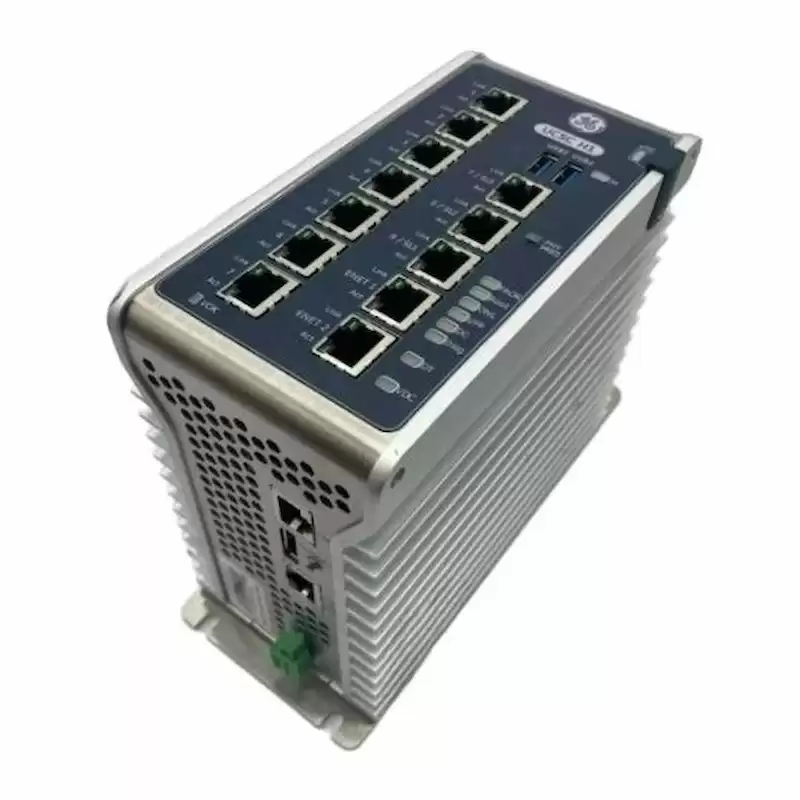

IS420UCECH1B I/O Port Expansion Module
The IS420UCECH1B module is a IS420UCSCH1B controller coupled with a seven I/O port expansion board.
The IS420UCSCH1B controller contained within the IS420UCECH1B module has the same features and benefits as the stand-alone IS420UCSCH1B controller. The controller is loaded with software specific to its application.
The IS420UCECH1B is available beginning with ControlST V07.03, and supports Excitation control applications.

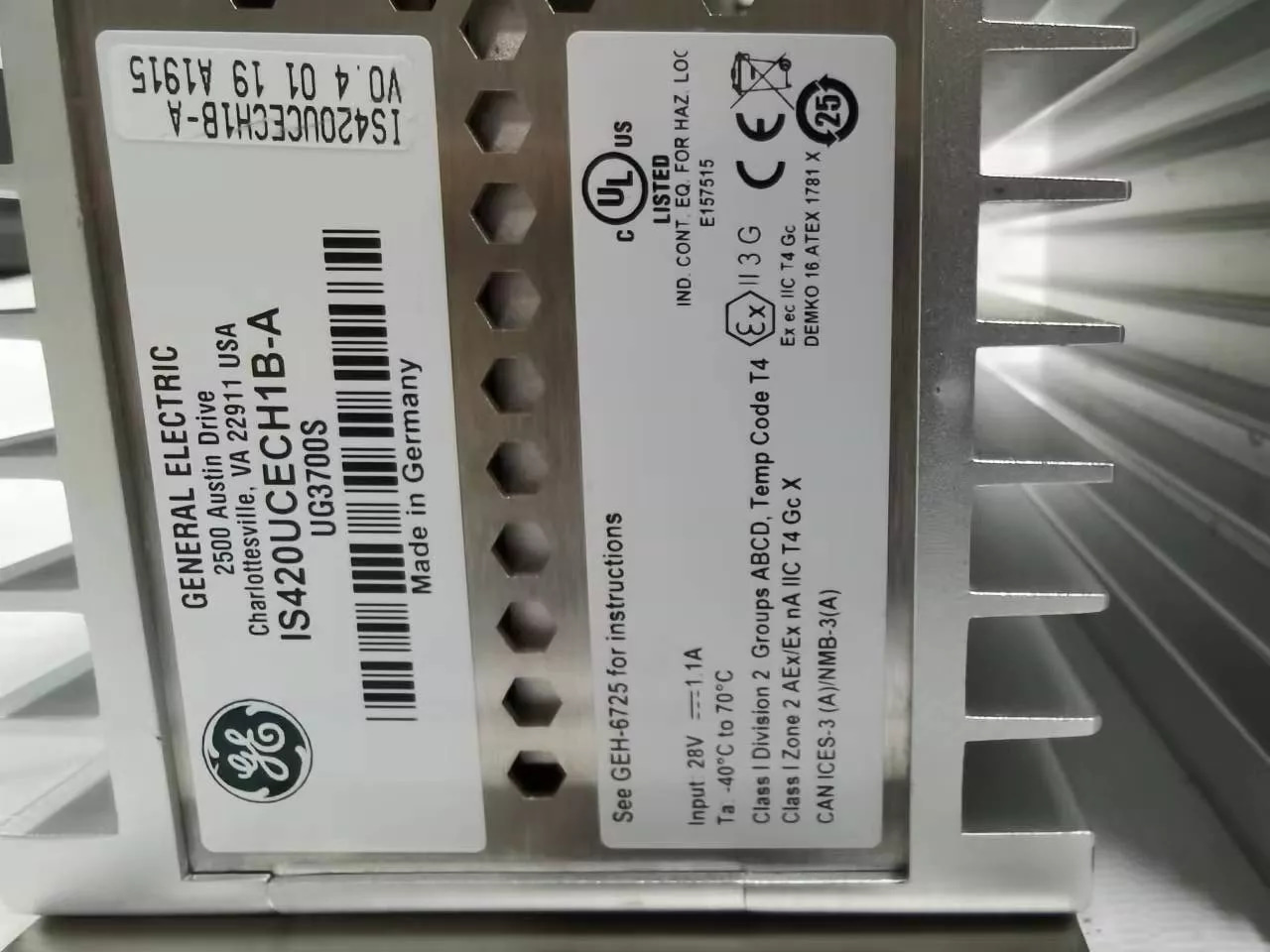

The IS420UCECH1 module is certified for hazardous location usage. This module is an IS420UCSCH1 controller coupled with a seven I/O port expansion board. The UCSCH1 controller contained within the UCECH1 module has the same features and benefits as the stand-alone UCSCH1 controller. For further details on the UCECH1 module, refer to the Mark VIe and Mark VIeS Control Systems Volume II: General-purpose Applications System Guide (GEH-6721_Vol_II), the section UCECH1x I/O Port Expansion Module.
IS420UCECH1B Module and Platform Configuration Supported Features
|
Module
|
Platform
|
Expansion I/O
Ports
|
Embedded
PPNG
|
Embedded
EtherCAT
|
EFA
|
|
UCECH1B
|
UCSCH1x
|
7, RJ-45
|
X
|
X
|
✓
|
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS420UCECH1B |
| Ordering Information |
IS420UCECH1B |
| Product Catalog |
Mark VIe |
| Description |
I/O Port Expansion Module |
|
Ports
|
7 expansion I/O ports
|
|
Cooling
|
Convection
|
| Dimensions |
168 mm x 150 mm x 85 mm |
| Weight |
2 kg |
