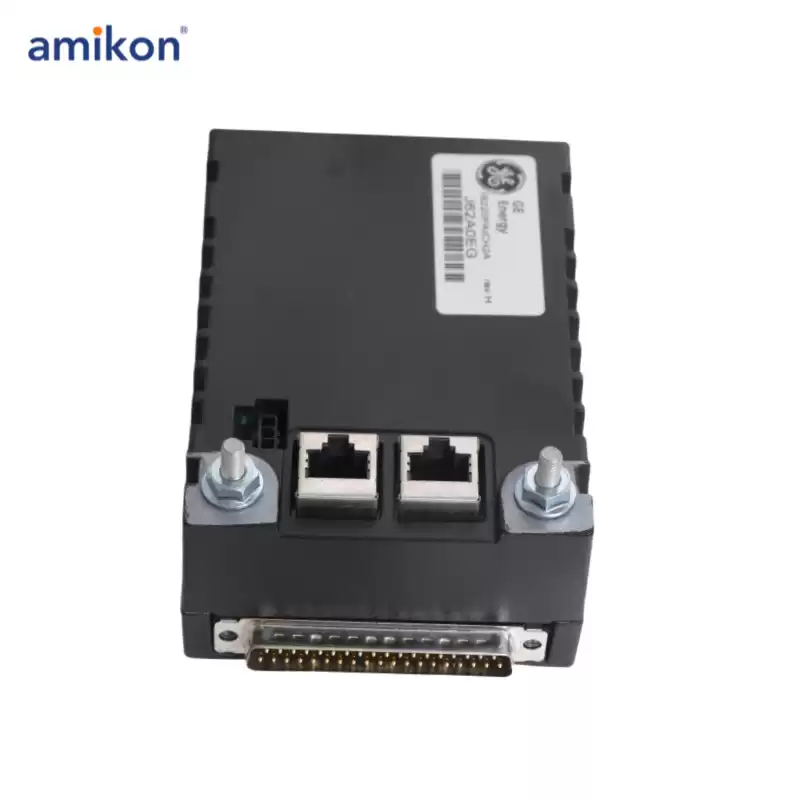

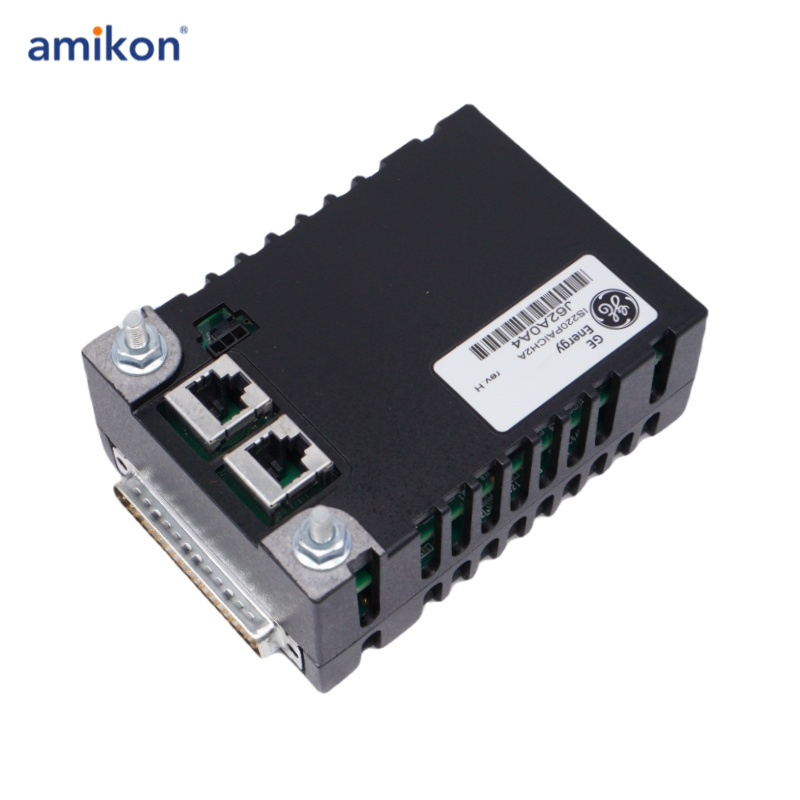

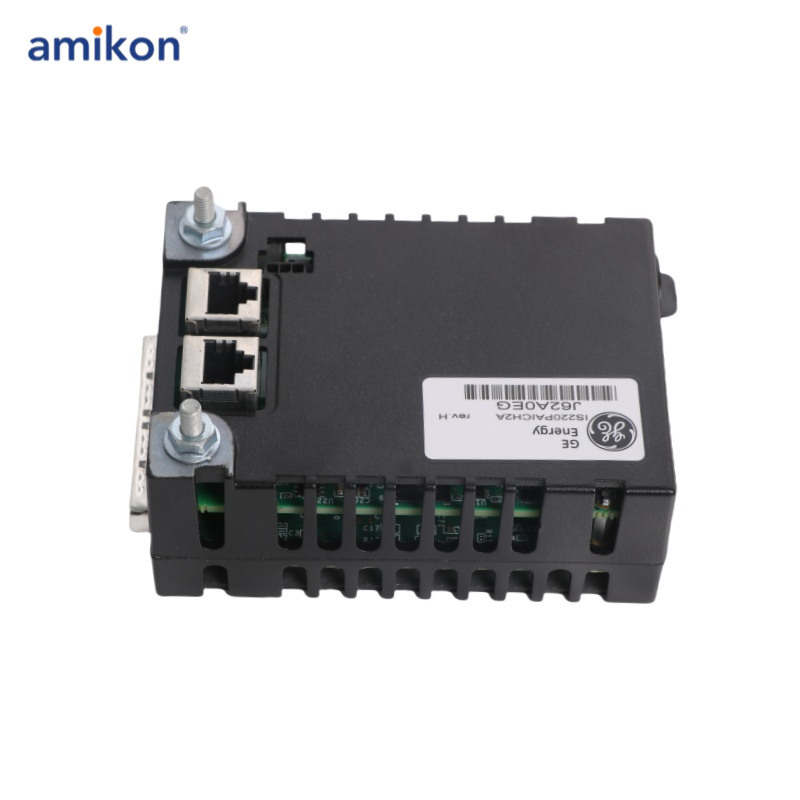

GE Mark VI Analog I/O Module IS220PAICH2B

Contact me to get the best price：

 sales7@amikon.cn      86-18965423501   86-18965423501   AMKPLC

Products Detail:

SPECIFICATIONS
Part No.: IS220PAICH2B
Manufacturer: General Electric
Country of Manufacture: United States(USA)
Product Type: Analog I/O Module
Series: Mark VIe

The IS220PAICH2B is an Analog I/O Module developed by GE. The module functions as an electrical interface between one or two Ethernet I/O networks and an input terminal board. The pack includes a processor board that is shared by all Mark VIe distributed I/O packs and an acquisition board dedicated to the analog input function. The pack can handle up to ten analog inputs, the first eight of which can be set to 5 V or 10 V inputs or 0-20 mA current loop inputs.

IS220PAICH2B Connectors：
The following connectors are included in the pack:
-A DC-37 pin connector on the I/O pack's underside connects directly to the discrete input terminal board. -The 24 input signals, ID signal, relay coil power, and feedback multiplex command are all housed on the connector.
-The primary system interface is an RJ45 Ethernet connector labeled ENET1 on the pack's side.
-The redundant or secondary system interface is a second RJ45 Ethernet connector on the pack's side labeled ENET2.
-A 3-pin power connector on the pack's side provides 28 V dc power to the pack and terminal board.
