Products Detail:
|
Brand
|
General electric
|
|
Part Number
|
IS200VCMIH2CAA
|
|
Product Type
|
Communication Controller Board
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|
SPECIFICATIONS:
Part Number: IS200VCMIH2CAA
Manufacturer: General Electric
Series: Mark VI
Product Type: VME Bus Master Communication Controller Board
Operating System: QNX
Power Requirements: +5 V dc, 6 A
Number of input channels: 24
Processor: TMS320C32 32-bit
Number of relay channels: 12
Trip Solenoid Rating: 125 V dc
Power supply voltage: 28 V dc
Dual-Port Memory: 32 Kbytes
Voltage Range: 18 - 32 VDC

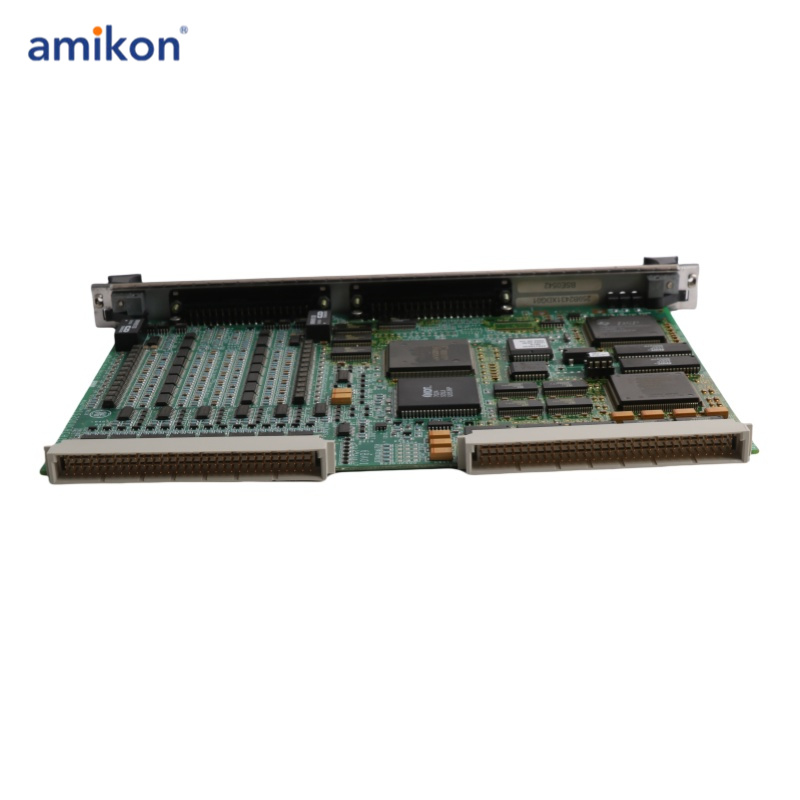

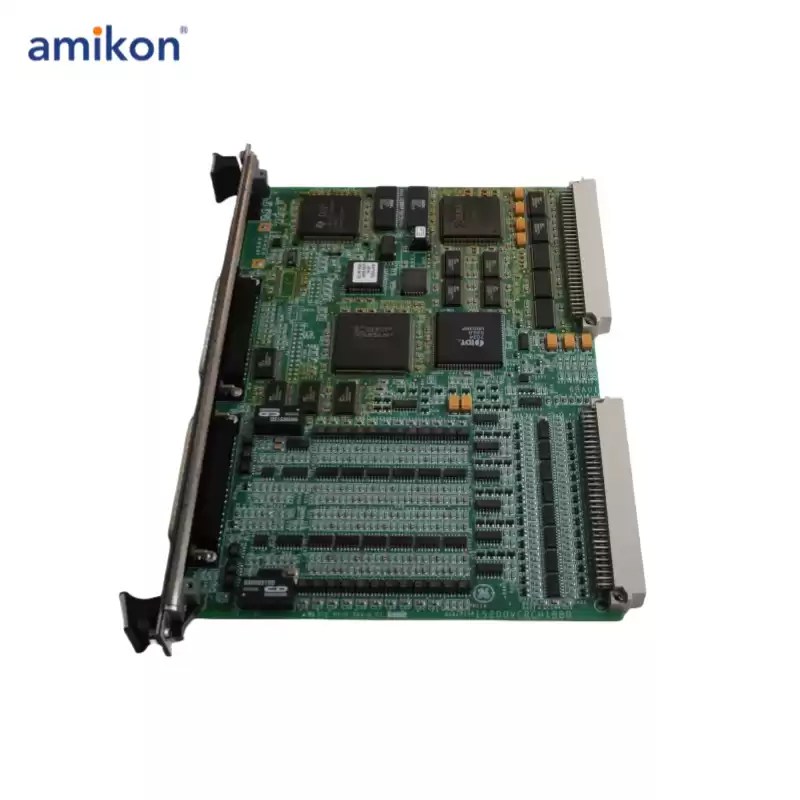

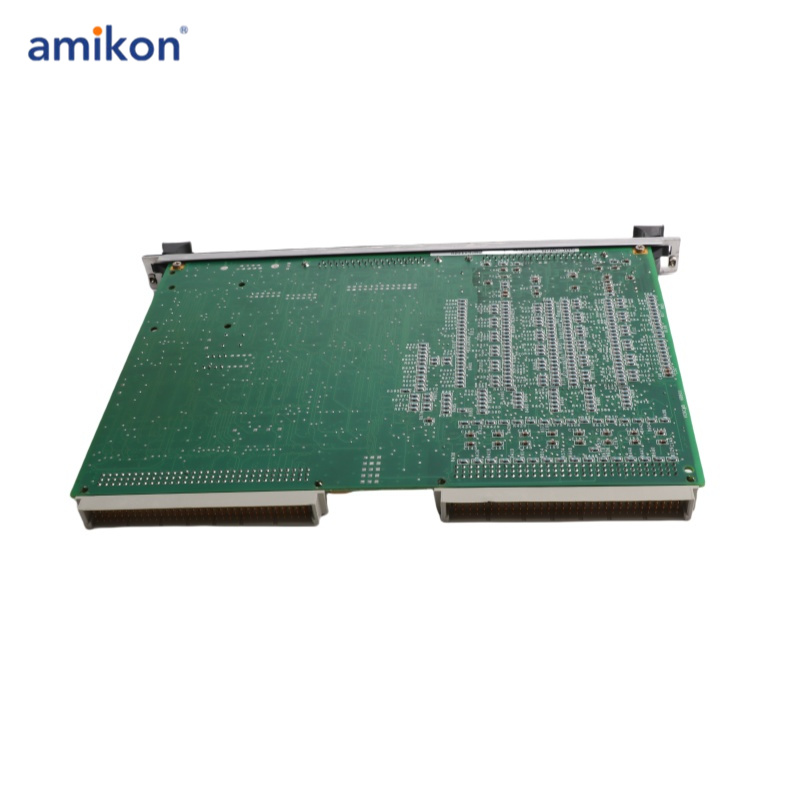

IS200VCMIH2CAA is a VME Bus Master Communication Controller Board manufactured and designed by General Electric as part of the Mark VI Series used in GE Speedtronic Gas Turbine Control Systems. The VCMI serves as the communication link between the controller and I/O boards, as well as the interface to the IONet, the system control network. Acting as the VME bus master within both control and I/O racks, the VCMI oversees the identification of all boards in the rack, including their terminal boards. The diagram depicts three simple system setups that incorporate both local and remote I/O connected via the VCMI. Several I/O racks can connect to the IONet, each equipped with its own VCMI board. For applications that need high-speed data transfer with minimal latency, the VCMI provides a second IONet port, which can be utilized as a parallel IONet channel, as illustrated in the lower section of the diagram. In the first example, a compact system is presented in which all I/O is housed within the VME control rack, eliminating the need for remote I/O racks. Each channel (R, S, T) operates with its dedicated IONet, and the VCMI is equipped with three IONet ports.
