Products Detail:
|
Brand
|
General electric
|
|
Part Number
|
IS220PPROS1B
|
|
Product Type
|
Protection I/O Module
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|

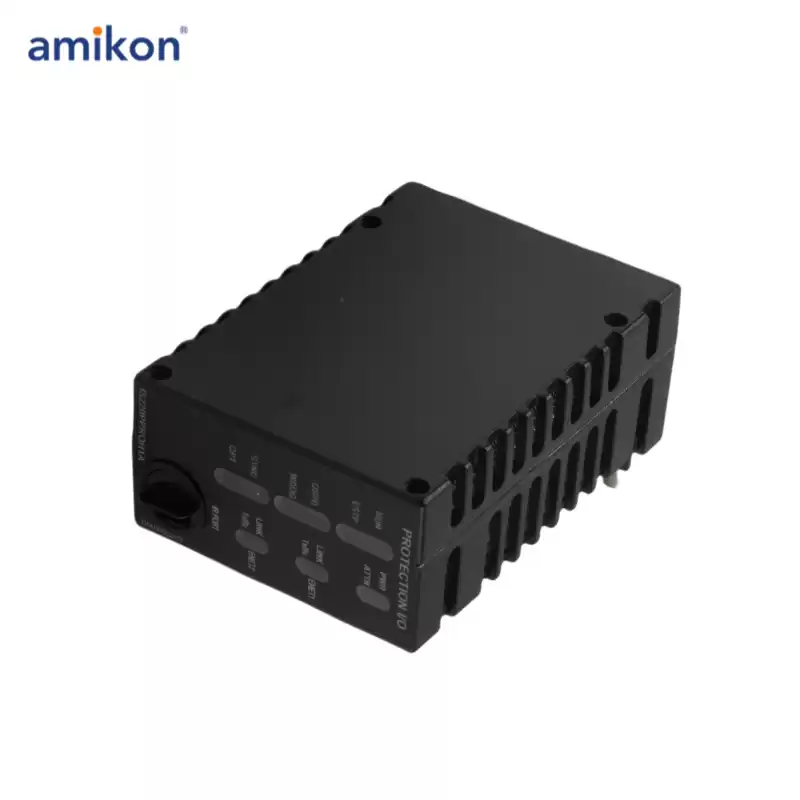

IS220PPROS1B is an Emergency Turbine Protection I/O Pack manufactured and designed by General Electric as part of the Mark VIe Series used in GE Distributed Control Systems. A backup Overspeed protection system with a backup check for generator synchronization to a utility bus is provided by the Emergency Turbine Protection I/O pack (PPRO) and related terminal boards. They also serve as the primary control's independent watchdog. Three triple modular redundant (TMR) PPRO I/O packs mounted to a separate simplex protection (SPRO) terminal board make up a typical protection system. Each SPRO is connected to the designated emergency trip board by a cable with DC-37 pin connections on both ends:
TREG: Gas Turbine Emergency Trip Terminal Board.
TREL: Large Steam Turbine Emergency Trip Terminal Board.
TRES: Small/Medium Steam Turbine Emergency Trip Terminal Board.
TREA: Turbine Emergency Trip Terminal Board.
|
Specification
|
Details
|
|
Part No
|
IS220PPROS1B
|
|
Manufacturer
|
General Electric
|
|
Product Type
|
Emergency Turbine Protection I/O Pack
|
|
Series
|
Mark VIe
|
|
Operating Temperature
|
-30 to 65°C
|
|
Power Supply Voltage
|
24 V dc
|
|
Board Size
|
14.3 cm high x 23.1 cm
|
|
Weight
|
0.45 kg
|
|
Availability
|
In Stock
|
|
Country of Origin
|
USA
|
|
Manual
|
GEH-6721L
|
