Products Detail:
|
Brand
|
General electric
|
|
Part Number
|
IS200VSVOH1BED
|
|
Product Type
|
servo control board
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|
About IS200VSVOH1BED:

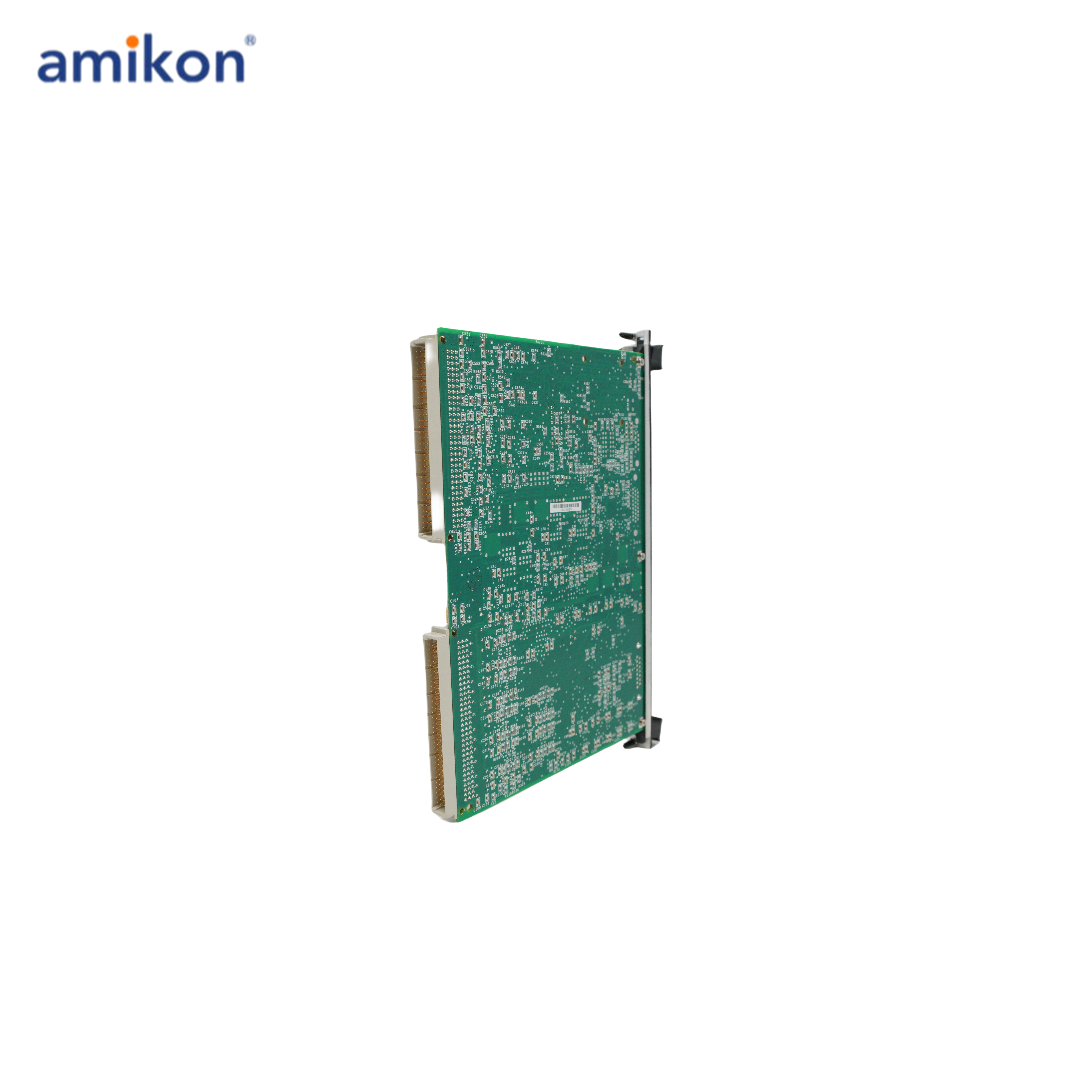

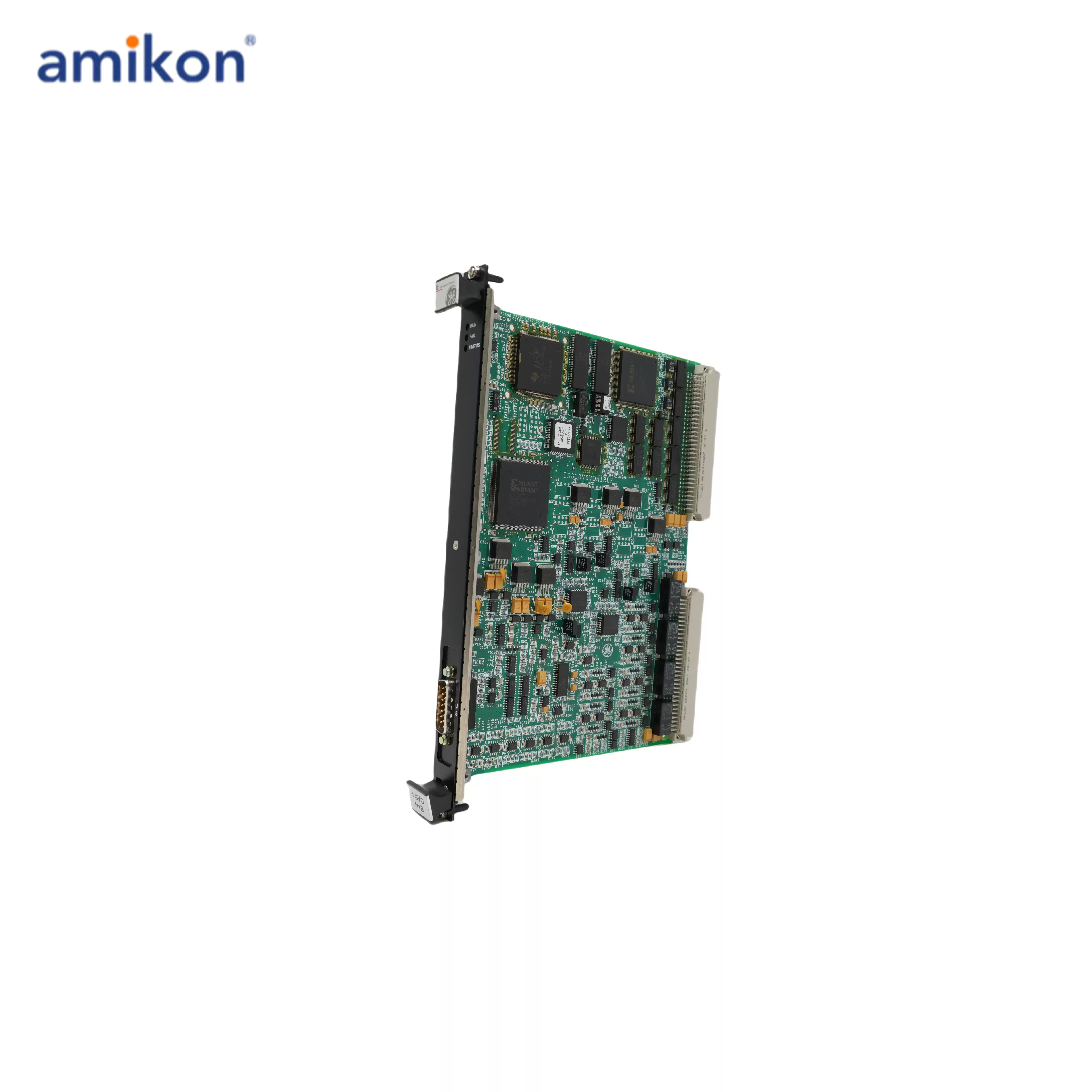

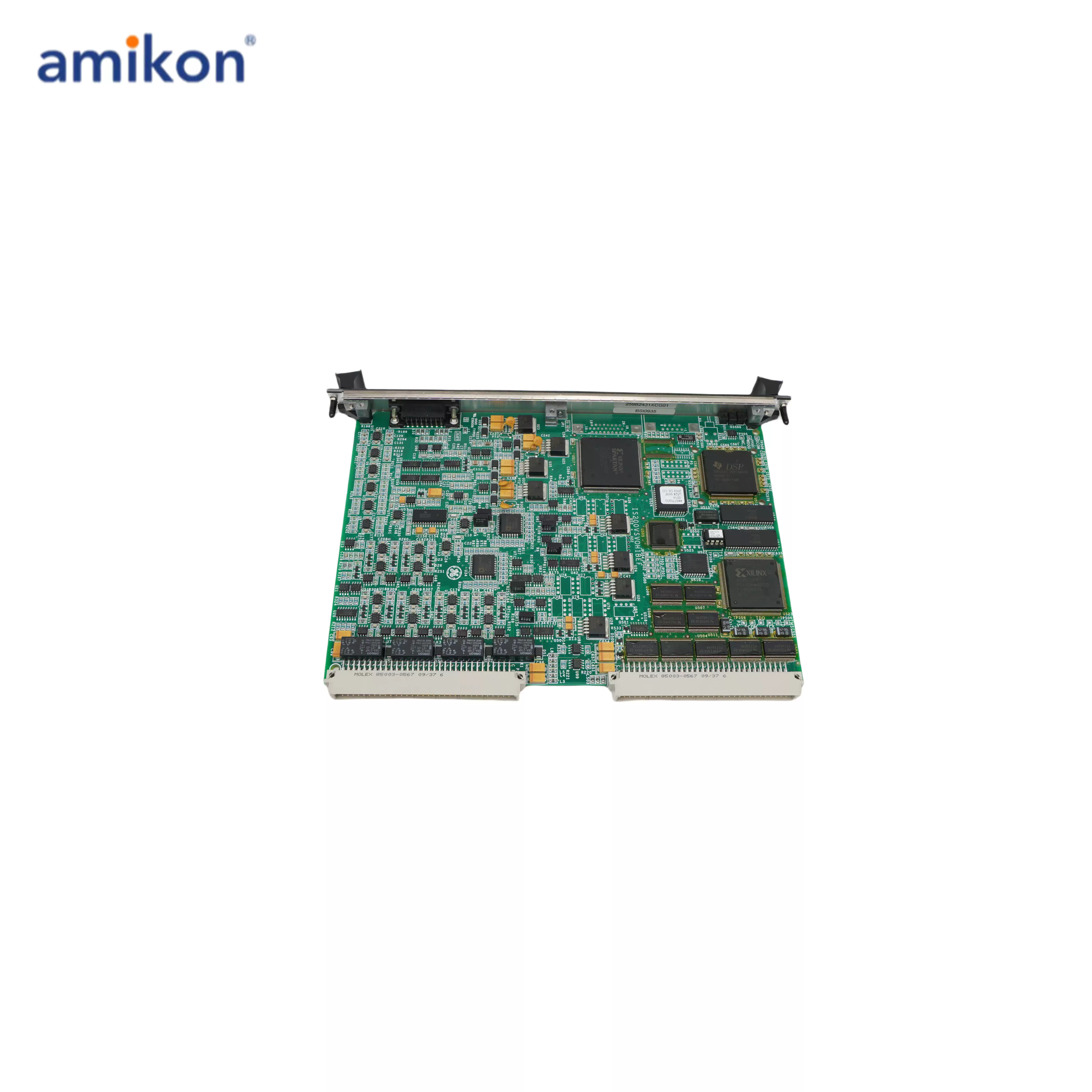

The IS200VSVOH1BED is a PCB component made by General Electric for their Mark VI system. The Mark VI was one of GE’s last gas/steam turbine management systems released as part of their long-running “Speedtronic” line, which began in the 1960s when the first Mark I system was sold. The Mark VI is a technologically advanced turbine management system that includes Ethernet communications capabilities. It has integrated software and hardware and includes an operator interface (also known as an HMI or Human Machine Interface) built around a PC with a Windows operating system.
The IS200VSVOH1BED functions within the Mark VI system as a Servo Control board. The board controls four electro/hydraulic servo valves that drive fuel or steam valves. The valve position is measured using LVDTs, or linear variable differential transformers. A loop control algorithm is run using the IS200VSVOH1BED board.
The IS200VSVOH1BED includes a single-slot front faceplate. This faceplate includes information like the manufacturer’s logo and the board number. The faceplate also includes several components, like a cable connector (J5,) and three LED components (Run/Fail/Stat.)
SPECIFICATIONS:
Part No.: IS200VSVOH1BED
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Power supply voltage: Nominal 24 V dc
LVDT accuracy: 1 percent with 14-bit resolution
LVDT input filter: Low pass filter
LVDT common mode rejection: CMR is 1 V, 60 dB
Magnetic PR pickup signa:l Generates 150 V p-p
Active PR Pickup Signal: Generates 5 to 27 V p-p
Product Type: Servo Control Board
Availability: In Stock
Series: Mark VI
