Products Detail:
|
Brand
|
General electric
|
|
Part Number
|
IS2020RKPSG1A
|
|
Product Type
|
Power Supply Module
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|
SPECIFICATIONS:
Part No.: IS2020RKPSG1A
Manufacturer: General Electric
Product Type: Power Supply Module
Series: Mark VI
Description:
The IS2020RKPSG1A is a Mark VI Power Supply Module produced by GE. The Mark VI was one of the last of General Electric's Speedtronic systems, designed for steam or gas turbine management.

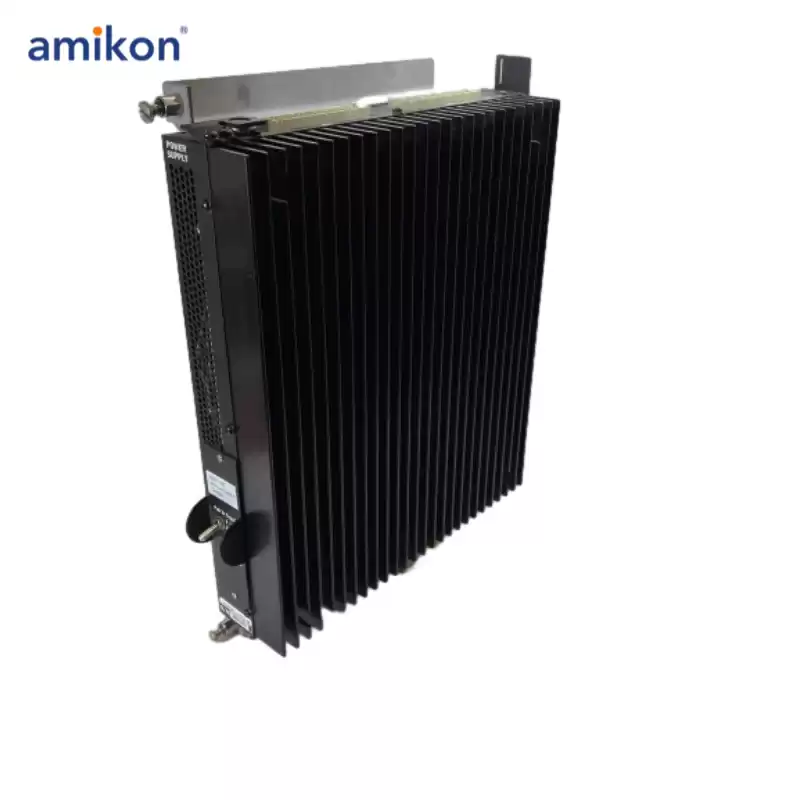

--The IS2020RKPSG1A is a VME rack power supply module that is self-contained. This module's front faceplate is labeled "Power Supply." To allow air to flow into the component, the faceplate features an open (waffled) portion.

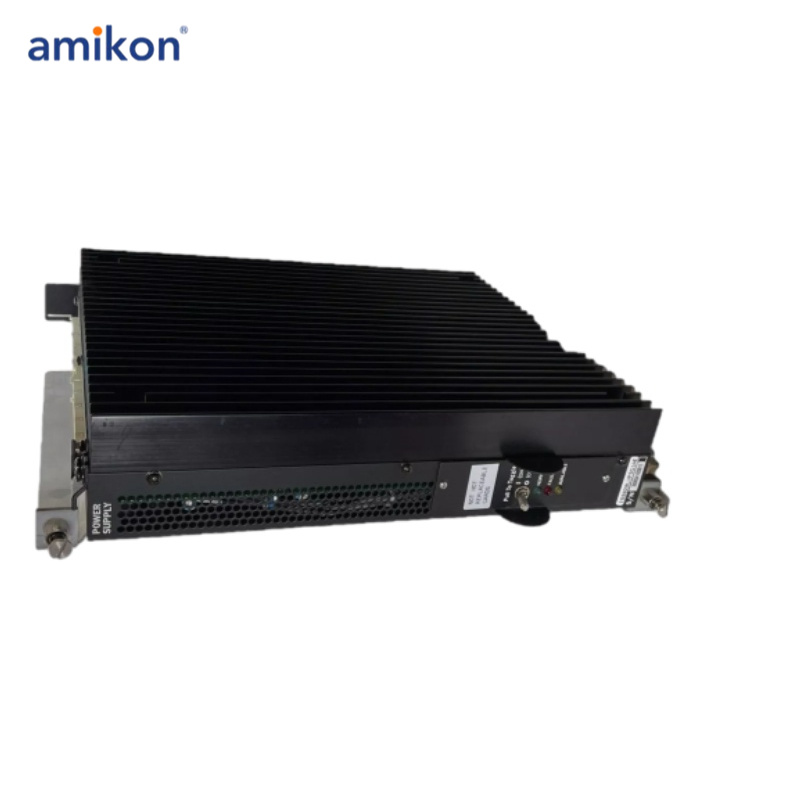

--The GE catalog number, revision number, and serial number are all recorded in three positions at the bottom of the faceplate. A single toggle switch and three LED indicators (green, red, and yellow) are also included in this section of the module.
--The single-user control on the module is this switch. To reset faults, toggle this toggle switch.
--There are three types of faults: those that require a reset action to clear, those that result in an output shutdown, and those that result in the power supply permanently failing.

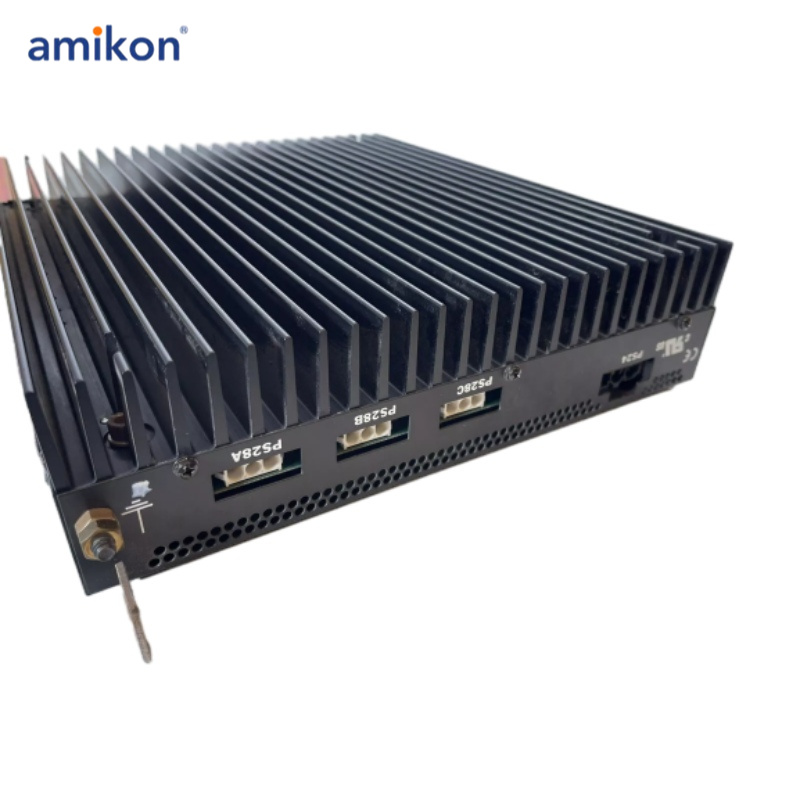

--The output power of this module is 400 W, while the input voltage is 125 Vdc. Three +28V remote outputs, a single PS335 output, and five +28V outputs are among the nine outputs.
A fan is built into the IS2020RKPSG1A's design. The fan, on the other hand, is only activated when the module is in the rack position. The top connector provides power to this fan.
