GE Relay Output Terminal Board IS200TRLYS1B

Contact me to get the best price：

 sales7@amikon.cn      86-18965423501   86-18965423501   AMKPLC

Products Detail:

Specifications
Part No.: IS200TRLYS1B
Manufacturer: General Electric
Product Type: Relay Output Terminal Board
Series: Mark VI

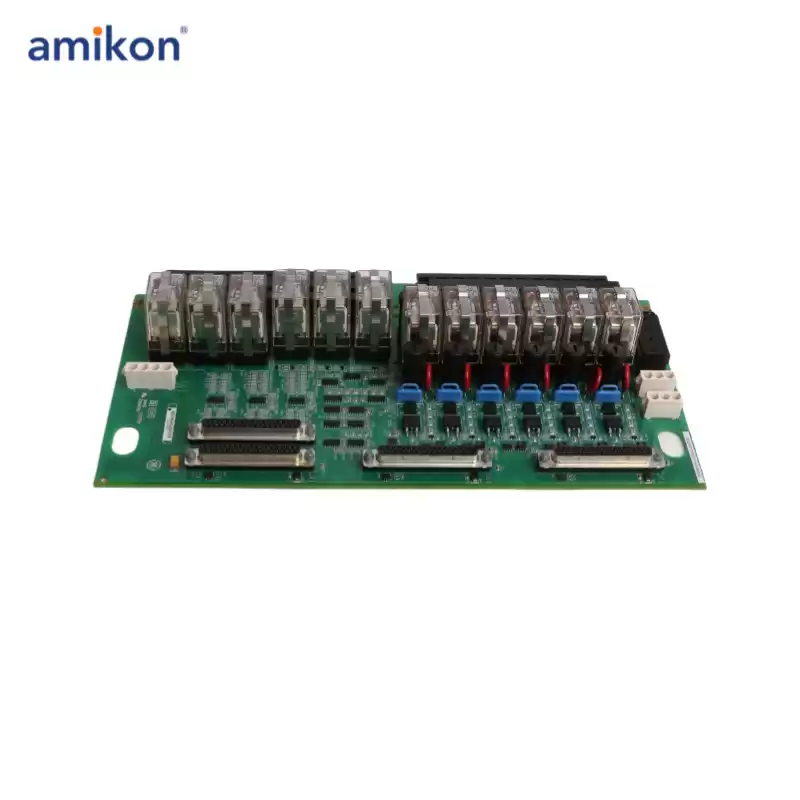

IS200TRLYS1B is a relay termination board developed by GE, which is a type of printed circuit board under the Mark VI series. It was developed as a huge rectangular circuit board having a miscellany of electronic components.

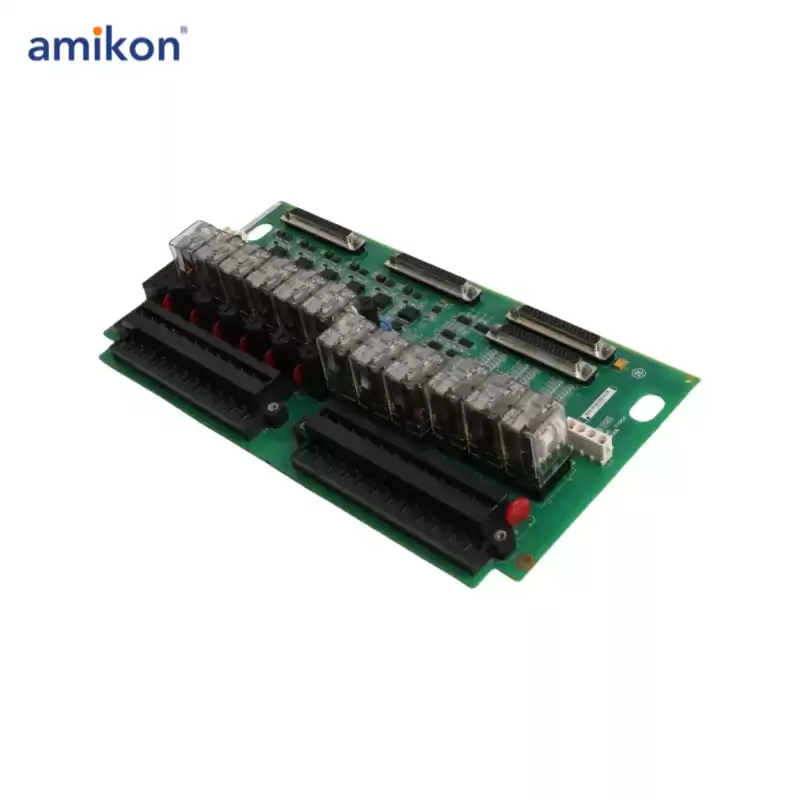

1.It consists of two vertically oriented terminal blocks, each of which has a succession of metal and silver blocks. The terminals, which are all labeled with white numbers ranging from one to twenty-four, sit in the center of a long row of relays or contactors.
2.Transparent acrylic covers the square-shaped relays on this board. A transistor is also included on this board, and each transistor is paired with a circular red MOV (metal oxide varistor). Three white jumpers are seen, along with a bevy of small integrated circuits arranged in lines.
3.Integrated circuits are compact devices with a self-contained network of very small components. Always follow the manufacturer's installation instructions when installing or replacing the board.
