Products Detail:
|
Brand
|
General electric
|
|
Part Number
|
IS200TRTDH1B
|
|
Product Type
|
Input terminal board
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|

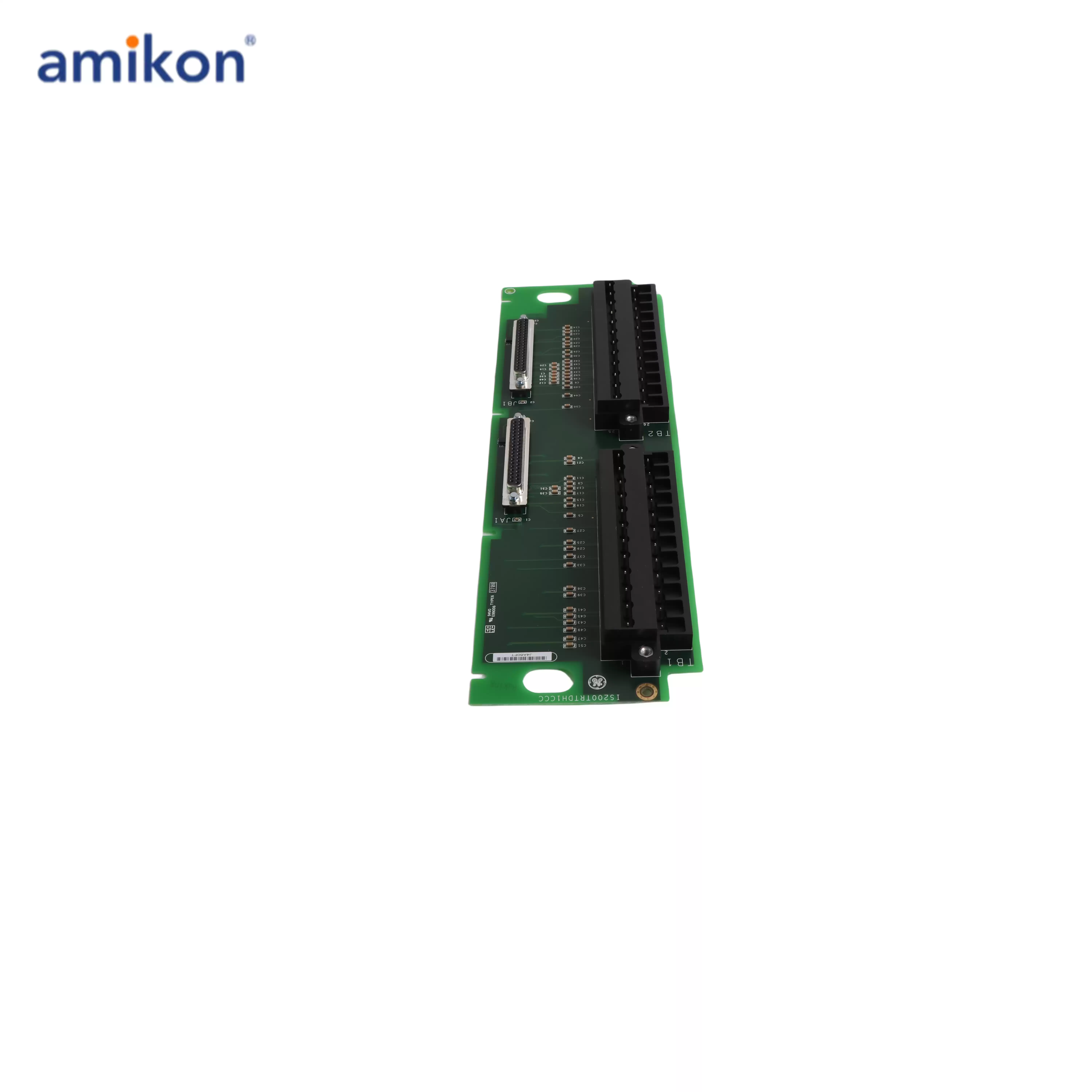

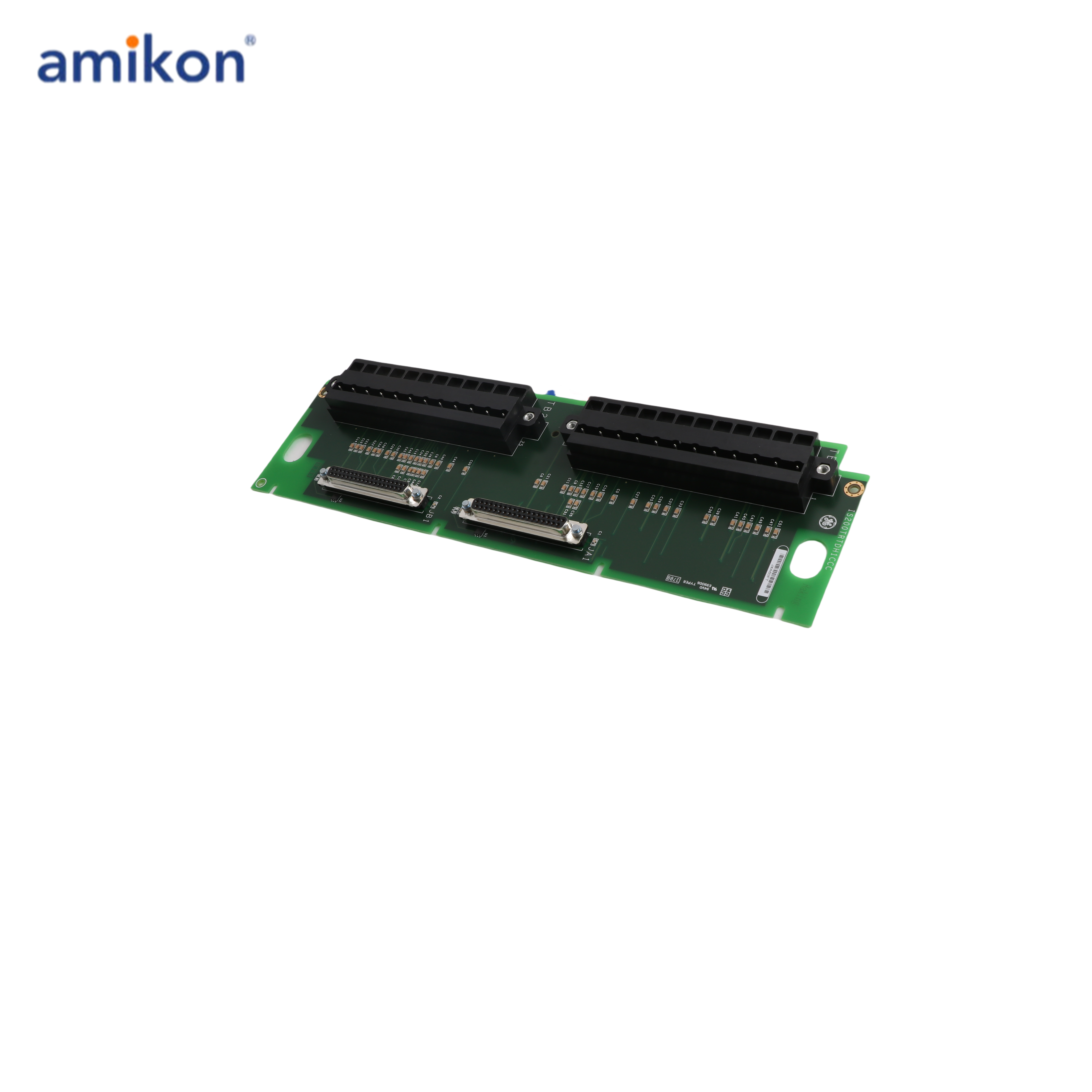

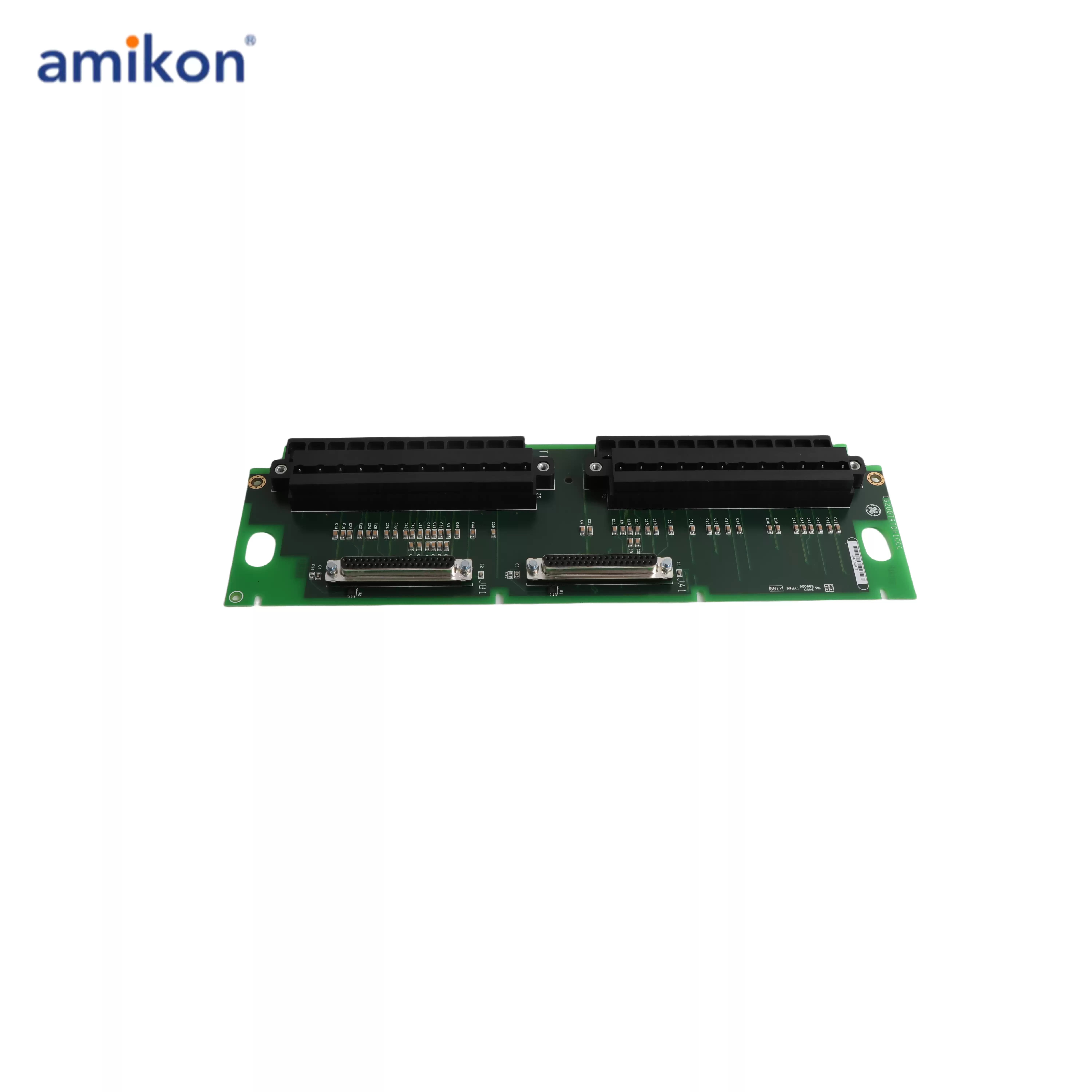

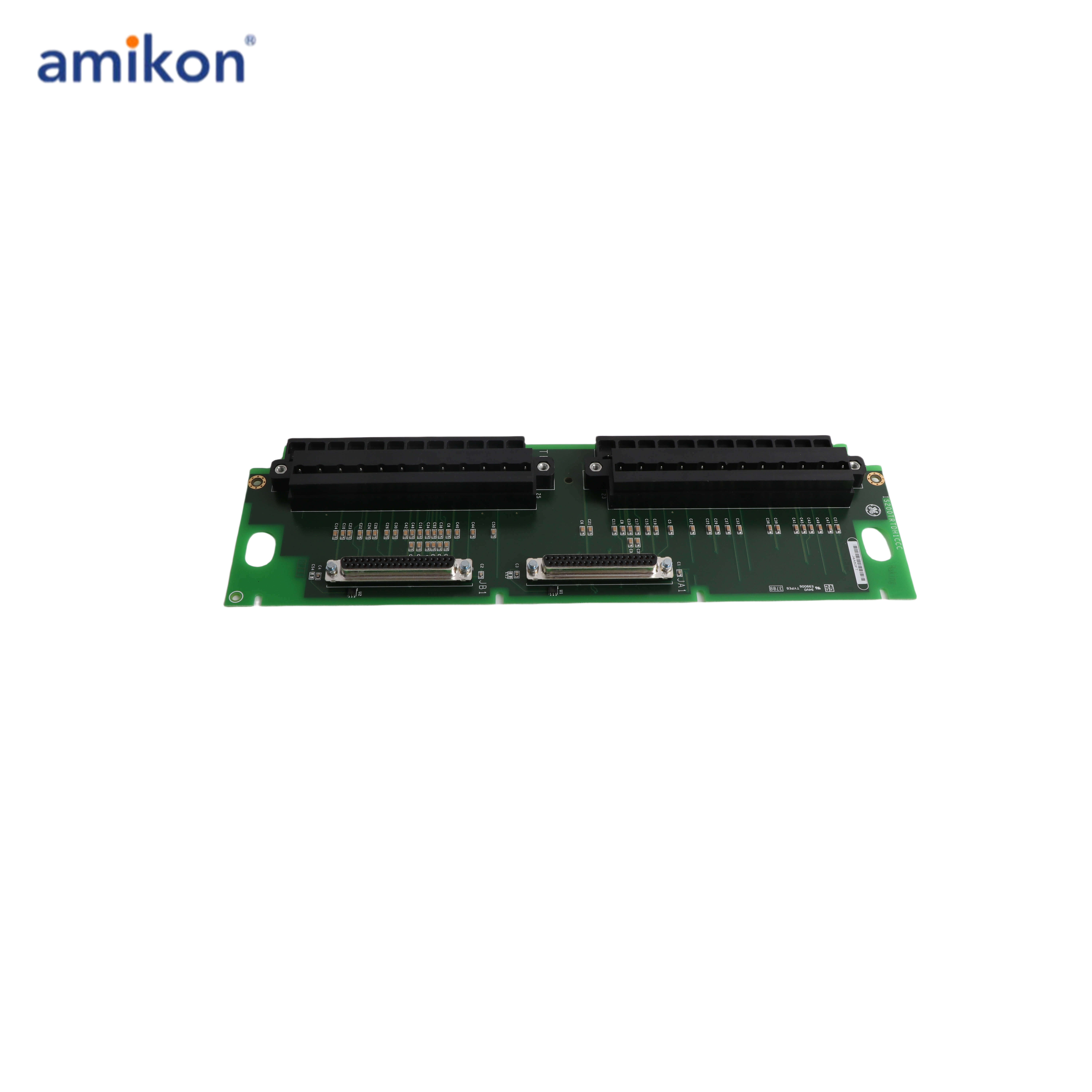

IS200TRTDH1B is an RTD Terminal Card developed by General Electric. The TRTD terminal board supports 16 three-wire RTD inputs. These inputs are connected to two barrier terminal blocks. Surge and high frequency noise are protected by noise suppression circuitry in the inputs. TRTD communicates with one or more I/O processors, which convert input temperature values to digital temperature values and send them to the controller. TRTDH1B is a TMR version that uses six DC-type connectors to fan out signals to three VRTD boards.
Characteristics:
Eight channels per terminal board
Span 0.3532 to 4.054 V
Maximum lead resistance 15 ohm maximum two-way cable resistance
Fault detection - High/low (hardware) limit check, High/low (software) system limit check,
Failed ID chip
IS200TRTDH1B Installation:
Connect the wires for the 16 RTDs to the terminal board's two terminal blocks. Each block is held together with two screws and has 24 terminals that accept wires up to #12 AWG. To the left of each terminal block is a shield terminal strip connected to chassis ground.
It is necessary to use double-shielded wire. The shield terminal strip must be used to terminate all shields. End shields that are located at the end device. H1B provides redundant RTD inputs in a TMR Mark VI control system by fanning the inputs to three VRTD boards in the R, S, and T racks.
The inputs meet the same environmental, resolution, suppression, and function requirements, as well as the same codes as the H1C terminal board.
