Products Detail:
|
Brand
|
General electric
|
|
Part Number
|
IS200TTURH1BCC
|
|
Product Type
|
Turbine Termination Board
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|
The IS200TTURH1BCC includes two jumper switches. These are located near one short board edge. The jumpers allow the board to be set for use with TMR (triple modular redundant) systems or with simplex systems. Each jumper controls how inputs are accepted by the board.

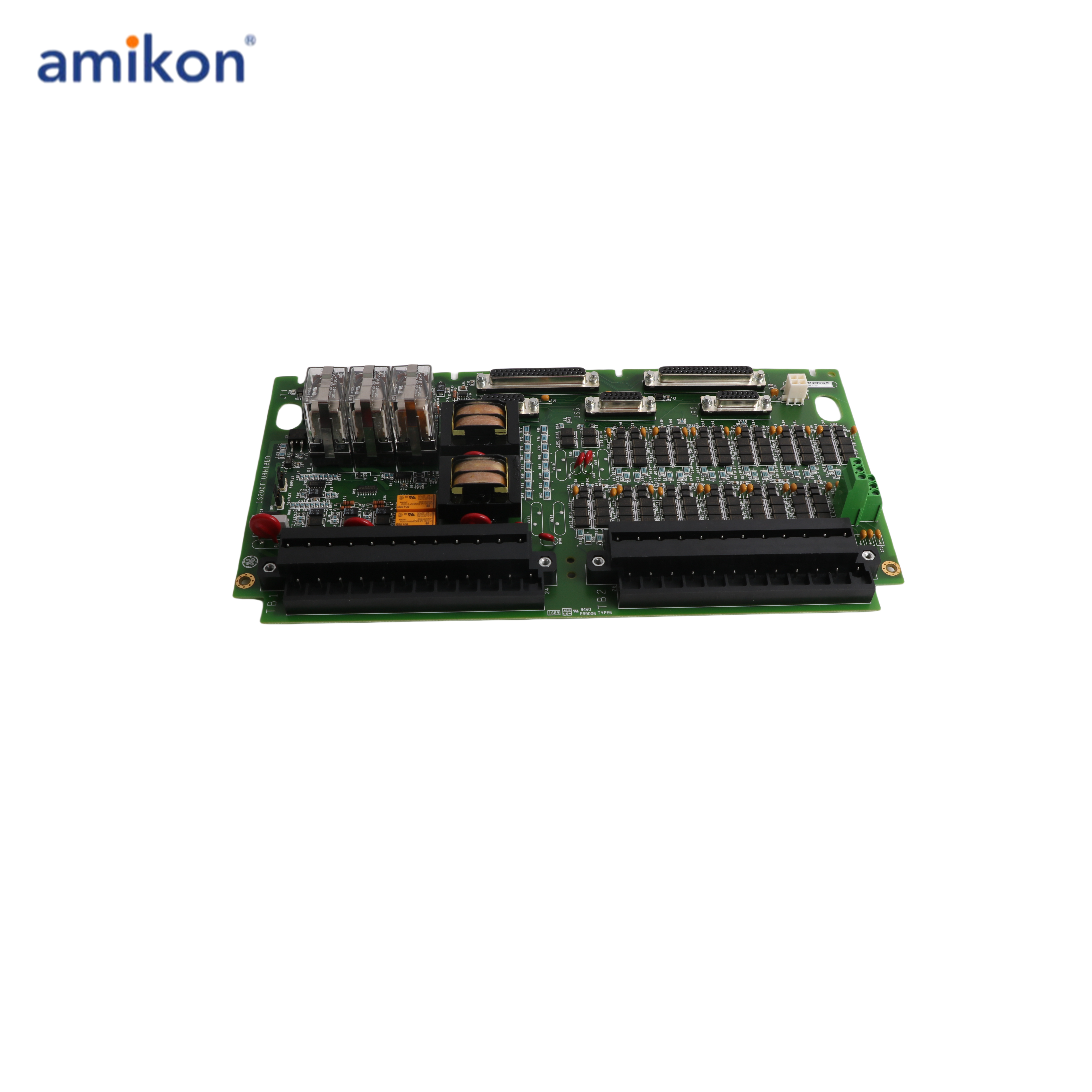

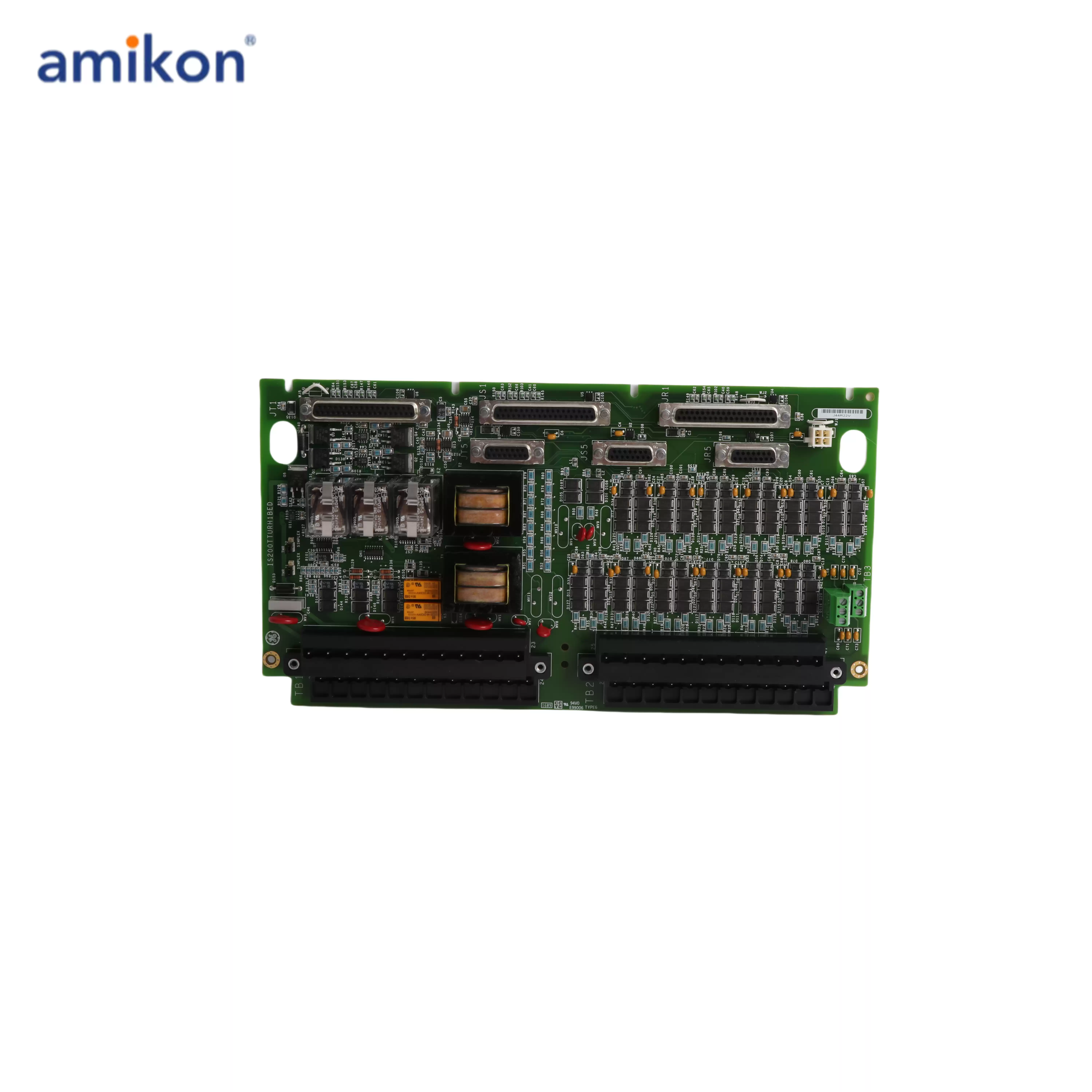

Other board components include relays, transformers, plug connectors, and d-shell connectors. There are both male and female connectors on the board. The d-shell connectors are lined up along one long board edge with male connectors in one line and female in another. Additionally, the board has two terminal strips with screw connectors. Each of these connectors is individually numbered to help with later identification. The board also has variable resistors and traditional resistors, capacitors, and diodes.
SPECIFICATIONS：
Part No.: IS200TTURH1BCC
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Size: 33.0 cm high x 17.8 cm wide
Technology: Surface mount
Temperature Operating: -30 to 65 oC
Number of outputs: Generator breaker coil, 5A at 125 V dc
Power supply voltage: Nominal 125 V dc to breaker coil
MPU pulse rate range: 2 Hz to 20 kHz
MPU pulse rate accuracy: 0.05 percent of reading
Product Type: Primary Protection Input Board
Availability: In Stock
Series: Mark VI
