Products Detail:
|
Brand
|
General electric
|
|
Part Number
|
IS215UCVEH2A
|
|
Product Type
|
VME Controller Card
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|
SPECIFICATIONS:
Part No.: IS215UCVEH2A
Manufacturer: General Electric
Series: Mark VI
Product Type: Processor
Function: VME Controller Card
Operating System: QNX
Microprocessor: Intel Celeron 300 MHz
Memory: 32 MB DRAM
Primary Ethernet Interface (Ethernet 1): Twisted pair 10BaseT/100BaseTX, RJ-45 connector
COM Ports: COM1
Power Requirements: +5 V dc, 6 A typical, 8 A max
Programming: Boolean
Operating temperature: -30 to 65°C
Size: 8.26 cm high x 4.19 cm

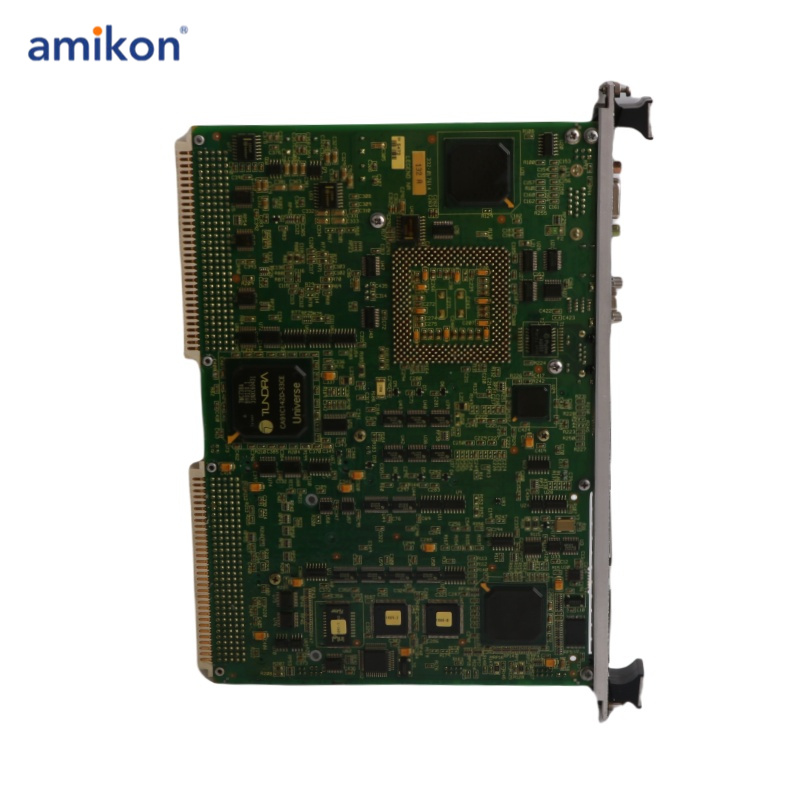

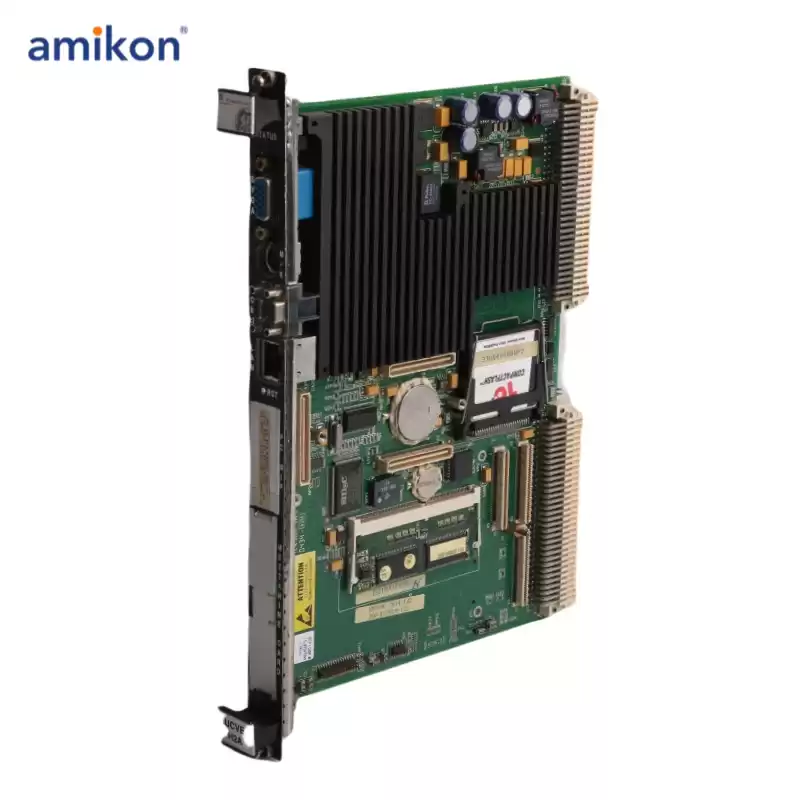

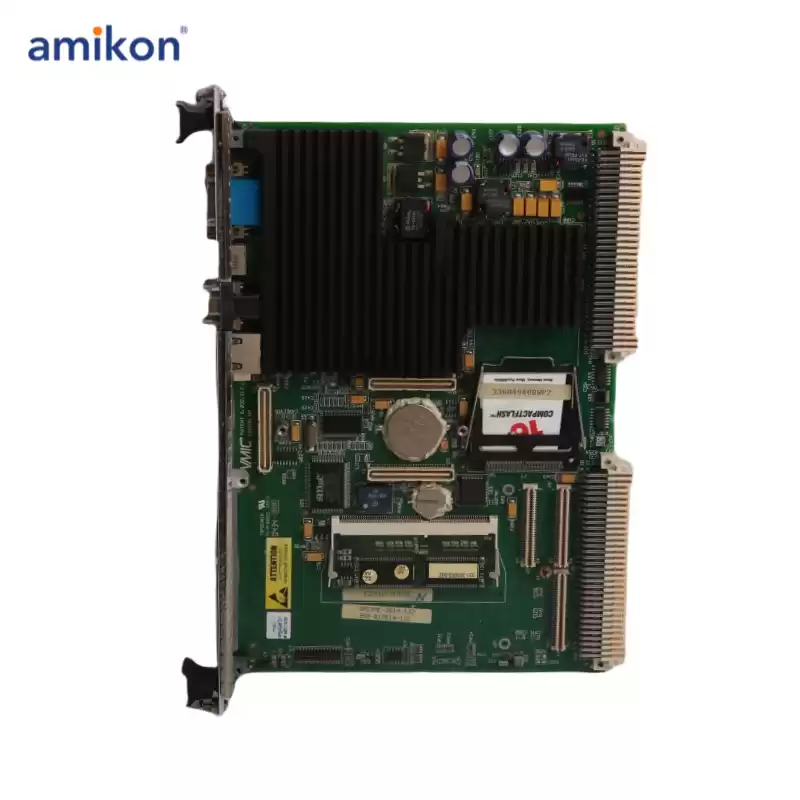

IS215UCVEH2A is a VME Controller Card manufactured and designed by General Electric as part of the Mark VI Series used in GE Speedtronic Control Systems. The UCVEH2 is the standard Mark VI controller. It is a single-slot board using a 300 MHz Intel Celeron processor with 16 or 128 MB of flash memory and 32 MB of DRAM. A single 10BaseT/100BaseTX (RJ-45) Ethernet port provides connectivity to the UDH. The UCVEM_ _ modules have all the features of the UCVEH2 with the addition of supporting additional Ethernet ports and Profibus. Some UCVEM_ _ modules support secondary 10BaseT/100BaseTX Ethernet ports for use on a separate IP logical subnet. The secondary Ethernet port is configured through the toolbox. The controller validates its toolbox configuration against the existing hardware each time the rack is powered up. A separate subnet address allows the controller to uniquely identify an Ethernet port.
