Products Detail:
|
Brand
|
General electric
|
|
Part Number
|
IS200VRTDH1CBA
|
|
Product Type
|
VME RTD Card
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|
About IS200VRTDH1CBA:

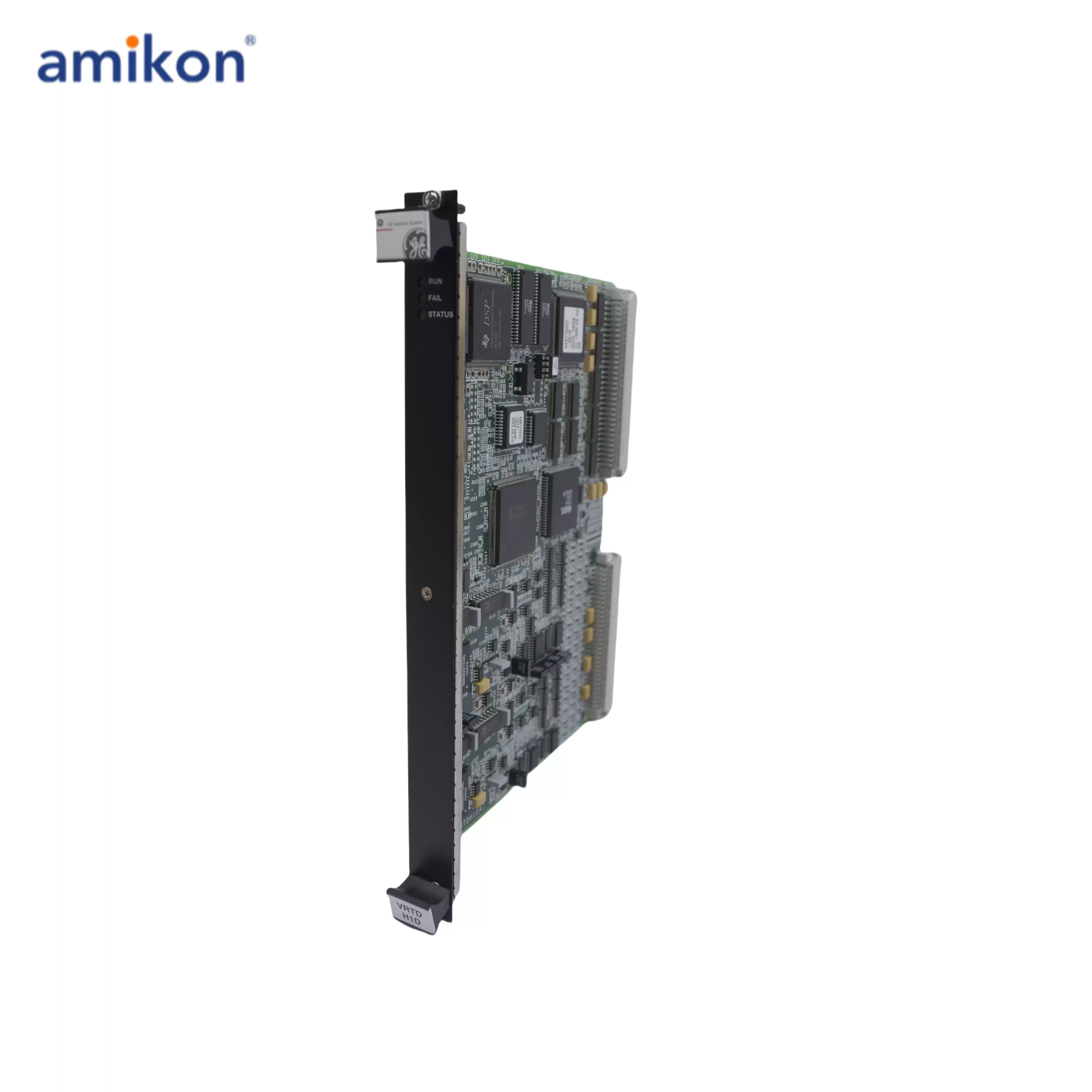

The IS200VRTDH1CBA is built with a front faceplate connected to the PCB using three screw connections. This front faceplate is marked with the manufacturer’s logo and with the board number. It carries three LED components that are labeled Run/Fail/Status.
The IS200VRTDH1CBA is an RTD Input board that excites RTDs (resistance temperature devices) and has the resulting signals return to the board. The IS200VRTDH1CBA converts these inputs to digital temperature values and then transfers these via the VME backplane to the VCMI and then to the controller.

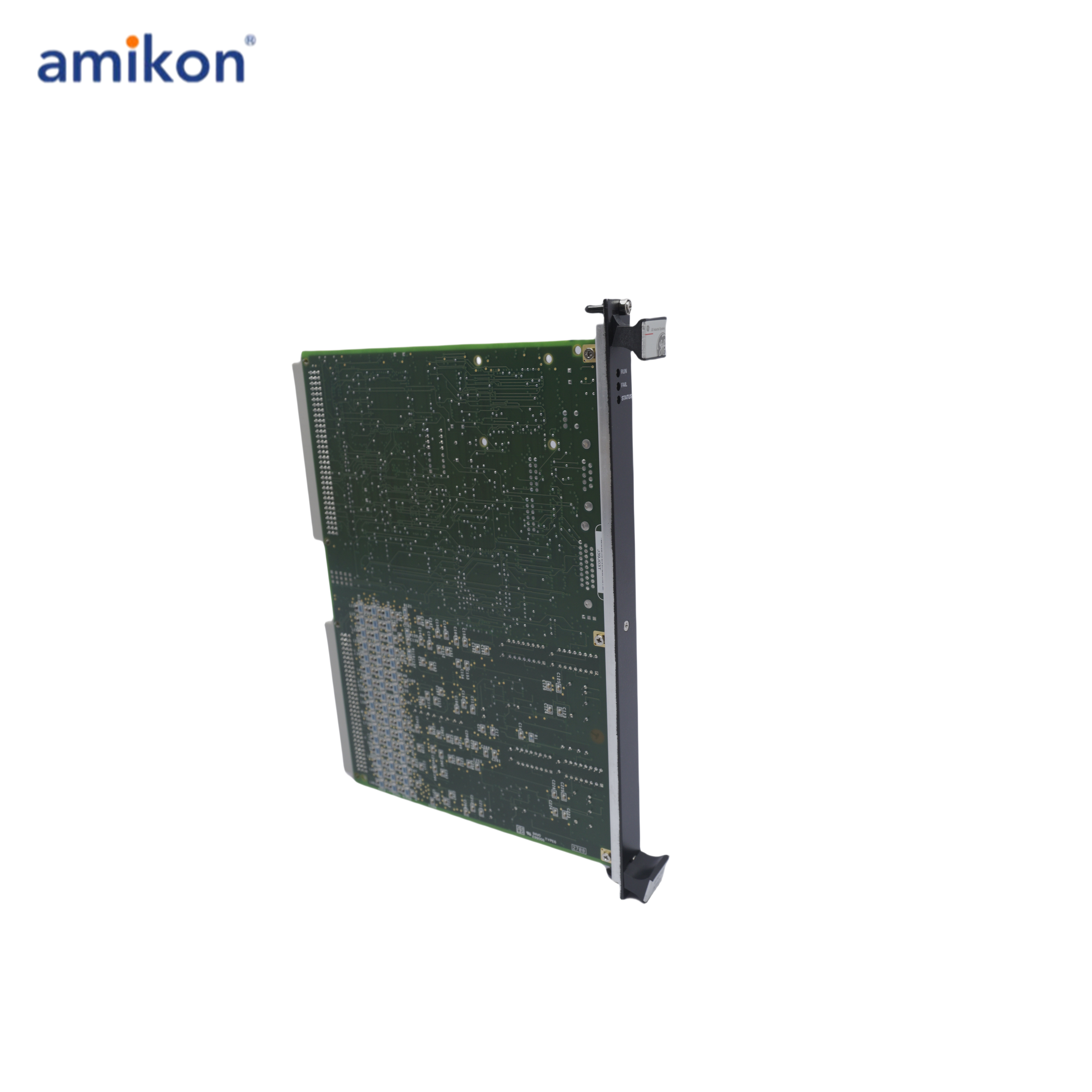

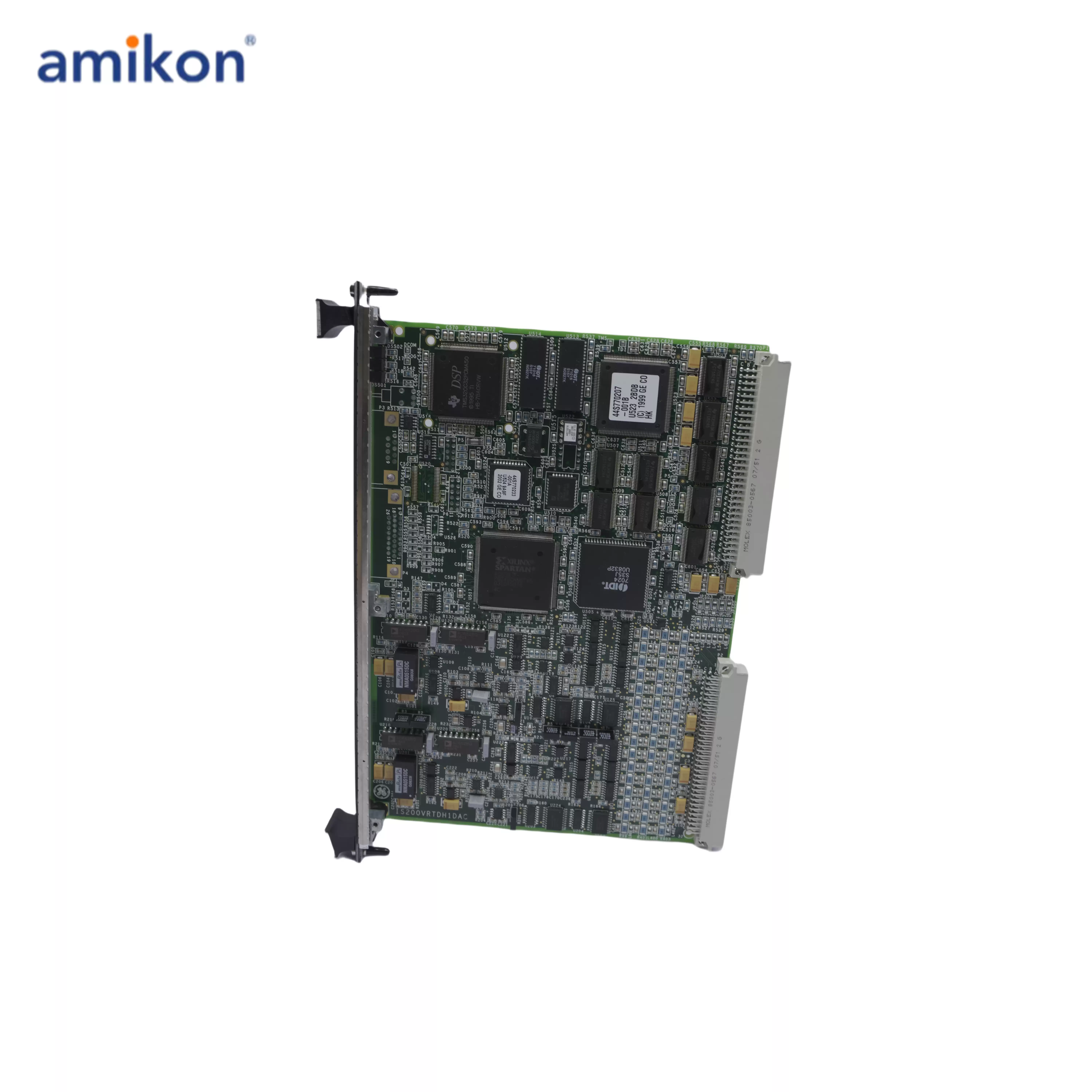

The IS200VRTDH1CBA supplies a 10mA non-continuous excitation current to each RTD through a terminal board. The board is built with two backplane connectors. It is component-dense and includes 200+ capacitors, 200+ integrated circuits, and 400+ resistors. Components are placed on both the front and back of the board. The board also includes inductor beads and other components. The board is marked with reference designators, with the board number, the logo, and with codes like 6BA01, 94V-0, and PC-40802.
SPECIFICATIONS:
Part No.: IS200VRTDH1CBA
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Number of channels: 16 channels
Span: 0.3532 to 4.054 V
A/D converter resolution: 14-bit resolution
Scan Time: Normal scan 250 ms (4 Hz)
Fast scan: 40 ms (25 Hz)
Power consumption: Less than 12 W
Product Type: RTD processor board
Availability: In Stock
Series: Mark VI
