Product Introduction
Gel electrophoresis is a method commonly used in molecular biology to separate macromolecules like DNA, RNA, or proteins based on their size and charge. After running a gel, researchers use a gel documentation system to visualize and analyze the bands that form in the gel.
Product Specifications
|
Product Name
|

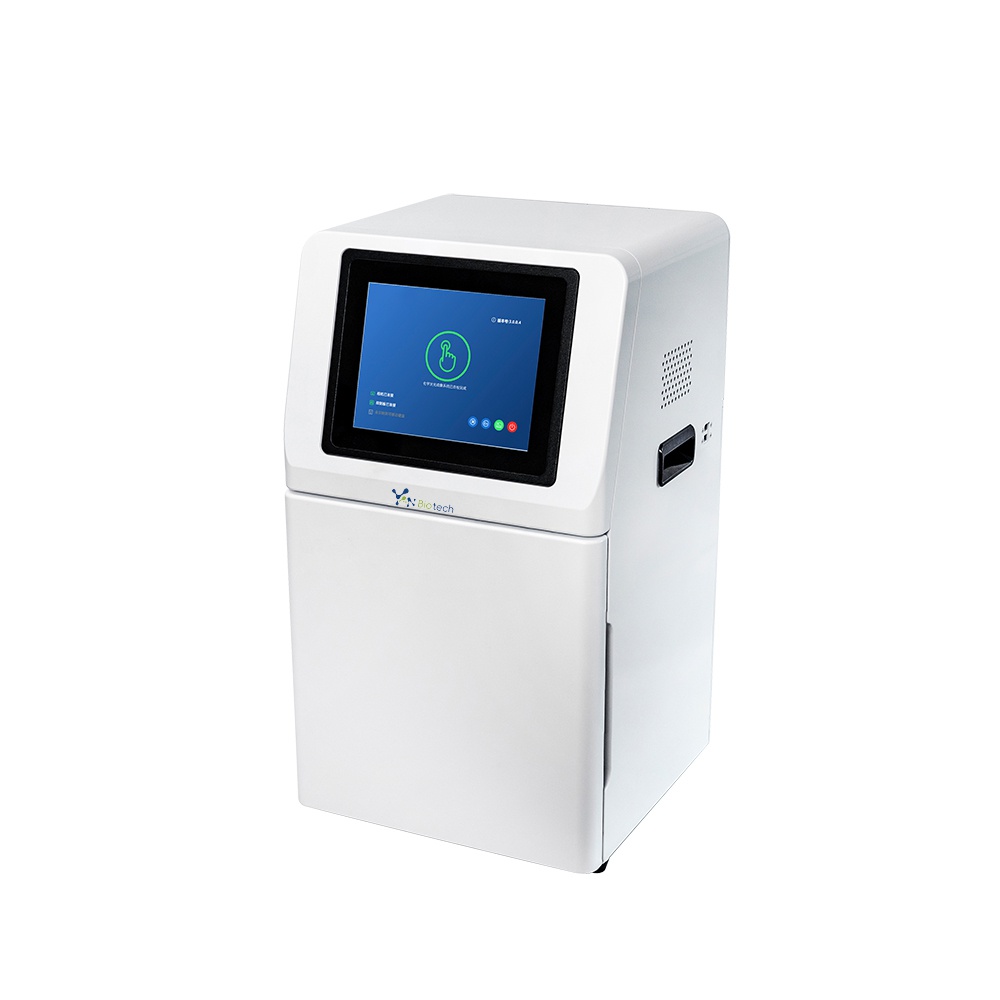

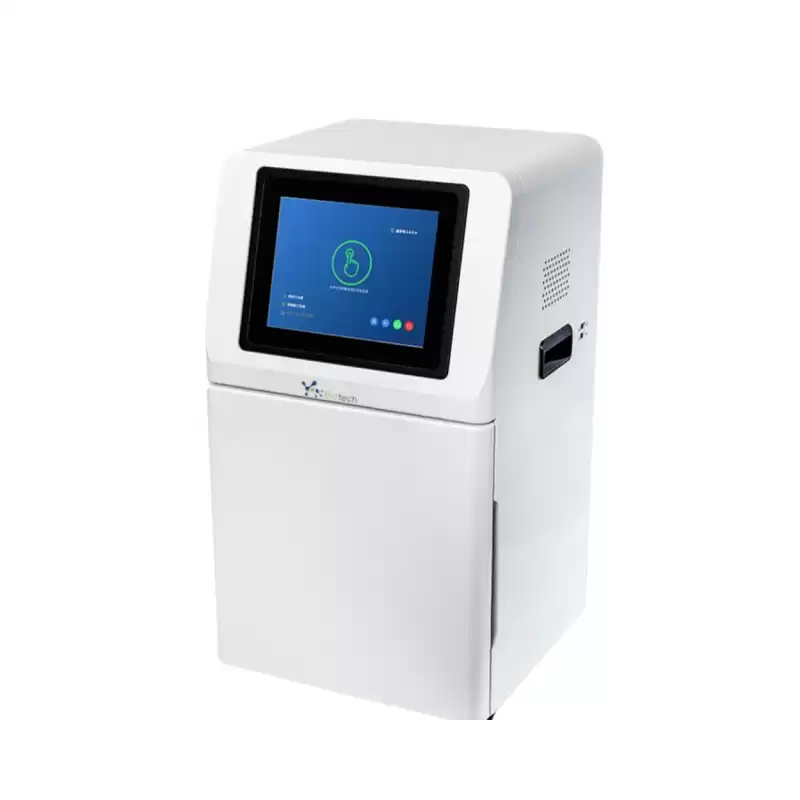

Gel Documentation System
|
|
Cat. No.
|
YB-GD1
|
|
Camera
|
Resolution
|
6.3 MP
|
|
Pixel Size
|
2.4×2.4μm
|
|
Target Size
|
1/1.8”(7.37×4.92mm)
|
|
Sensitivity
|
760mv
|
|
Noise Ratio
|
40.2dB
|
|
Exposure Time
|
17us-15s
|
|
Grayscale
|
8-bit(256 levels)
|
|
Camera Type
|
Black and White Camera
|
|
Lens
|
Aperture
|
F1.0-F16
|
|
Focal Length
|
8-48mm
|
|
Type
|
Motorized zoom lens
|
|
close-up lens
|
2 times
|
|
Filter
|
590/60nm
|
|
Light
|
Bright Field Light Source
|
Falling LED white light source, symmetrical distribution on both sides
|
|
UV Light Source
|
310nm LED array with uniform transmission illumination
|
|
Light Isolation
|
Fully light-sealed, isolates environmental light
|
|
Dark Box
|
Door Control
|
Door control sensor can control the on/off of the bright field light source
|
|
Field of View
|
Effective field of view is140×140 mm
|
|
Gel Cutting
|
After opening the door,the UV light source can be pulled out cutting,in conjunction with a UV protection shield
|
|
Software Functions
|
Camera Settings
|
Adjust contrast, exposure time, and gain
|
|
Lens adjustment
|
Select the adjustment range: coarse adjustment, fine adjustment, super fine adjustment,
Lens: Zoom, focus, aperture adjustment
|
|
Picture cropping
|
Cut the desired portion of the strip
|
|
Industrial Computer
|
10.4 inches, 1024×768, Windows operating system
|
|
External Interfaces
|
USB 3.0×2
|
|
Operating Voltage
|
100 V - 240 V
|
|
Power
|
100W
|
|
Net Weight
|
30kg
|
|
Dimensions
|
400×371×700mm
|
Key Features
High Sensitivity: 16-bit high sensitivity digital camera that can detect low concentrations of DNA/RNA..
High Resolution Autofocus Lens: Present clear image details.
Modular design, Application can be Flexibly Expanded: White light transmittance module and blue light transmittance module can be selected according to experimental requirements..
Software is intuitive, Friendly and Functional: The electrophoretic images and analysis results can be obtained accurately and quickly, and the experimental efficiency can be improved.
Applications
- DNA Analysis: Used to check the size and quantity of DNA fragments after PCR, restriction enzyme digestion, or other manipulations.
- RNA Analysis: Helps in checking the integrity and quality of RNA samples.
- Protein Analysis: For analyzing protein samples after SDS-PAGE or other protein electrophoresis techniques.
- Quality Control: In many molecular biology experiments, GDS is crucial for quality control of nucleic acids and proteins.
FAQ
Q. How to operate gel cutting?
A.
1.Open the instrument door, the UV light source will automatically turn off.
2. Pull out the drawer of the UV light source, place the UV protective shield diagonally between the drawer and the instrument to shield the eyes from the UV light source.
Q. How to operate capturing process?
A.
1.Select automatic exposure, default contrast is 0, default exposure is 350, and default gain is 500.
2. For nucleic acid gel: Click on the UV light, turn on the UV light source, then the bands can be seen in the window.
For protein gel: Click on the illumination, turn on the bright field light source, then the bands can be seen in the window.
3. Adjust the "zoom" to fill the field of view with bands, or adjust to the experimenter 's desired field of view.
4. Adjust the "aperture," first adjust to the maximum, then click " — " twice for fine adjustment, and the aperture is set to 3 .
5. Adjust the "focus " to make the image as clear as possible; in rare cases, if the results of fine adjustment and super-fine adjustment are still not clear enough, adjust to reduce the "aperture," then focus to obtain the clearest image.
6. Enter the file path and file name, click "Save Image" to save the current image.
