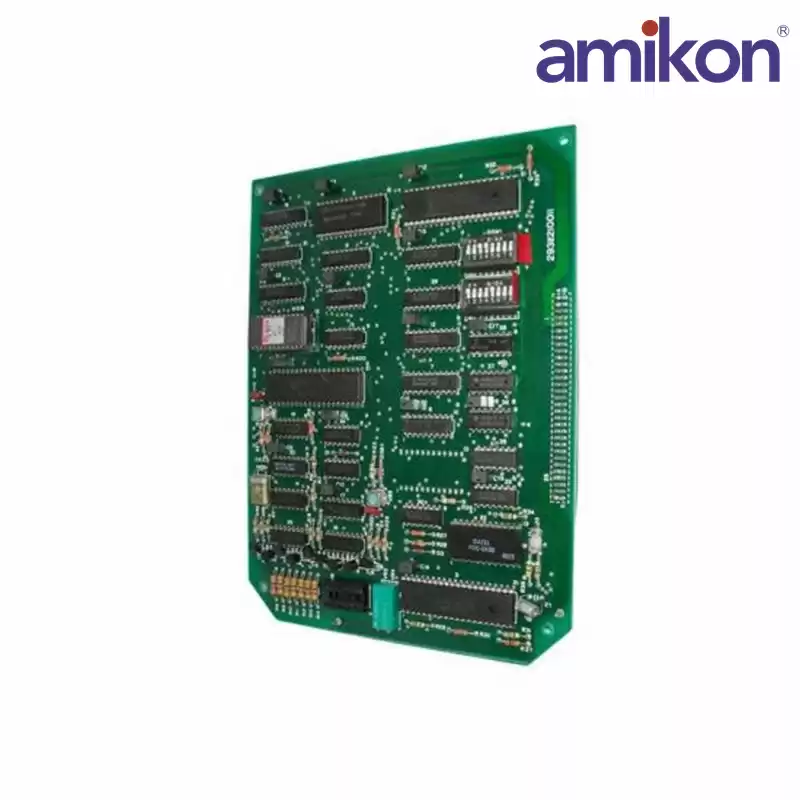

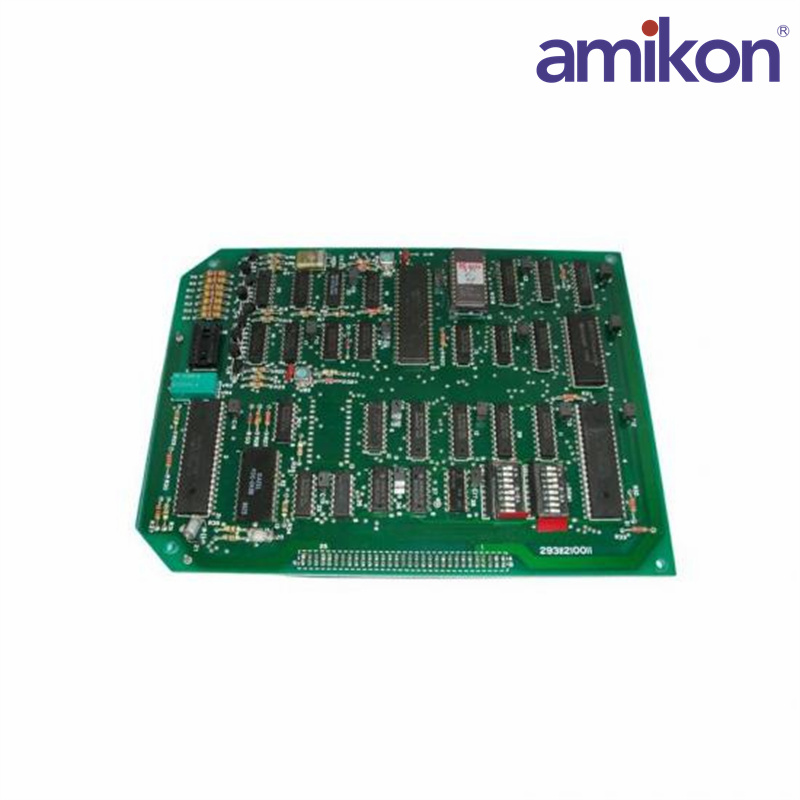

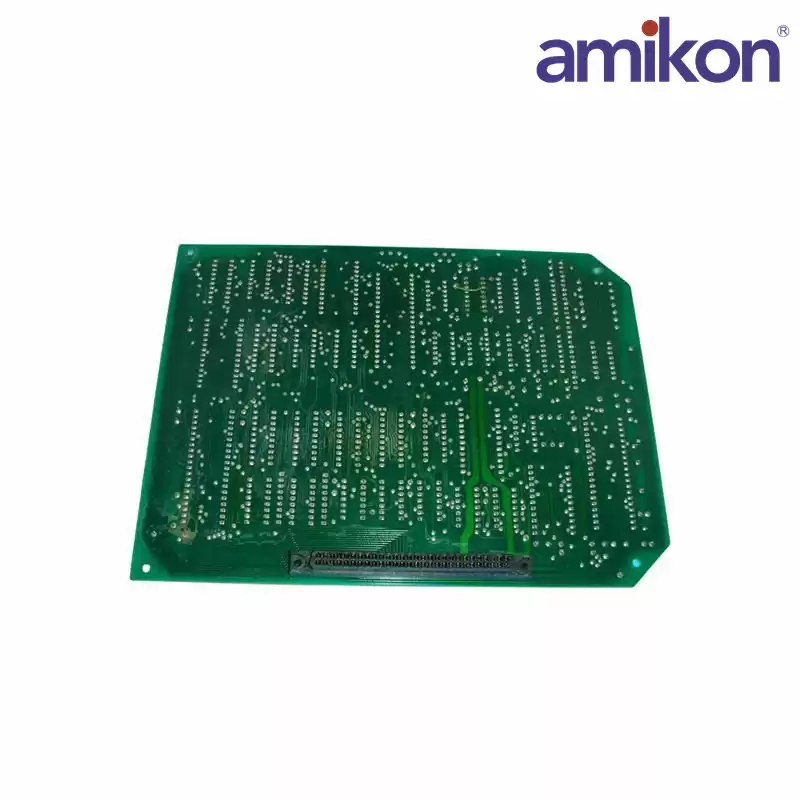

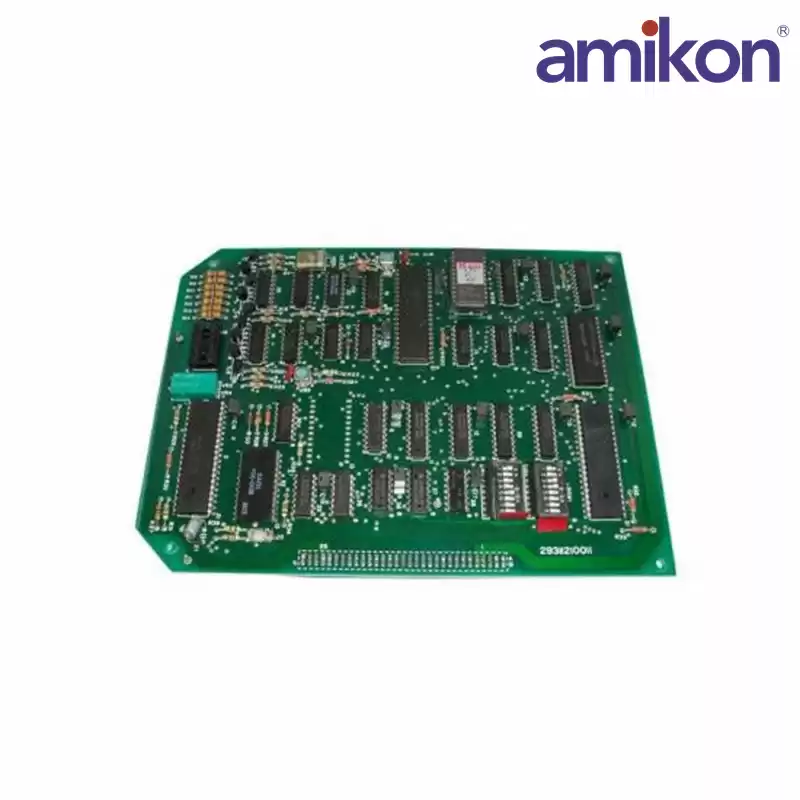

General Electric 20X4584-10A 20X4584A4 20X4584A4SR Control Board
|
|
Dimensions:
|
3.5cmx13cmx13.5cm
|
Weight:
|
0.32kg
|
|
Input Current:
|
4-28mA
|
Voltage :
|
20-45V
|
|
20X4584-10A 20X4584A4 20X4584A4SR
|
The 20X4584-10A 20X4584A4 20X4584A4SR is Control Board.Configuration consists of a servo amp, an AC line filter, connectors, fuses, and power transformer modules.Connected to a CNC or similar host module through the 128 DI and 128 DO of the I/O link.
The I/O link used by the Fanuc 20X4584-10A communicates with the interface area which is split into two sectors.One of the interface areas is the signal area.The signal area is where the reset and alarm signals are located.The second interface area is the command code area. The command code area moves commands and monitors status command code.
|
