Technical Specifications for 531X124MSDAJG2
|
Manufacturer
|
General Electric
|
|
Condition
|
100% New Original
|
|
Brand
|
General Electric
|
Rated Voltage
|
240VAC
|
|
Part Number
|
531X124MSDAJG2
|
Input Voltage Range
|
0-265 VAC
|
|
Product Name
|
POWER SUPPLY CARD
|
Input Current
|
8.2 mA per point
|
|
Manufacture Year
|
2021
|
Input Impedance
|
8.6K typical
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|
About 531X124MSDAJG2
|

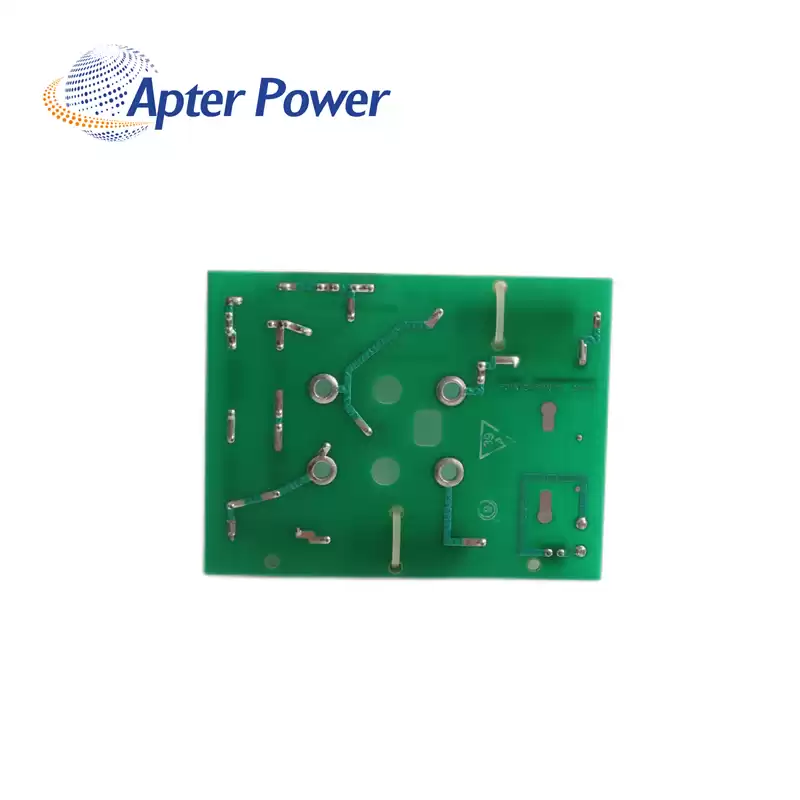

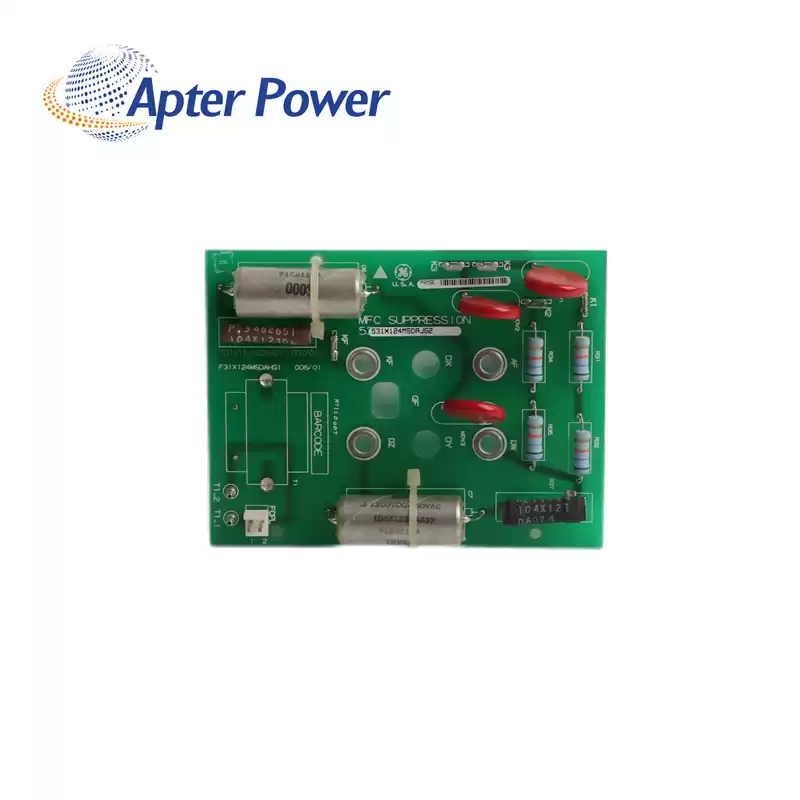

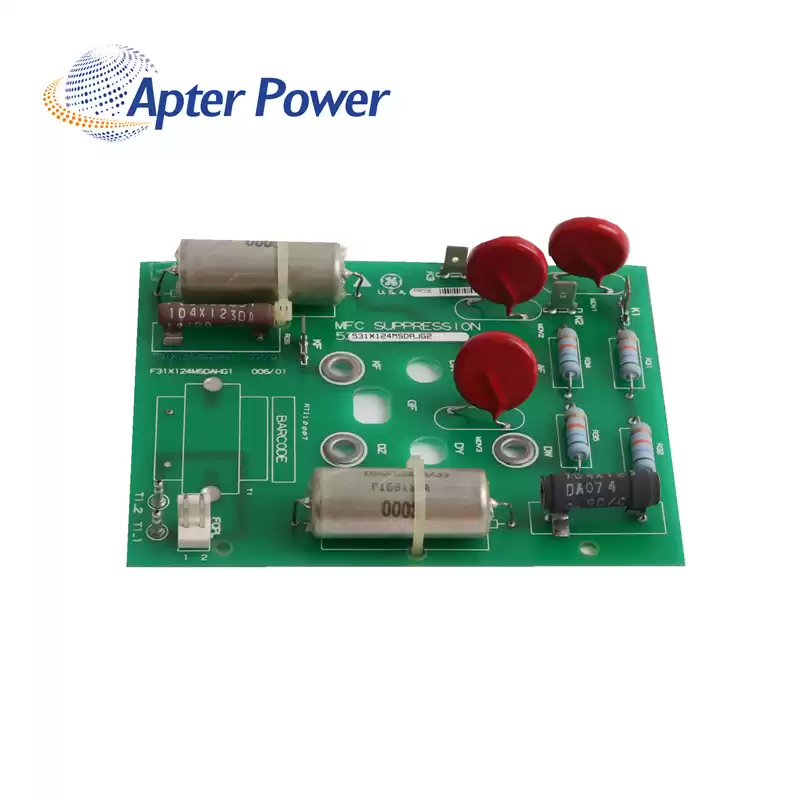

The 531X124MSDAJG2 is an MFC Suppression Board. This is only one of several versions of this board. The 531X124MSDAJG2 is a small, rectangular board that is built with multiple cutouts and drill holes. The center of the board has four round cutouts that are ringed with a conductive material; each of these is labeled as AF, DW, DZ, and KF. There are two additional round cutouts and one oblong cutout. These are marked DX, DY, and GF.
The 531X124MSDAJG2 is a smaller board component manufactured by GE to fit into their general purpose drive systems like the DC-300.The 531X124MSDAJG2 has three metal oxide varistors. MOVs are used for over-voltage protection from transient surges using voltage-clamping, in the same way a Zener diode might.
The board has four stab-on connectors that are located along the top edge of the board. These are labeled K1 through K4. The board has a single two-pin header connector and two terminal pin connectors. The terminal pin connectors are located in the bottom left corner.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
